Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1546N |

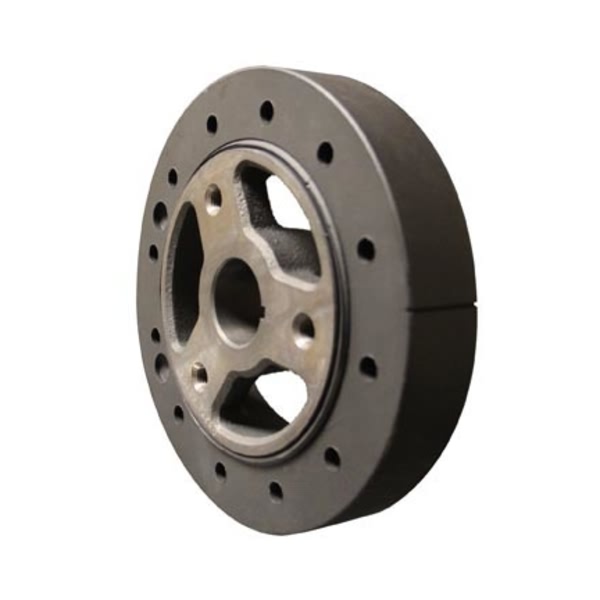

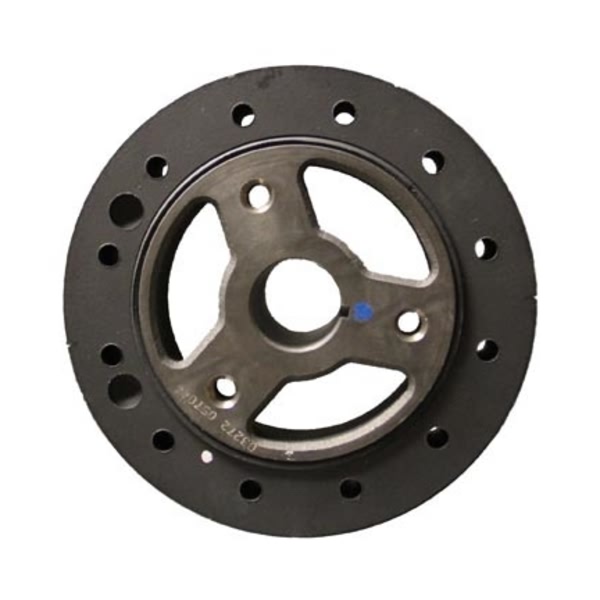

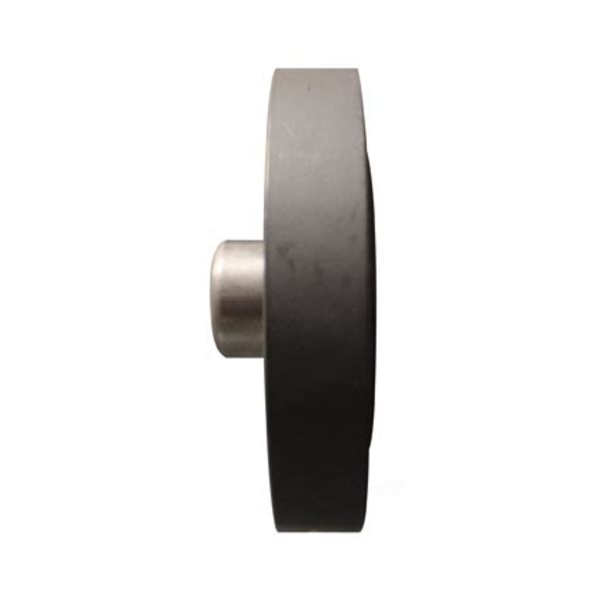

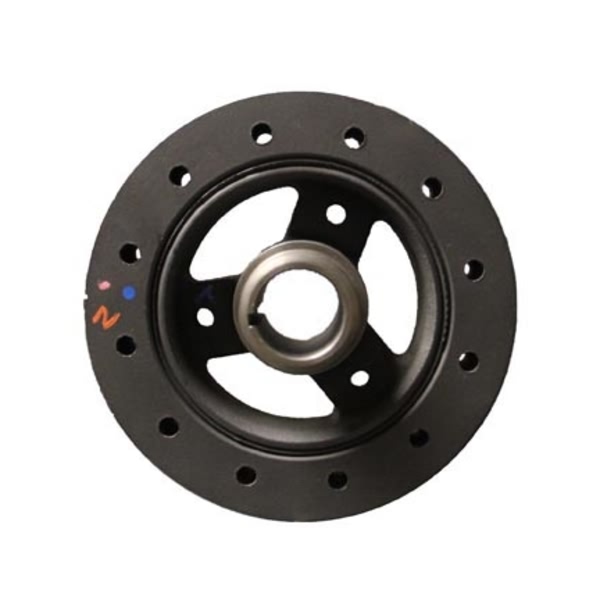

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 3 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.245 or 31.60 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.763 or 44.78 |
Number of Integrated Pulleys | 0 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 171.50 or 6.752 |
Overall Width | 2.245 or 57.00 |
Ring Width | 1.189 or 30.18 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1996-1999 Chevrolet C1500 | All Trims | 8 Cyl 5.0L |
1996-1999 Chevrolet C2500 | All Trims | 8 Cyl 5.0L |
1996-2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L |
1996-2002 Chevrolet Express 2500 | All Trims | 8 Cyl 5.0L |
1996-1999 Chevrolet K1500 | All Trims | 8 Cyl 5.0L |
1997-1998 Chevrolet K2500 | All Trims | 8 Cyl 5.0L |
1996-1999 GMC C1500 | All Trims | 8 Cyl 5.0L |
1996-1998 GMC C2500 | All Trims | 8 Cyl 5.0L |
1996-1999 GMC K1500 | All Trims | 8 Cyl 5.0L |
1998 GMC K2500 | All Trims | 8 Cyl 5.0L |
