Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1541N |

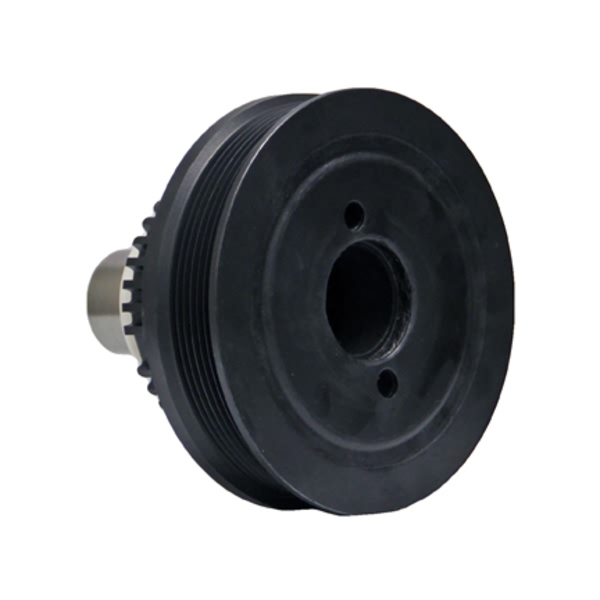

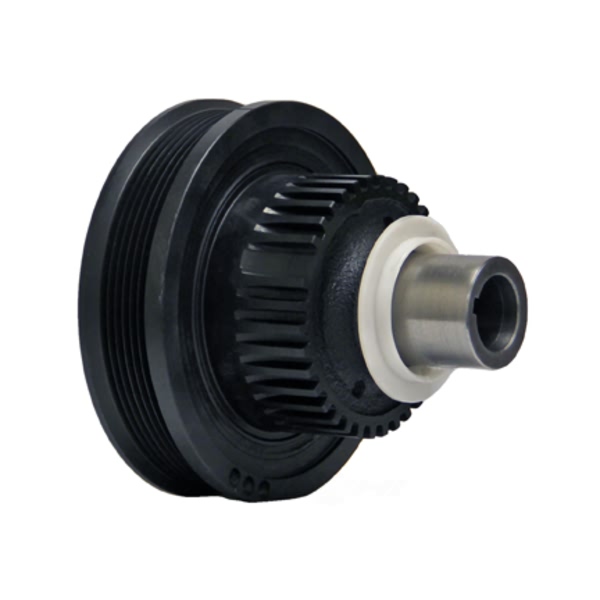

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.102 or 27.97 |
Crank Trigger/Exciter Plate | Yes |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.652 or 41.95 |
Number of Integrated Pulleys | 1 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 155.00 or 6.103 |
Overall Width | 135.00 or 5.315 |
Pulley 1 Number Of Grooves | 6 |
Pulley 1 Outside Diameter | 146.500 or 5.768 |
Pulley 1 Type | Serpentine |
Ring Width | 1.556 or 39.50 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2003 Ford E-150 | All Trims | 6 Cyl 4.2L |
2003 Ford E-150 Club Wagon | All Trims | 6 Cyl 4.2L |
2001-2002 Ford E-150 Econoline | All Trims | 6 Cyl 4.2L |
2001-2002 Ford E-150 Econoline Club Wagon | All Trims | 6 Cyl 4.2L |
2003 Ford E-250 | All Trims | 6 Cyl 4.2L |
2001-2002 Ford E-250 Econoline | All Trims | 6 Cyl 4.2L |
1997-2010 Ford Explorer | All Trims | 6 Cyl 4.0L |
2001-2003 Ford Explorer Sport | All Trims | All Engines |
2001-2005 Ford Explorer Sport Trac | All Trims | All Engines |
2007-2010 Ford Explorer Sport Trac | All Trims | 6 Cyl 4.0L |
