Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1533N |

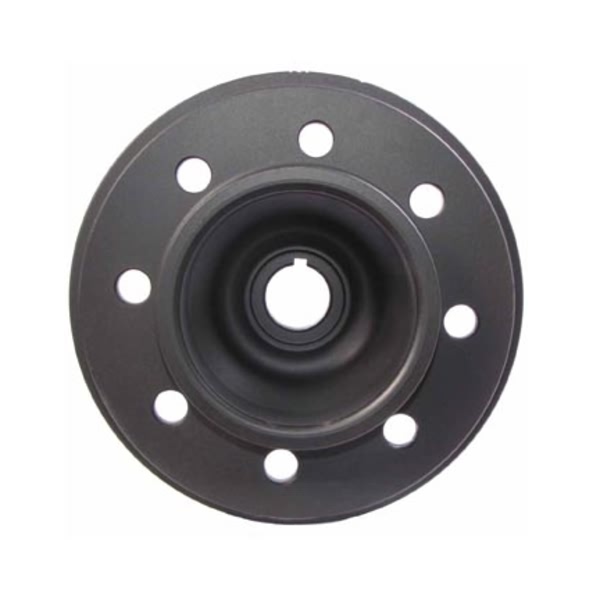

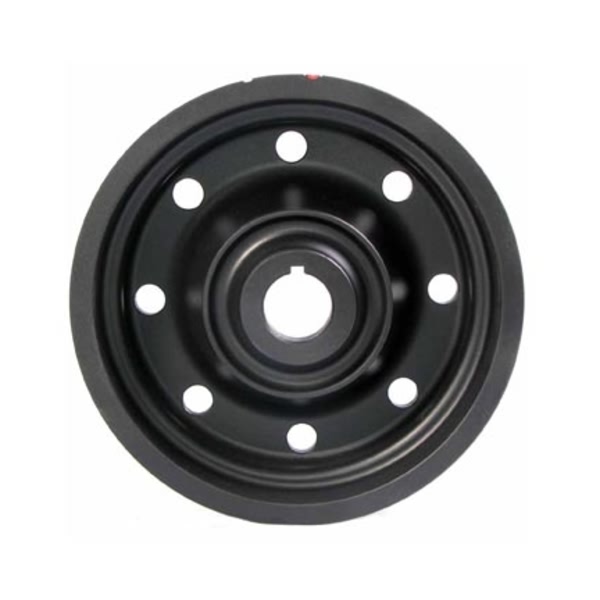

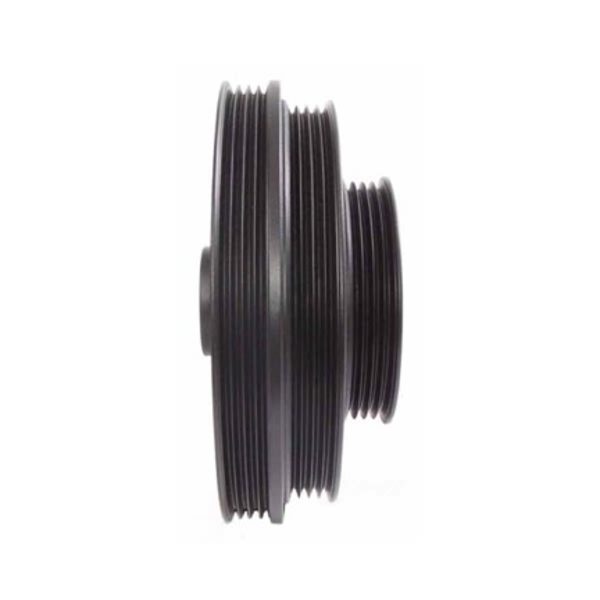

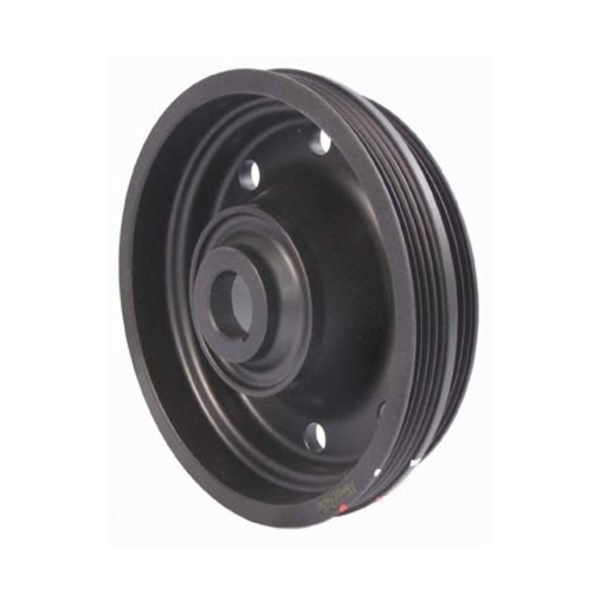

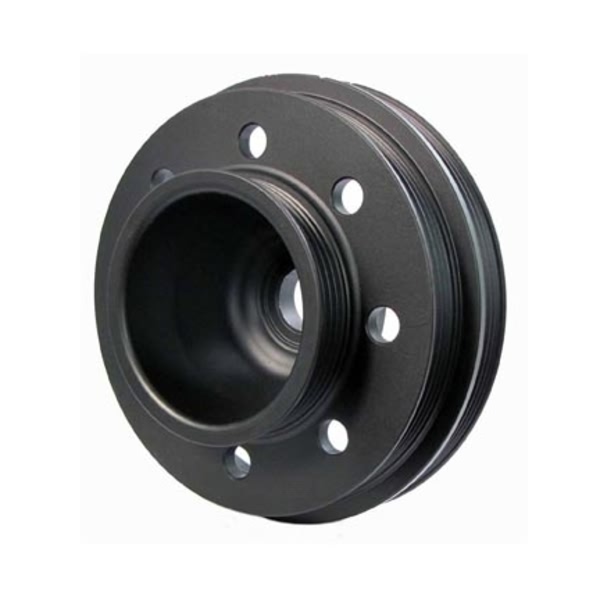

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 0 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 0.945 or 24.00 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 3 |
Outer Ring Material | Steel |
Overall Outside Diameter | 162.00 or 6.378 |
Overall Width | 2.688 or 68.25 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 3.465 or 88.000 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 4 |
Pulley 2 Outside Diameter | 144.000 or 5.670 |
Pulley 2 Type | Serpentine |
Ring Width | 2.688 or 68.25 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1992-1995 Honda Civic | All Trims | 4 Cyl 1.5L |
1993 Honda Civic | All Trims | 4 Cyl 1.6L |
1993 Honda Civic del Sol | All Trims | 4 Cyl 1.6L |
1993-1995 Honda Civic del Sol | All Trims | 4 Cyl 1.5L |
