Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1527N |

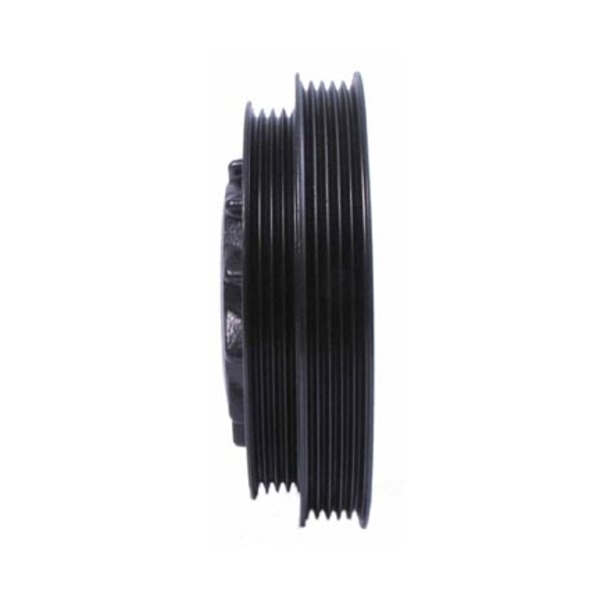

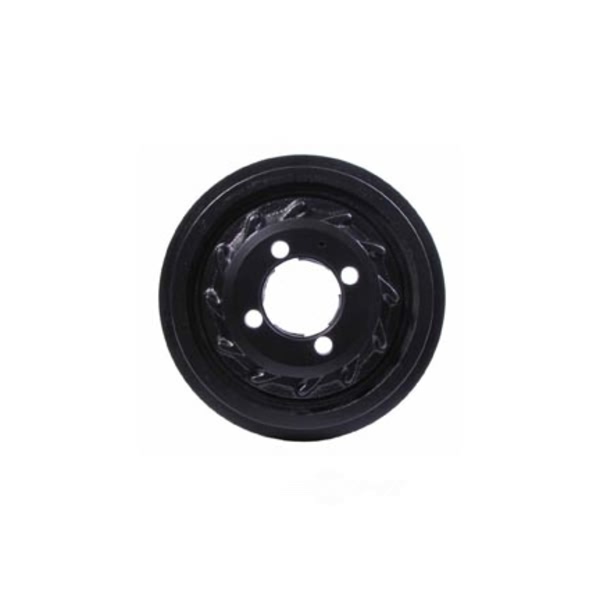

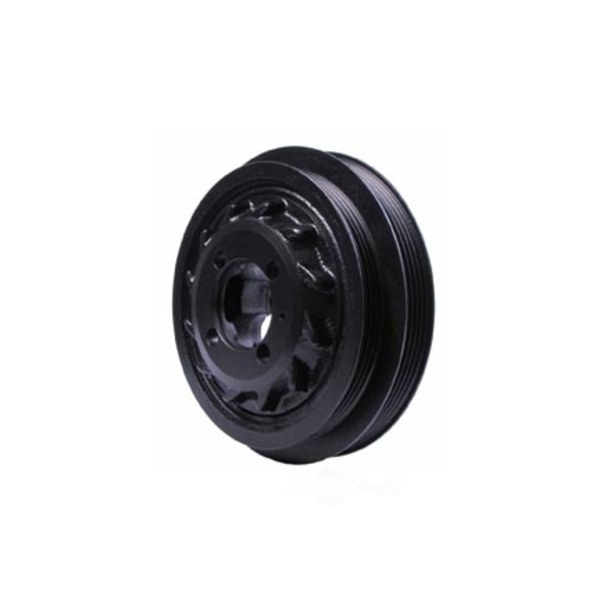

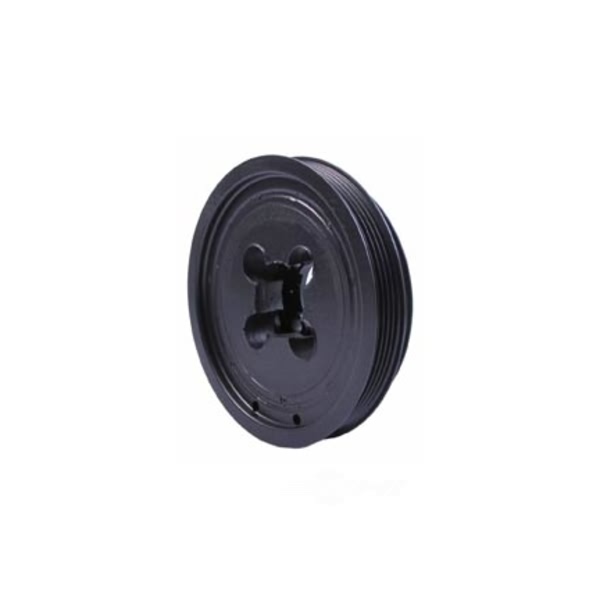

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 4 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.695 or 43.05 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 156.00 or 6.142 |
Overall Width | 1.839 or 46.70 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 132.000 or 5.197 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 150.000 or 5.906 |
Pulley 2 Type | Serpentine |
Ring Width | 1.515 or 38.48 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2001-2006 Hyundai Santa Fe | All Trims | 4 Cyl 2.4L |
1999-2005 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2001-2006 Kia Magentis | All Trims | 4 Cyl 2.4L |
2001-2006 Kia Optima | All Trims | 4 Cyl 2.4L |
