Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1514N |

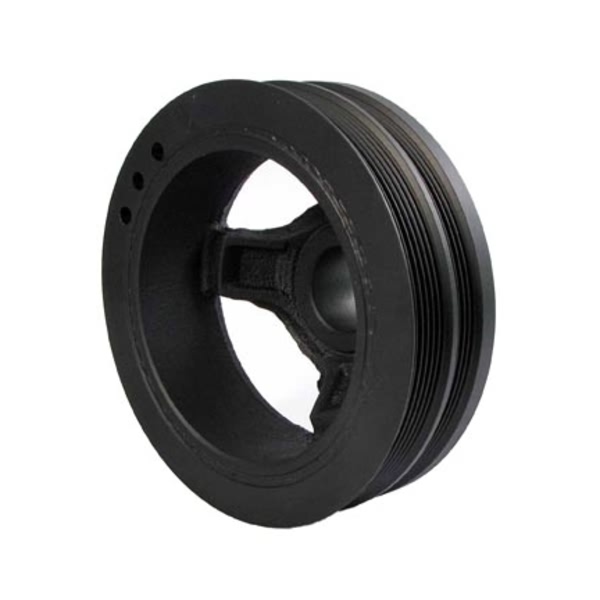

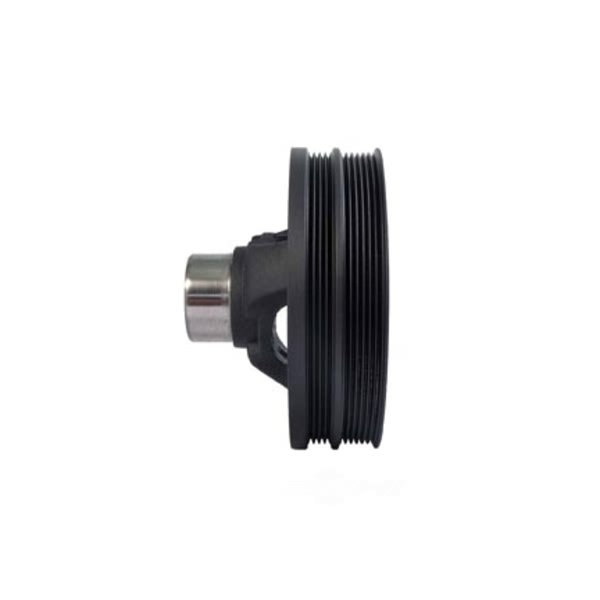

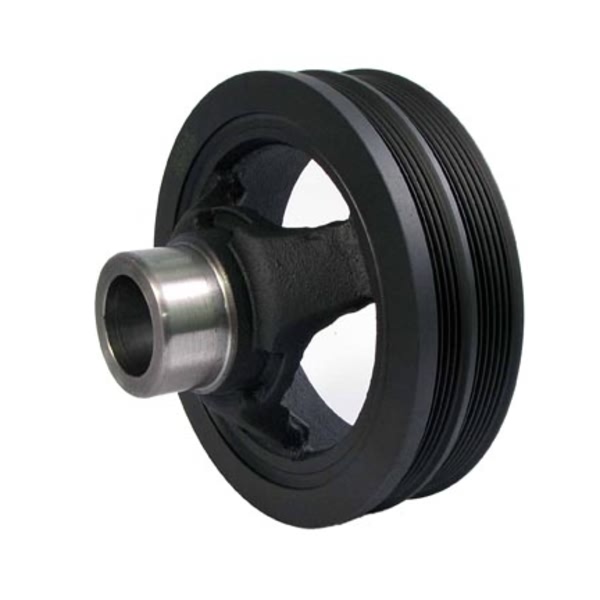

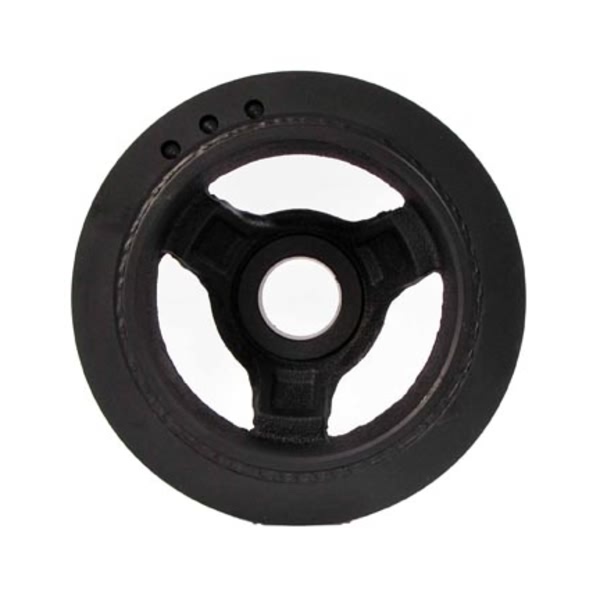

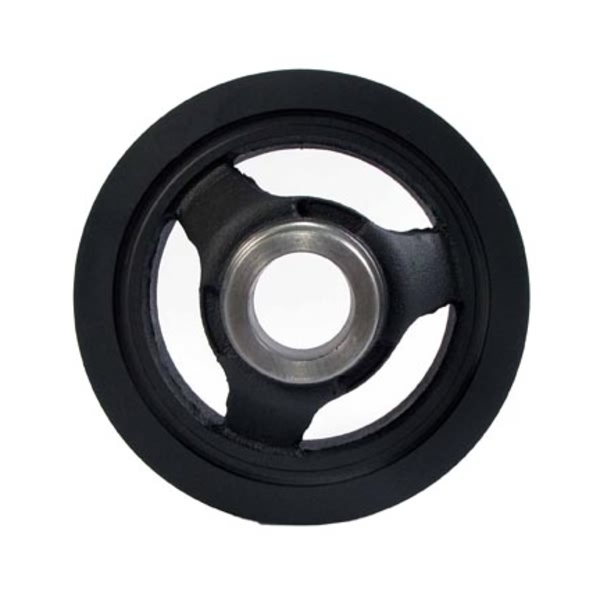

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 0 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.599 or 40.60 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 2.332 or 59.22 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 196.80 or 7.749 |
Overall Width | 122.50 or 4.823 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 191.000 or 7.520 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 6 |
Pulley 2 Outside Diameter | 191.000 or 7.520 |
Pulley 2 Type | Serpentine |
Ring Width | 2.204 or 55.98 |
Timing Marks | No |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2002-2006 Chevrolet Avalanche 2500 | All Trims | All Engines |
2001-2007 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 8.1L |
2007 Chevrolet Silverado 2500 HD Classic | All Trims | 8 Cyl 8.1L |
2001-2006 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L |
2007 Chevrolet Silverado 3500 Classic | All Trims | 8 Cyl 8.1L |
2001-2006 Chevrolet Suburban 2500 | All Trims | 8 Cyl 8.1L |
2001-2007 GMC Sierra 2500 HD | All Trims | 8 Cyl 8.1L |
2007 GMC Sierra 2500 HD Classic | All Trims | 8 Cyl 8.1L |
2001-2006 GMC Sierra 3500 | All Trims | 8 Cyl 8.1L |
2007 GMC Sierra 3500 Classic | All Trims | 8 Cyl 8.1L |
