Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1347N |

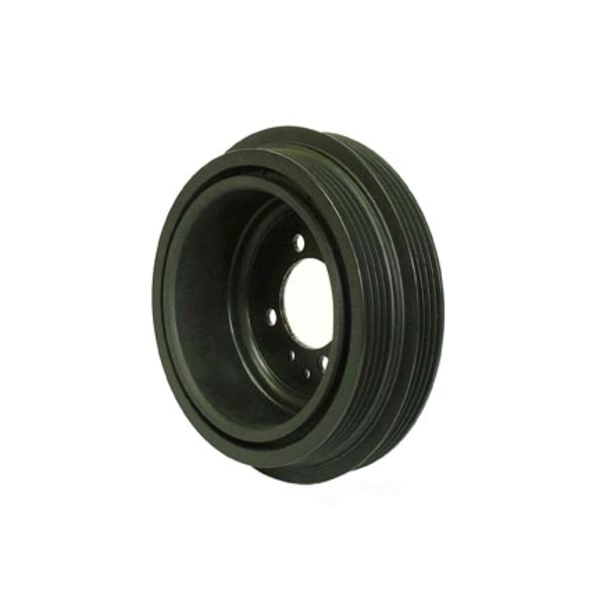

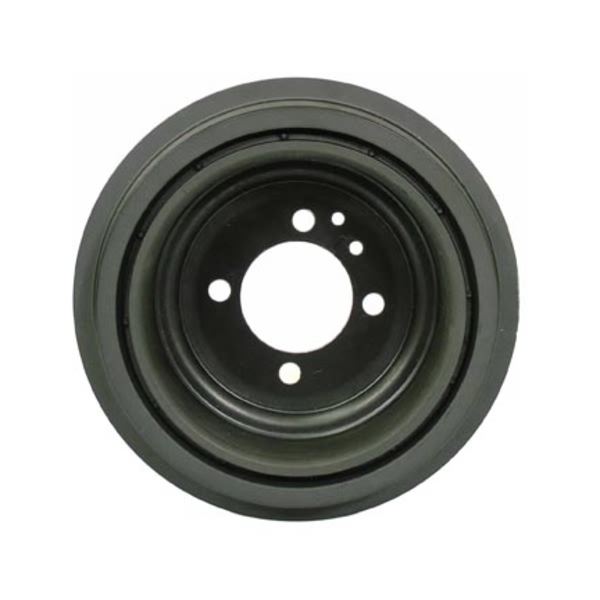

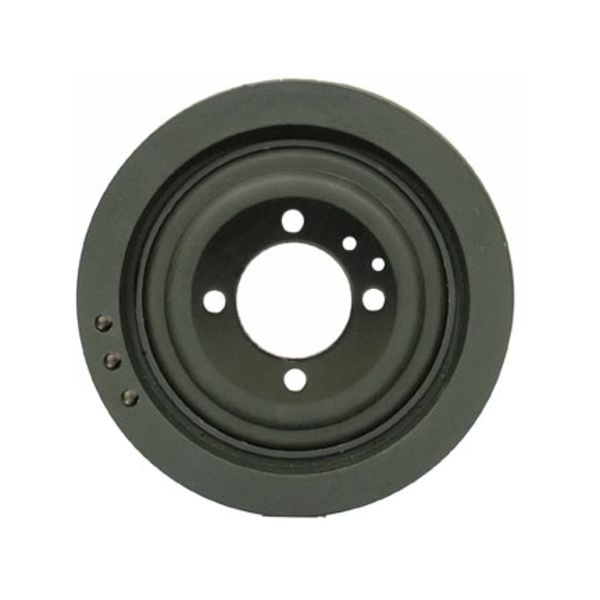

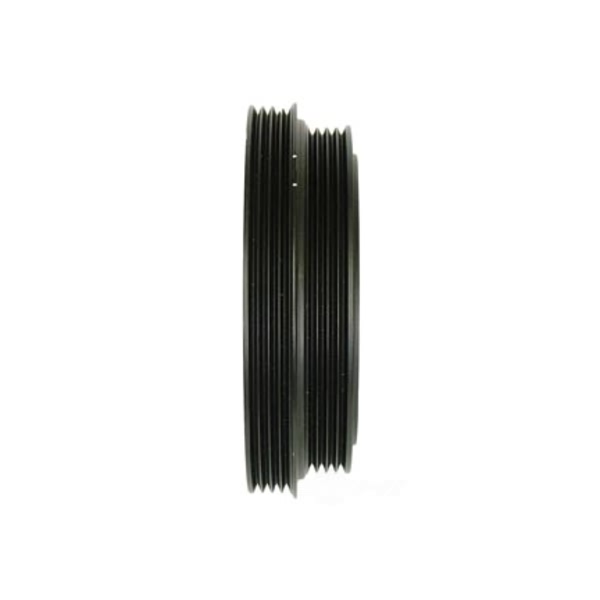

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 4 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.497 or 38.00 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 149.00 or 5.867 |
Overall Width | 1.489 or 37.80 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 130.000 or 5.119 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 4 |
Pulley 2 Outside Diameter | 145.000 or 5.709 |
Pulley 2 Type | Serpentine |
Ring Width | 1.489 or 37.80 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1994-1997 Mazda Miata | All Trims | All Engines |
1999-2005 Mazda Miata | All Trims | All Engines |
2004-2005 Mazda Miata | All Trims | 4 Cyl 1.8L |
1995-1998 Mazda Protege | All Trims | 4 Cyl 1.8L |
1996-1997 Mazda Protege | All Trims | 4 Cyl 1.5L |
1999-2003 Mazda Protege | All Trims | 4 Cyl 1.6L |
