Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1346N |

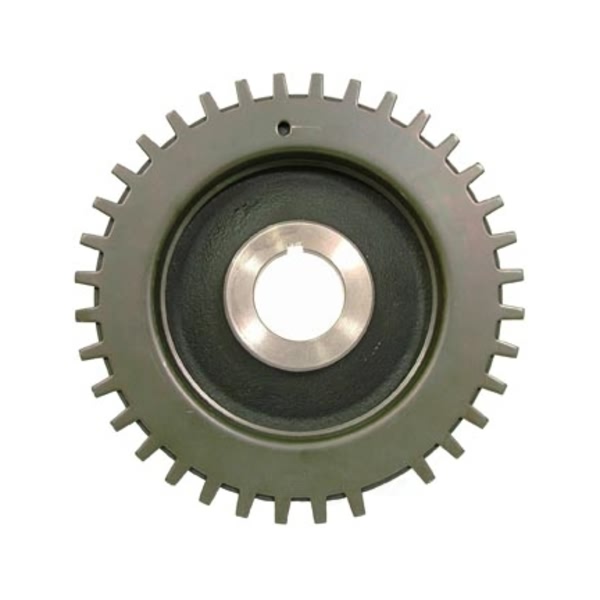

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.182 or 30.01 |
Crank Trigger/Exciter Plate | Yes |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 140.00 or 5.512 |
Overall Width | 1.851 or 47.00 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 140.000 or 5.512 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 140.000 or 5.512 |
Pulley 2 Type | Serpentine |
Ring Width | 1.515 or 38.48 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Ford Probe | All Trims | 4 Cyl 2.0L |
1996-2002 Mazda 626 | All Trims | 4 Cyl 2.0L |
1996-1997 Mazda MX-6 | All Trims | 4 Cyl 2.0L |
1999-2000 Mazda Protege | All Trims | 4 Cyl 1.8L |
2001-2003 Mazda Protege | All Trims | 4 Cyl 2.0L |
2002-2003 Mazda Protege5 | All Trims | All Engines |
