Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1297N |

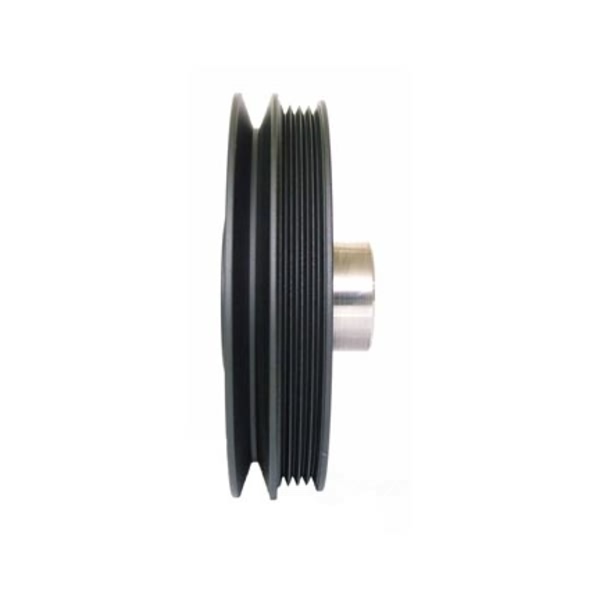

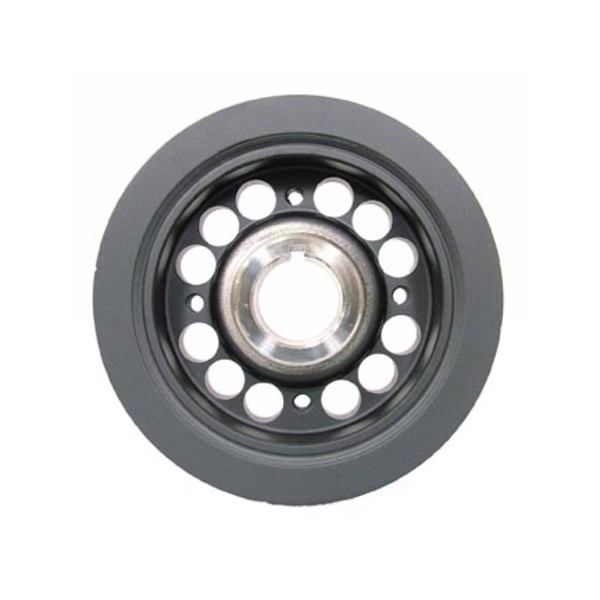

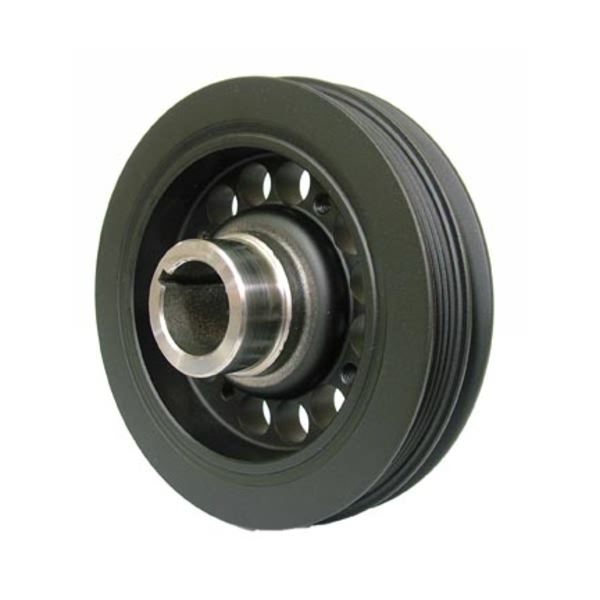

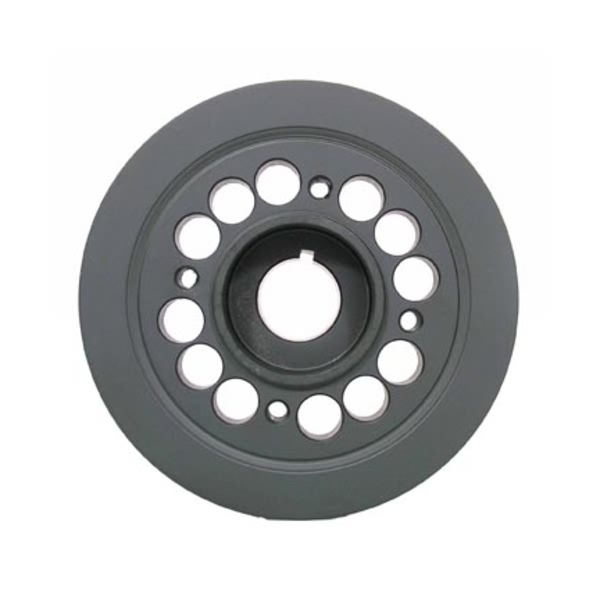

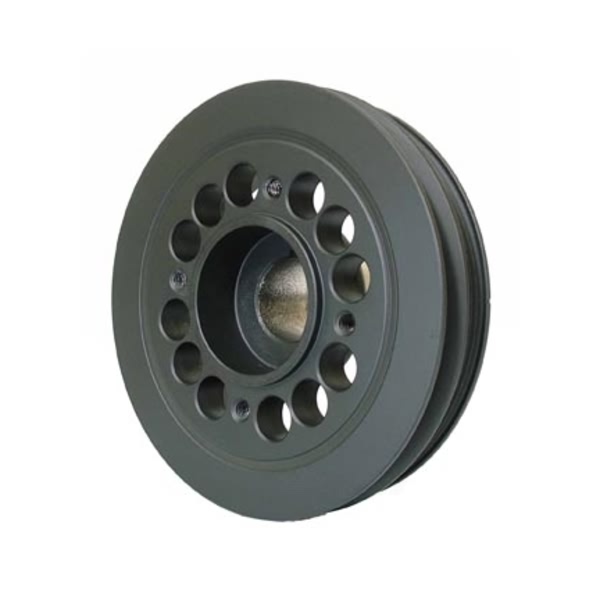

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 4 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.221 or 31.00 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.772 or 45.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 159.00 or 6.260 |
Overall Width | 2.276 or 57.80 |
Pulley 1 Number Of Grooves | 1 |
Pulley 1 Outside Diameter | 159.000 or 6.260 |
Pulley 1 Type | V-Belt |
Pulley 2 Number Of Grooves | 4 |
Pulley 2 Outside Diameter | 150.000 or 5.906 |
Pulley 2 Type | Serpentine |
Ring Width | 1.378 or 34.98 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1988-1995 Toyota 4Runner | All Trims | 6 Cyl 3.0L |
1988-1995 Toyota Pickup | All Trims | 6 Cyl 3.0L |
1993 Toyota T100 | All Trims | All Engines |
1994 Toyota T100 | All Trims | 6 Cyl 3.0L |
