Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1266N |

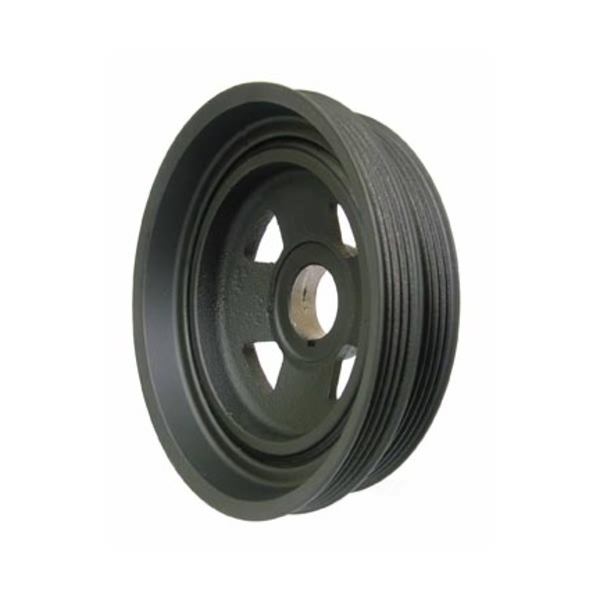

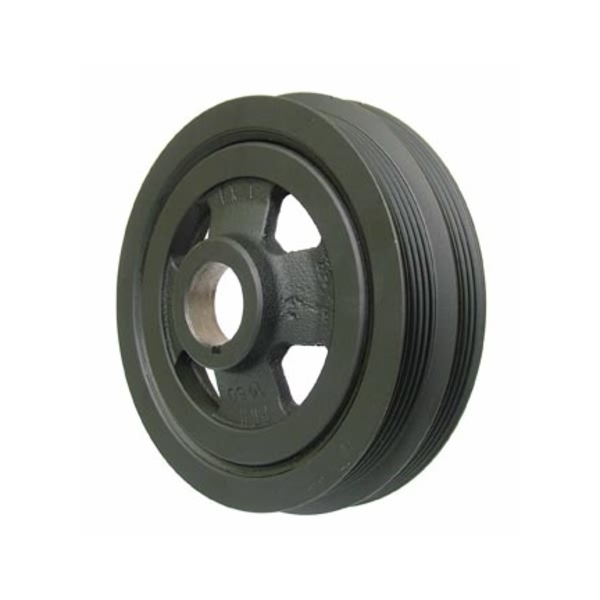

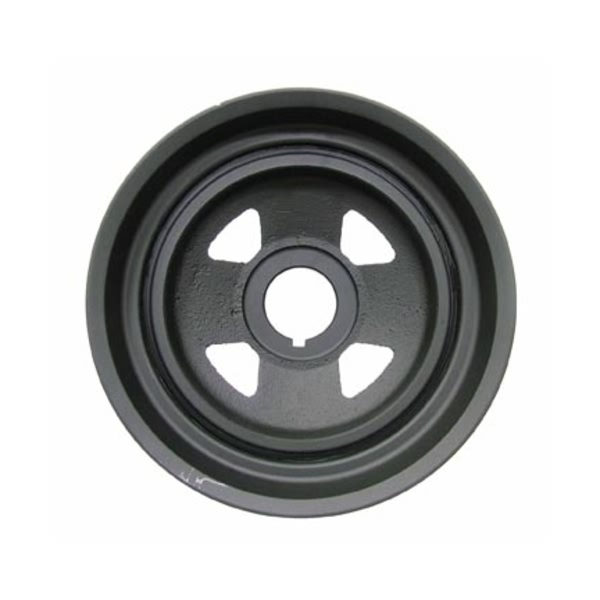

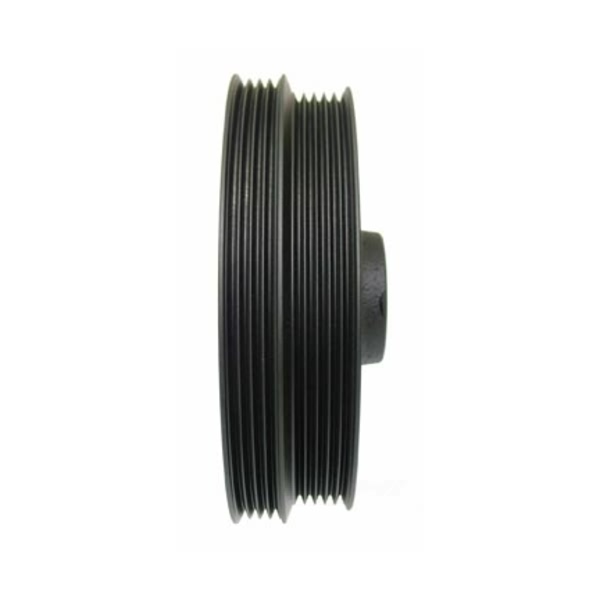

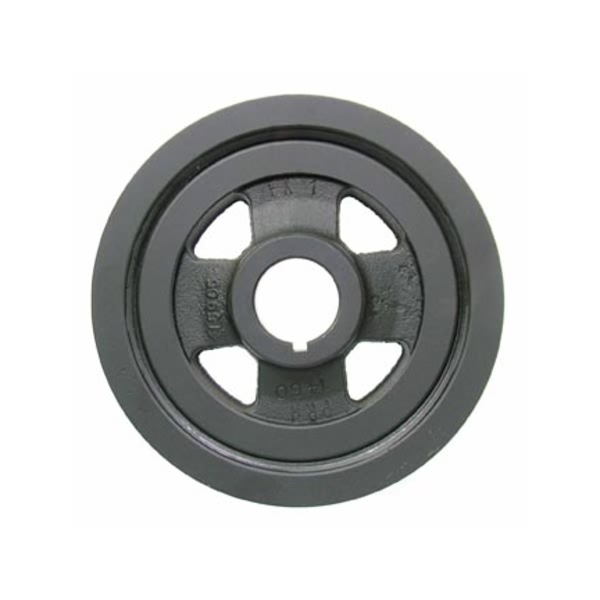

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 0 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.182 or 30.01 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 163.00 or 6.418 |
Overall Width | 2.126 or 54.00 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 160.000 or 6.300 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 150.000 or 5.906 |
Pulley 2 Type | Serpentine |
Ring Width | 1.634 or 41.48 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1991-1996 Dodge Stealth | All Trims | All Engines |
1997-1999 Mitsubishi 3000GT | All Trims | All Engines |
1992-1996 Mitsubishi Diamante | All Trims | All Engines |
