Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1264N |

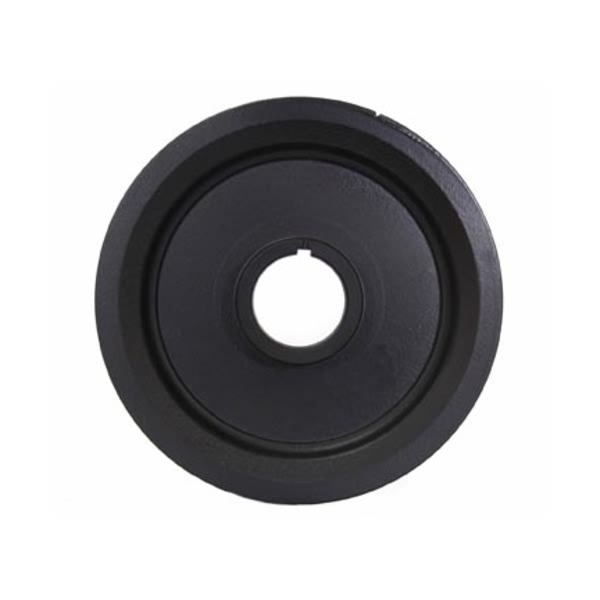

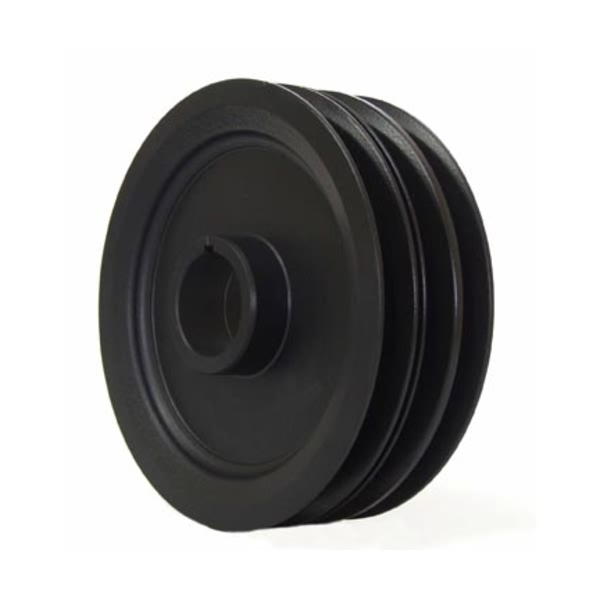

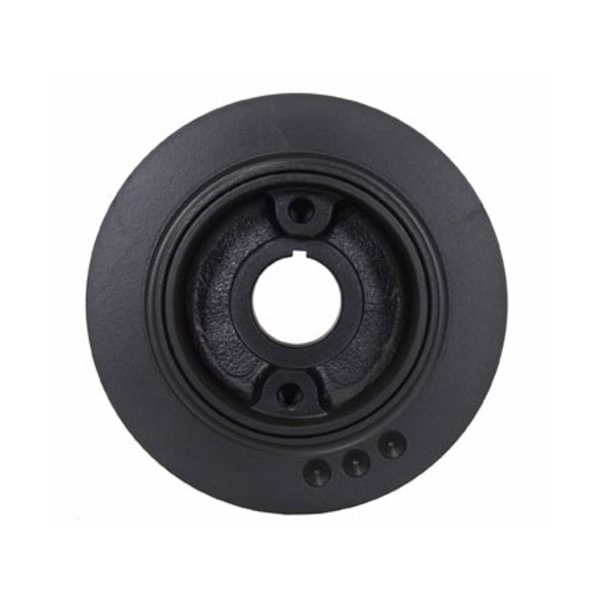

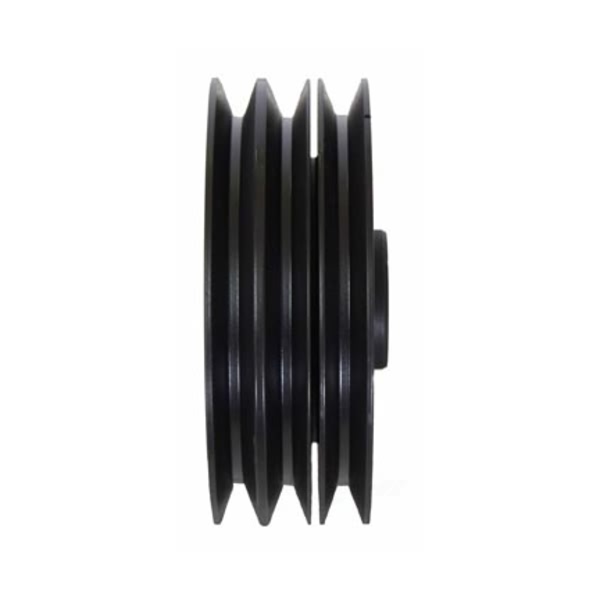

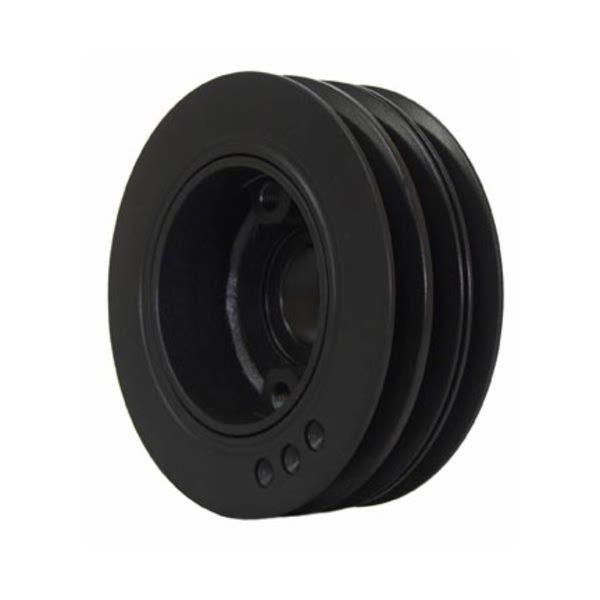

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.339 or 34.01 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.812 or 46.00 |
Number of Integrated Pulleys | 3 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 148.00 or 5.827 |
Overall Width | 2.245 or 57.00 |
Pulley 1 Number Of Grooves | 1 |
Pulley 1 Outside Diameter | 148.000 or 5.827 |
Pulley 1 Type | V-Belt |
Pulley 2 Number Of Grooves | 1 |
Pulley 2 Outside Diameter | 148.000 or 5.827 |
Pulley 2 Type | V-Belt |
Ring Width | 1.278 or 32.44 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1989-1993 Mazda B2600 | All Trims | All Engines |
1989-1994 Mazda MPV | All Trims | 4 Cyl 2.6L |
