Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1232N |

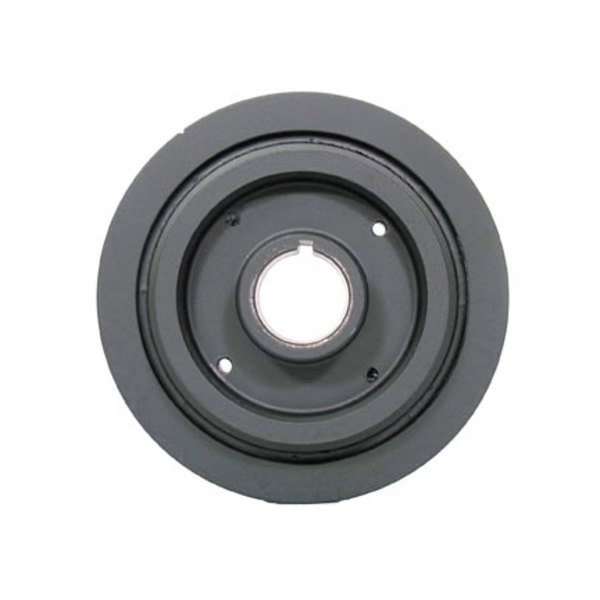

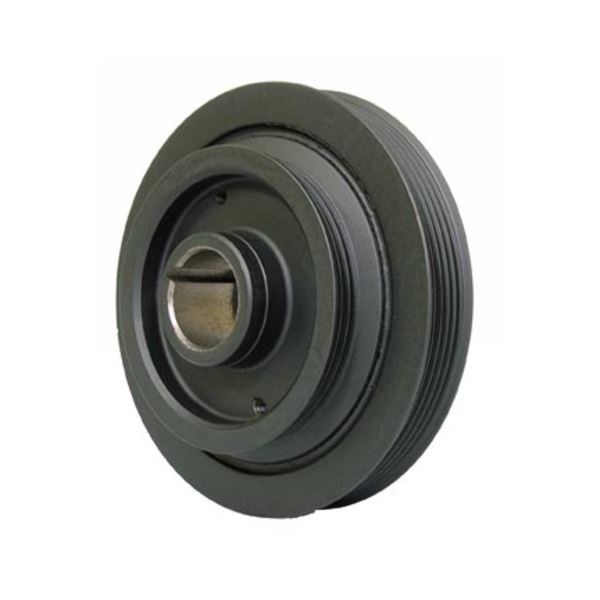

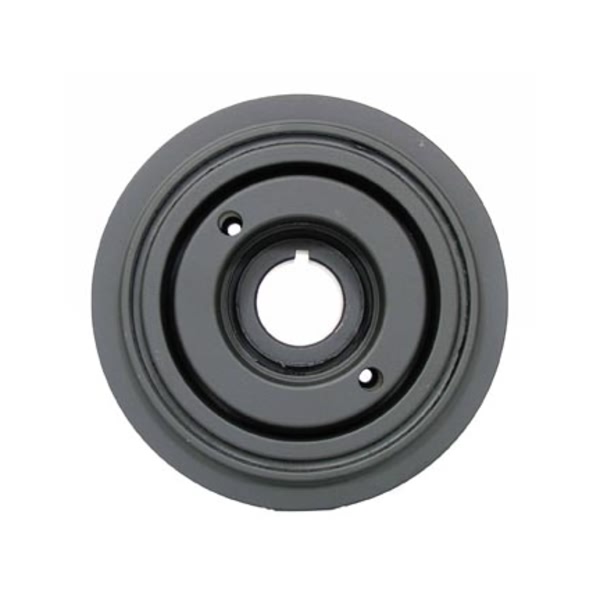

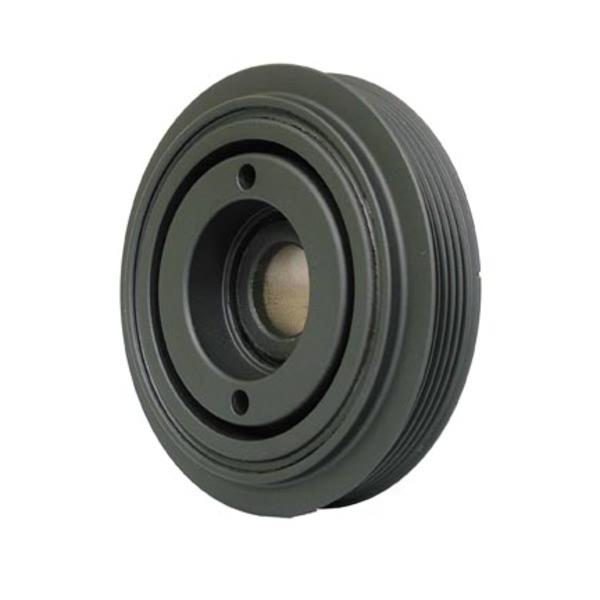

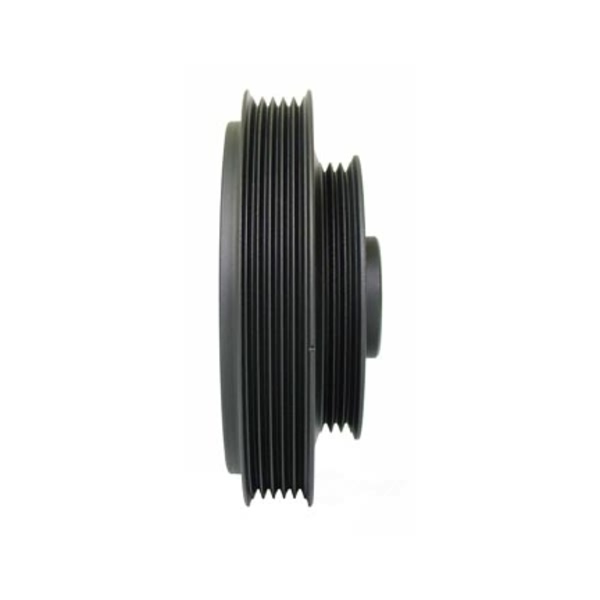

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.221 or 31.01 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.701 or 43.20 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 145.00 or 5.709 |
Overall Width | 2.065 or 52.45 |
Pulley 1 Number Of Grooves | 3 |
Pulley 1 Outside Diameter | 3.741 or 95.000 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 140.000 or 5.512 |
Pulley 2 Type | Serpentine |
Ring Width | 1.139 or 28.93 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1987 Toyota Camry | All Trims | All Engines |
1988-1991 Toyota Camry | All Trims | 4 Cyl 2.0L |
1986-1989 Toyota Celica | All Trims | 4 Cyl 2.0L |
1987-1989 Toyota Celica | All Trims | All Engines |
1990-1993 Toyota Celica | All Trims | 4 Cyl 2.2L |
