Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1228N |

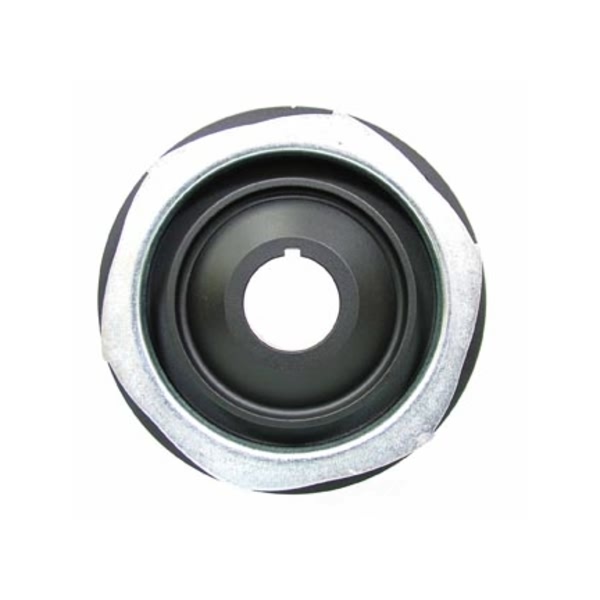

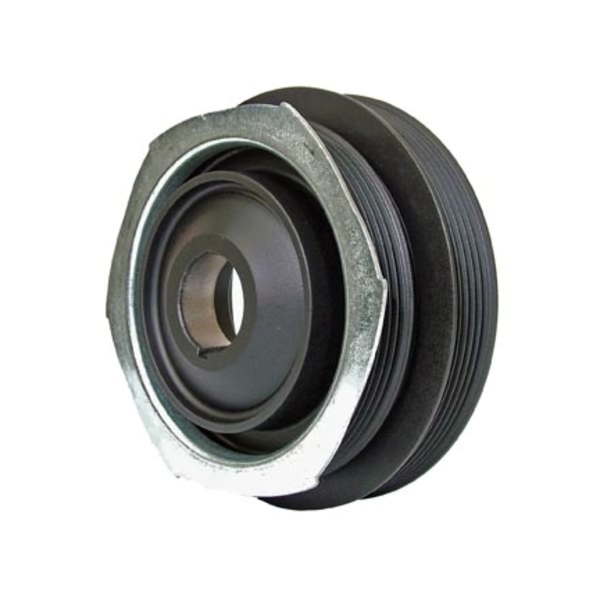

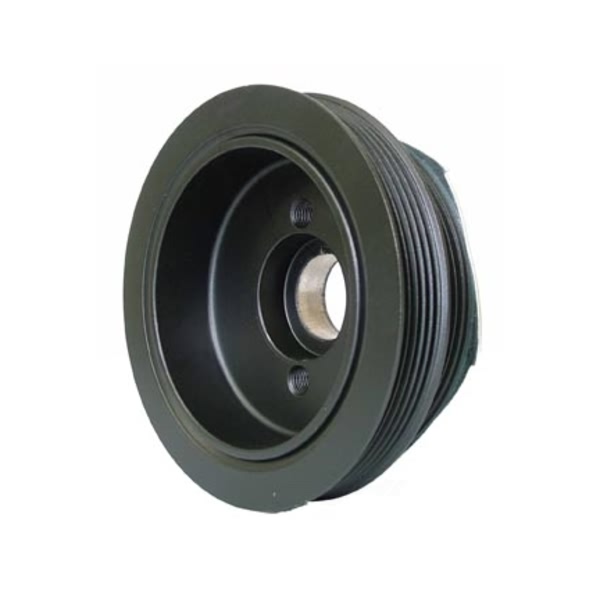

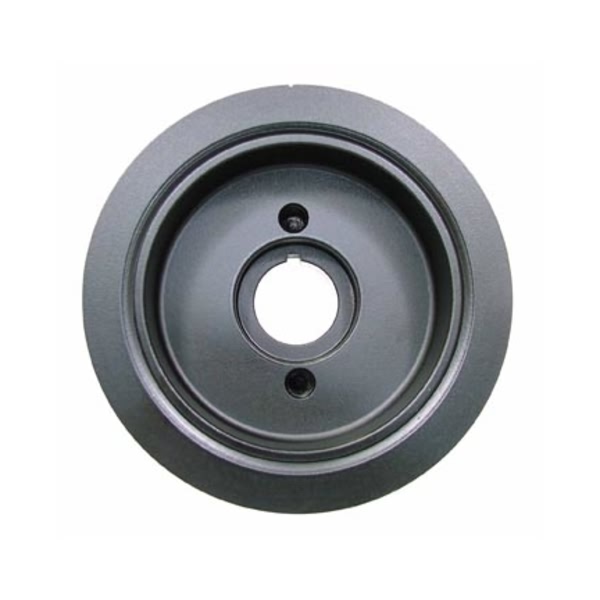

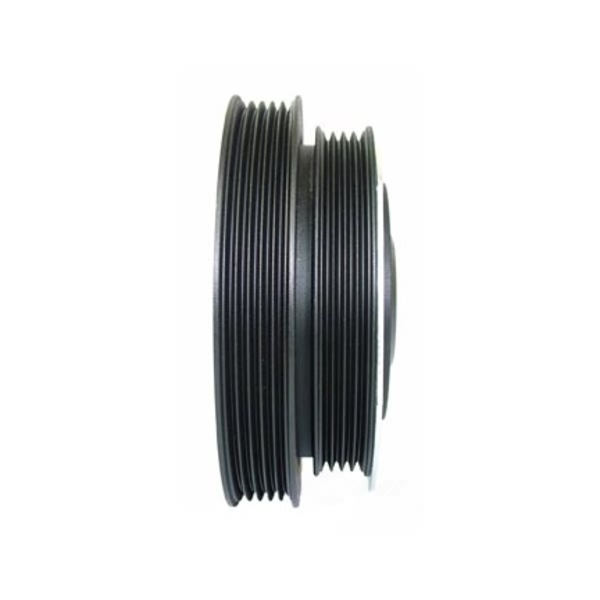

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.241 or 31.51 |
Crank Trigger/Exciter Plate | Yes |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 143.90 or 5.666 |
Overall Width | 2.205 or 56.00 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 119.600 or 4.709 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 140.000 or 5.512 |
Pulley 2 Type | Serpentine |
Ring Width | 0.917 or 23.29 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1993-1997 Ford Probe | All Trims | 6 Cyl 2.5L |
1993-1997 Mazda 626 | All Trims | 6 Cyl 2.5L |
1993-1997 Mazda MX-6 | All Trims | 6 Cyl 2.5L |
1995-2002 Mazda Millenia | All Trims | 6 Cyl 2.5L |
