Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1189N |

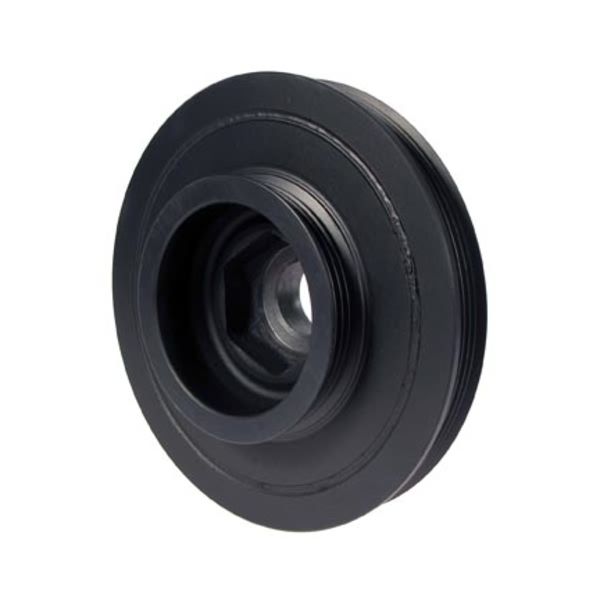

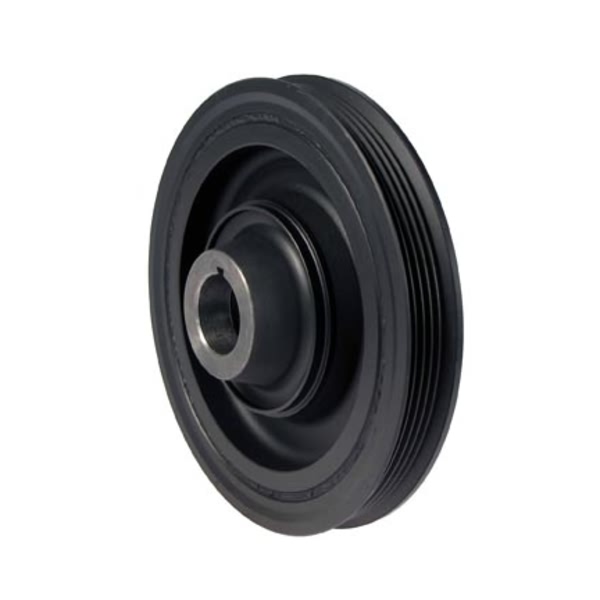

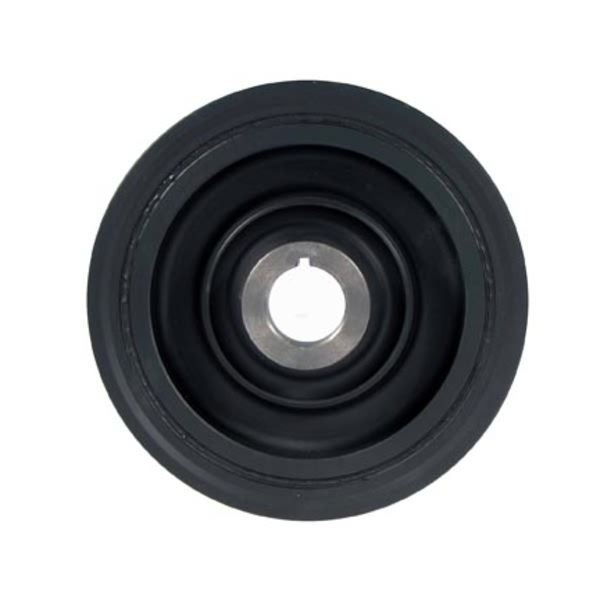

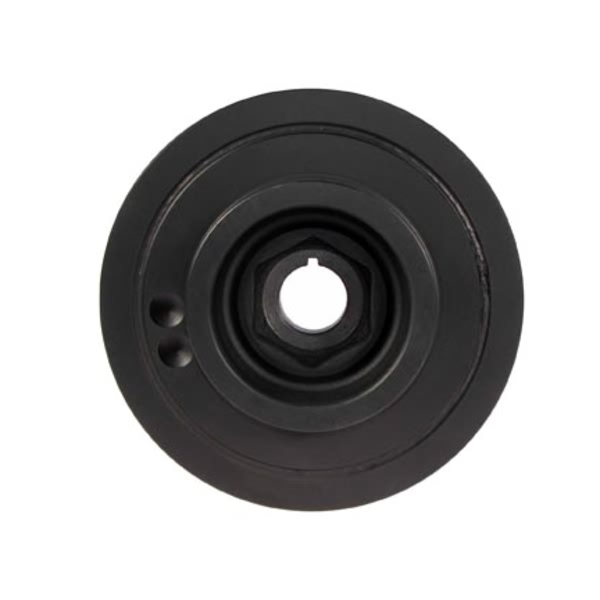

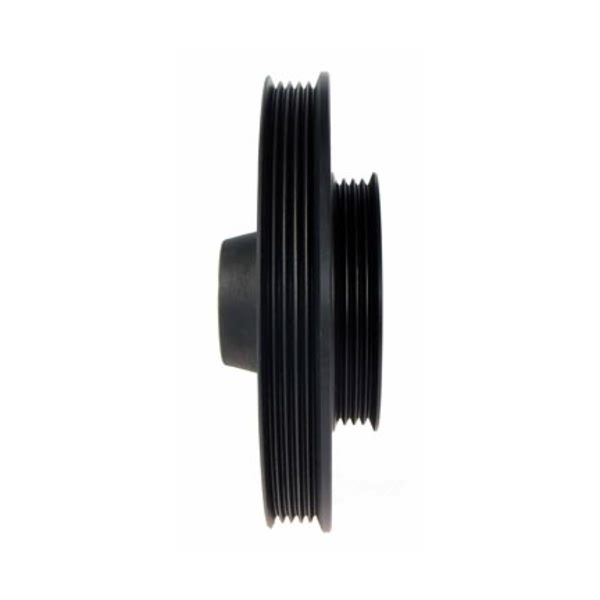

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 0 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 1.182 or 30.00 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | Yes |
Nose Outside Diameter | 0 or 0.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Grey Iron |
Overall Outside Diameter | 177.50 or 6.989 |
Overall Width | 2.363 or 60.00 |
Pulley 1 Number Of Grooves | 4 |
Pulley 1 Outside Diameter | 3.780 or 96.000 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 5 |
Pulley 2 Outside Diameter | 170.000 or 6.693 |
Pulley 2 Type | Serpentine |
Ring Width | 0.945 or 23.98 |
Timing Marks | No |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1990-1993 Honda Accord | All Trims | All Engines |
1991 Honda Accord | All Trims | 4 Cyl 2.2L |
1992-1993 Honda Prelude | All Trims | 4 Cyl 2.2L |
1992-1996 Honda Prelude | All Trims | 4 Cyl 2.3L |
1994-1996 Honda Prelude | S | 4 Cyl 2.2L |
