Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | PB1153N |

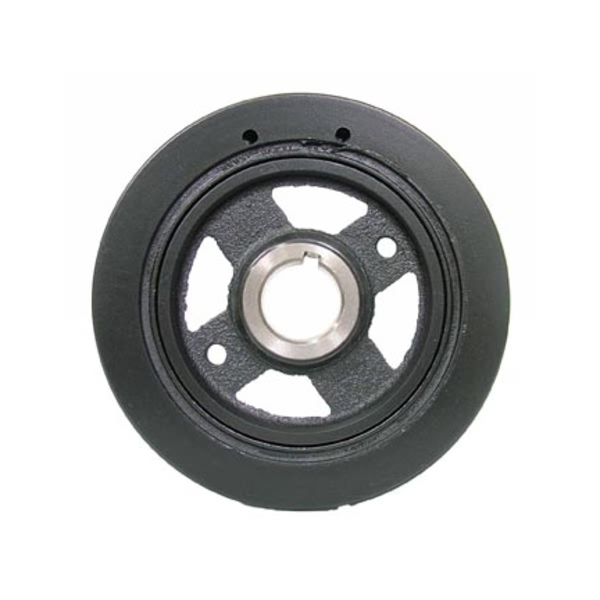

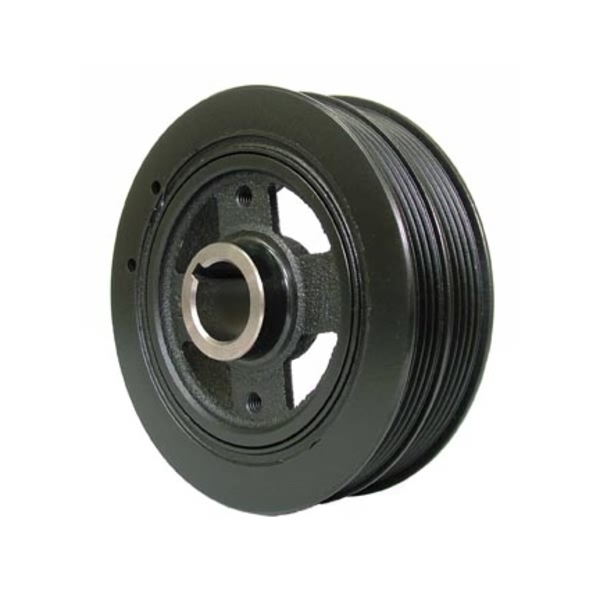

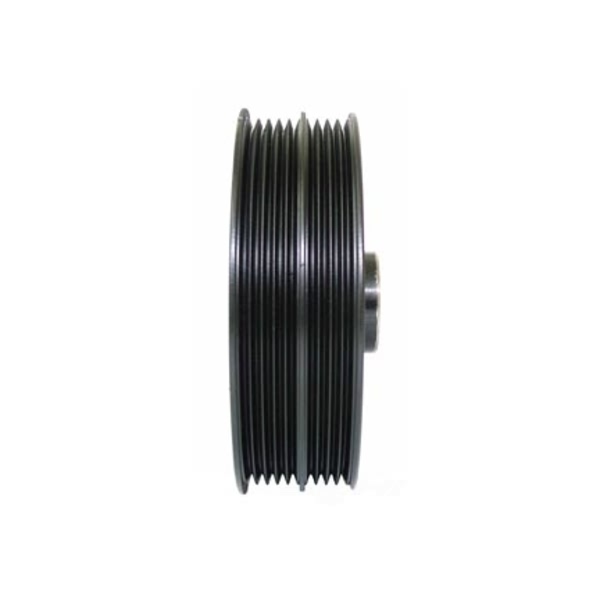

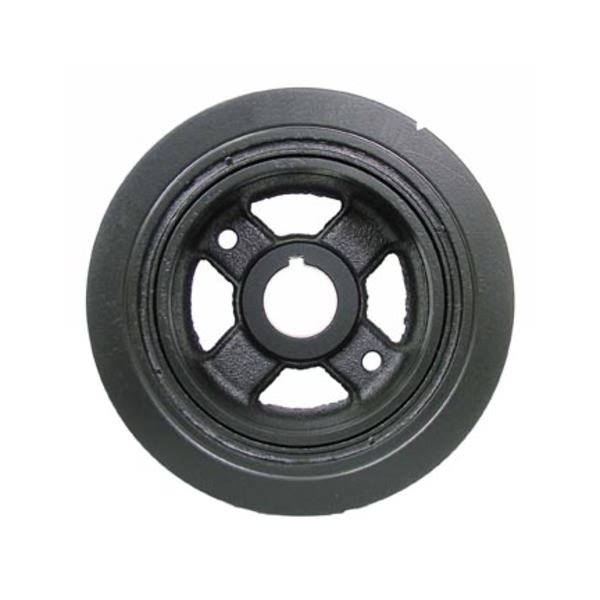

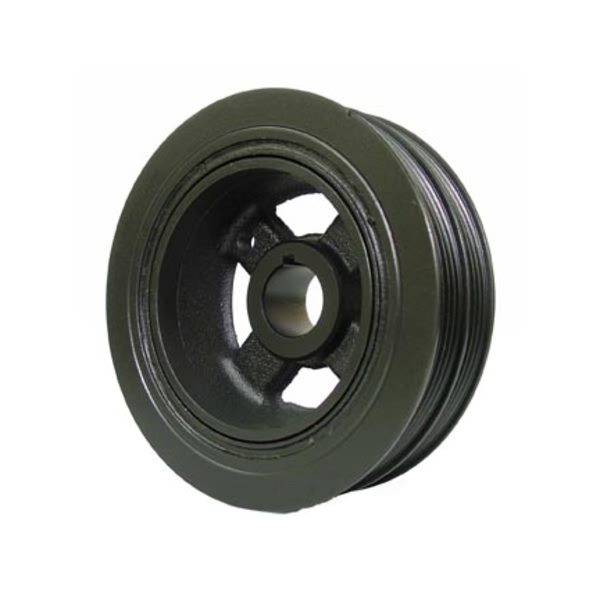

Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
Bolt Hole Quantity | 2 |
Counterweight Balance | Neutral, no counterweight |
Crank Bore | 0.985 or 25.01 |
Crank Trigger/Exciter Plate | No |
Hardware Included | No |
Installation Instructions Included | No |
Nose Outside Diameter | 1.457 or 37.00 |
Number of Integrated Pulleys | 2 |
Outer Ring Material | Cast Iron |
Overall Outside Diameter | 135.00 or 5.315 |
Overall Width | 1.914 or 48.60 |
Pulley 1 Number Of Grooves | 5 |
Pulley 1 Outside Diameter | 130.000 or 5.119 |
Pulley 1 Type | Serpentine |
Pulley 2 Number Of Grooves | 4 |
Pulley 2 Outside Diameter | 130.000 or 5.119 |
Pulley 2 Type | Serpentine |
Ring Width | 1.589 or 40.34 |
Timing Marks | Yes |
Woodruff Key Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1993-1997 Geo Prizm | All Trims | 4 Cyl 1.6L |
1993-1997 Geo Prizm | All Trims | 4 Cyl 1.8L |
1994-1997 Toyota Celica | All Trims | 4 Cyl 1.8L |
1993-1997 Toyota Corolla | All Trims | 4 Cyl 1.6L |
1993-1997 Toyota Corolla | All Trims | 4 Cyl 1.8L |
