Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | XTX2241 |

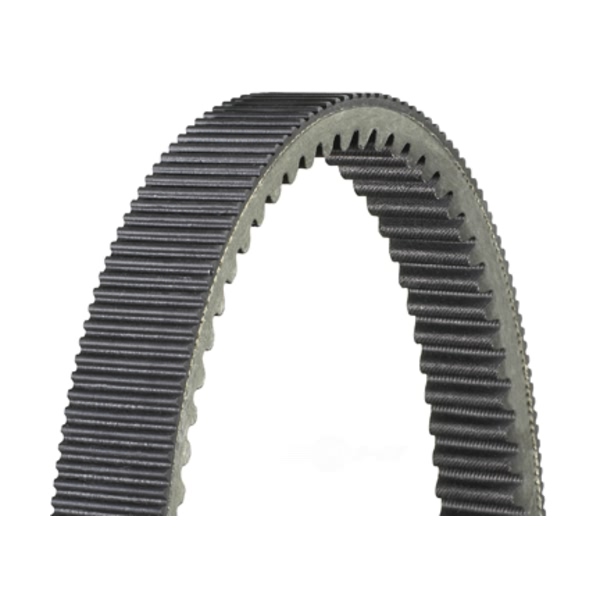

Part Description | ATV BELT XTX, DAYCO XTX |
Angle | 28 |
Bottom Cog Type | Round |
EBS (Engine Braking System) Belt | No |
Maximum Operating Temperature | 112.7 or 235 |
Minimum Operating Temperature | -40 |
Outside Circumference | 37.125 or 942.975 |
Thickness | .630 |
Top Cog Type | Fine |
Top Cogged | Yes |
Top Material | Rubber |
Top Width | 1.290 or 32.766 |
UPC | 036687643384 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 Yamaha YFM700 Grizzly FI 4x4 Auto | All Trims | All Engines |
2013-2015 Yamaha YFM700 Grizzly FI 4x4 Auto | All Trims | All Engines |
2007-2010 Yamaha YFM700 Grizzly FI 4x4 Auto EPS | All Trims | All Engines |
2013-2015 Yamaha YFM700 Grizzly FI 4x4 Auto EPS | All Trims | All Engines |
2009-2010 Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE | All Trims | All Engines |
2013-2015 Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE | All Trims | All Engines |
2008-2009 Yamaha YXR700F Rhino 700 FI | All Trims | All Engines |
2011-2013 Yamaha YXR700F Rhino 700 FI | All Trims | All Engines |
2008-2009 Yamaha YXR700F Rhino 700 FI Ducks Unlimited | All Trims | All Engines |
2008-2009 Yamaha YXR700F Rhino 700 FI Special Edition | All Trims | All Engines |
