Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 10557 |

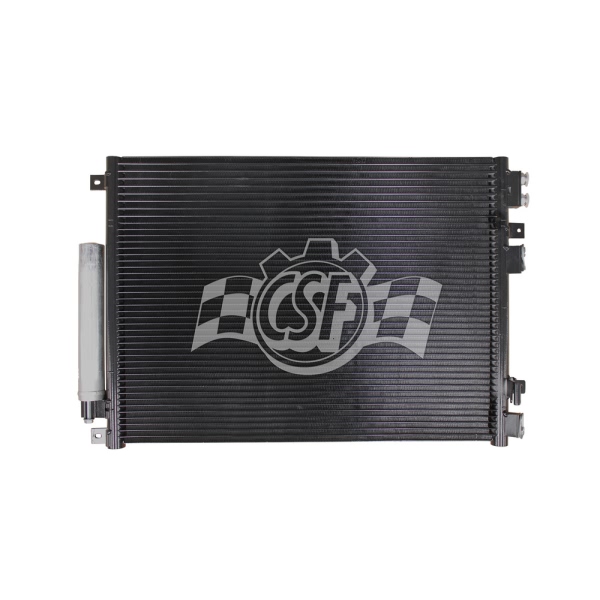

Part Description | A/C Condenser |
Box Height (in) | 6 |
Box Length (in) | 31 1/9 |
Box Weight (lbs) | 12 6/7 |
Box Width (in) | 22 |
Construction | parallel flow |
Core Length | 24 2/7 |
Core Thickness | 6/7 |
Core Width | 18 1/3 |
Hazardous Material | No |
Inlet Tube | Block Fitting |
UPC | 710353105573 |
OE Part Number | 5137693AD, CH3030210, 5137693AC |
Outlet Tube | Block Fitting |
Tech Note | Supplied with SUB COOL Design Technology |
Year Make Model | Trim | Engine |
---|---|---|
2005-2009 Chrysler 300 | All Trims | 6 Cyl 2.7L |
2005-2009 Chrysler 300 | All Trims | 6 Cyl 3.5L |
2005-2009 Chrysler 300 | All Trims | 8 Cyl 5.7L |
2005-2009 Chrysler 300 | All Trims | 8 Cyl 6.1L |
2012-2013 Chrysler 300 | All Trims | 8 Cyl 6.4L |
2008 Dodge Challenger | All Trims | 8 Cyl 6.1L |
2011-2013 Dodge Challenger | All Trims | 8 Cyl 6.4L |
2006-2007 Dodge Charger | All Trims | 6 Cyl 2.7L |
2006-2007 Dodge Charger | All Trims | 6 Cyl 3.5L |
2006-2007 Dodge Charger | All Trims | 8 Cyl 5.7L |
