Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 27-7513 |

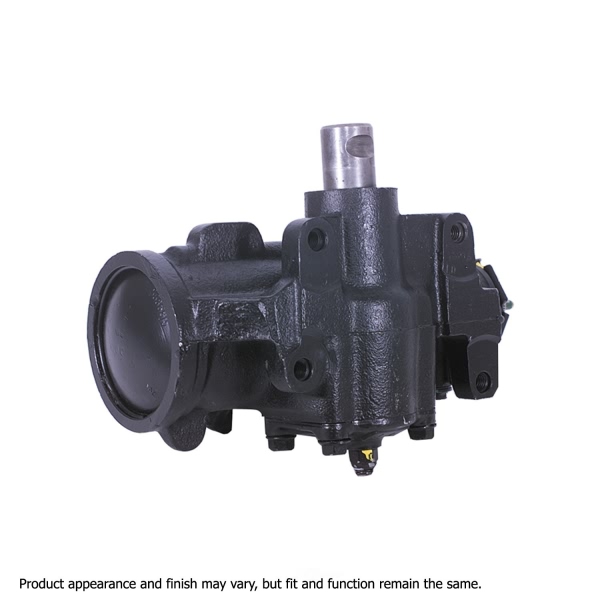

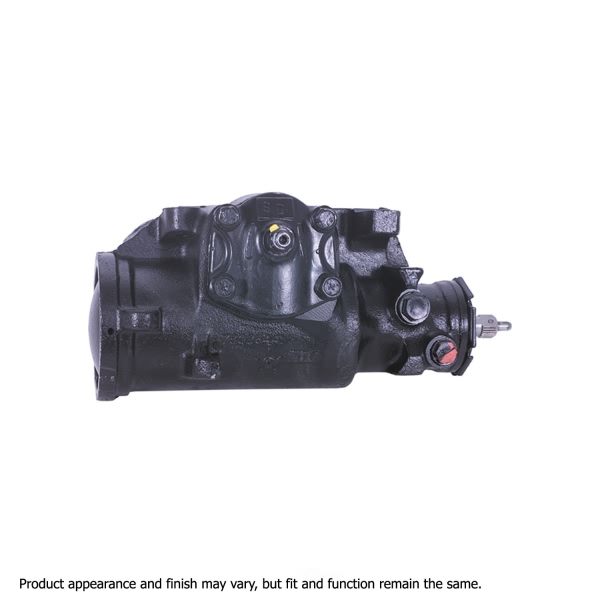

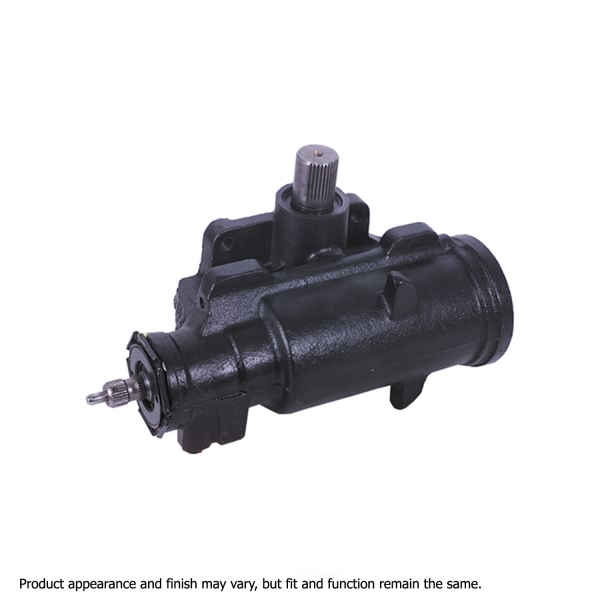

Part Description | Remanufactured Power Steering Gear |
Finish | Black |
Hose Port Type | Seat |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.725" |
Input Shaft Spline Count | 25 + Flat and Groove |
Input Shaft Type | Splined, Single Flat |
Number of Mounting Holes | 4 |
Output Shaft Diameter (in) | 1.25" |
Pressure Port Thread Size | 11/16 x 18 |
Pump Rotation | Standard |
Quantity | 1 per Pack |
Return Port Thread Size | 5/8 x 18 |
Total Turns Lock to Lock | 3.4 |
Without | Pitman Arm |
Year Make Model | Trim | Engine |
---|---|---|
1977-1979 Chevrolet K10 | All Trims | All Engines |
1977-1979 Chevrolet K10 Suburban | All Trims | All Engines |
1977-1979 Chevrolet K20 | All Trims | All Engines |
1977-1979 Chevrolet K20 Suburban | All Trims | All Engines |
1977-1979 Chevrolet K30 | All Trims | All Engines |
1977-1979 Chevrolet K5 Blazer | All Trims | All Engines |
1977-1979 GMC Jimmy | All Trims | All Engines |
1977-1978 GMC K15 | All Trims | All Engines |
1977-1978 GMC K15 Suburban | All Trims | All Engines |
1979 GMC K1500 | All Trims | All Engines |
