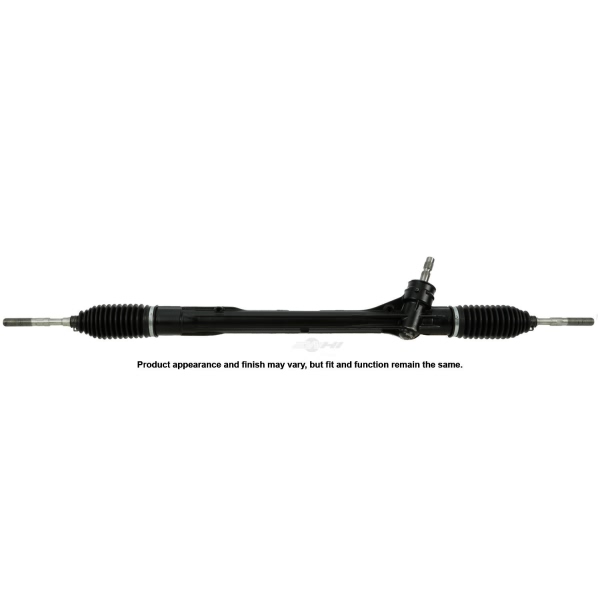

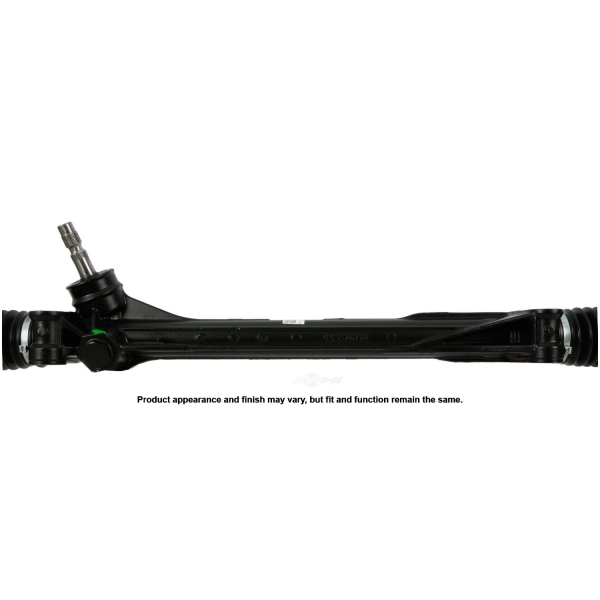

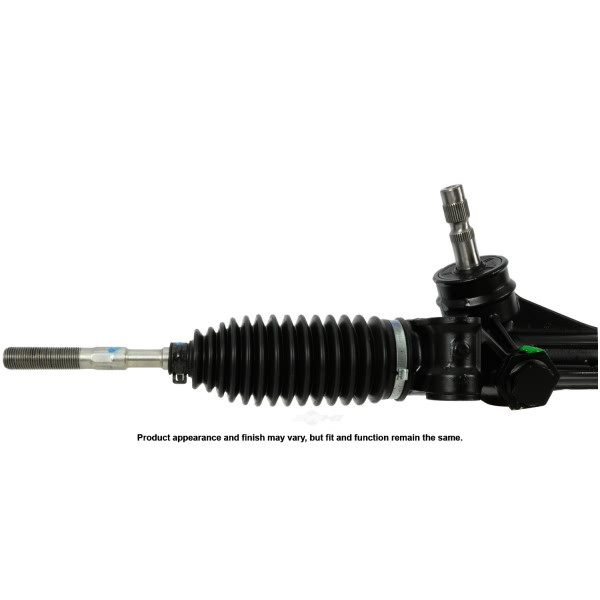

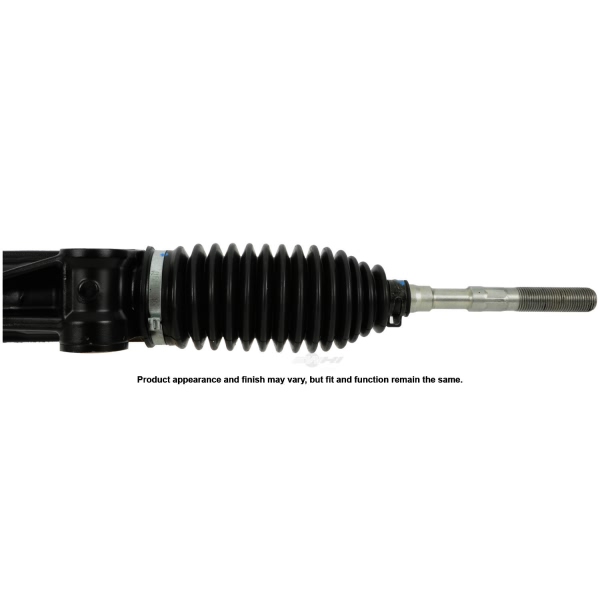

Cardone Reman® Remanufactured EPS Manual Rack and Pinion 1G-26012

Cardone Reman Remanufactured EPS Manual Rack and Pinion 1G-26012
$265.49
Core Charge: $44.10
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandCardone Reman
    Part Number1G-26012
    Part DescriptionRemanufactured EPS Manual Rack and Pinion
    Casting MaterialAluminum
    Distance Between Mounting Holes (in)19.750"
    Distance Between Mounting Holes (mm)501.65 mm
    Input Shaft Diameter (in)0.707"
    Input Shaft Diameter (mm)17.96 mm
    Input Shaft Length (in)2.625"
    Input Shaft Length (mm)66.69 mm
    Number of Mounting Holes4
    Rack Length (in)43.375"
    Rack Length (mm)1101.73 mm
    Steering Rack FinishBlack
    Thread Length (in)2.043"
    Thread Length (mm)51.88 mm
    Total Turns Lock to Lock2.750
    Warning: California’s Proposition 65
  • Features

    Cardone Reman Remanufactured Eps Manual Rack And Pinion Assembly are featured as follows:
    • Electronic Rack and Pinion Assembly provides power steering assistance for vehicles lacking a traditional hydraulic power steering system.
    • Cardone remanufacturing process ensures that all rack & pinion/gearbox units meet or exceed O.E. form, fit and function.
    • Fully computerized testing at load to ensure reliable performance.
    • All rotating and actuating components are properly hardened, ground and polished to ensure longevity of the components and their respective seals.
    • Computerized spool valve balancing ensures exceptional feel and returnability.
    • Environmentally-friendly coating provides a clean appearance and prevents rust.
    • Supplied with O.E. grade seals, O-rings, and boots to provide optimal sealing performance and longevity.
    • Rack & Pinion sleeves are installed using an exclusive bonding process to ensure sleeves never come loose.
    • Cardone's remanufactured rack and pinion assemblies are the way to go for replacement.
    • Cardone remanufactured drive axles are made with Cardone's Reman advantage in mind: they feature the same fit and function as OE but they are more reliable thanks to the reverse engineering techniques that help to reinforce failure-prone areas and ensure longer-lasting performance.
    The Cardone Reman Remanufactured Eps Manual Rack And Pinion Assembly 1G-26012 is a high-quality, reliable steering component for vehicles. Designed to convert rotational motion into linear motion to provide precise control and steering for the vehicle. The system is computer tested to ensure reliable performance. Engineered to meet or exceed original equipment (O.E.) standards. It features a computerized spool valve balancing for exceptional feel and returnability, and is coated for rust prevention. The system is also environmentally friendly, using only 20% of the energy and raw materials necessary for building a new part. Manufactured by Cardone since 1970, a leader in the automotive market, it is made of top-quality materials thereby highly resistant to damage and lasts for years.
    Since its founding in 1970, Cardone Reman has become one of the world's leading suppliers of replacement automotive components. Specializing in brakes, electrical motors, fuel/air systems, electronics, and drivetrain/steering/suspension components, their products are synonymous in the industry with quality, durability, and easy installation. This strong reputation demonstrates the vast experience and expertise they have gained over the years.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2015-2017 Lexus NX200tAll TrimsAll Engines
    2013-2018 Toyota RAV4LimitedAll Engines
    2016-2018 Toyota RAV4SEAll Engines
    2018 Toyota RAV4AdventureAll Engines
    2018 Toyota RAV4PlatinumAll Engines
