Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 60-5296 |

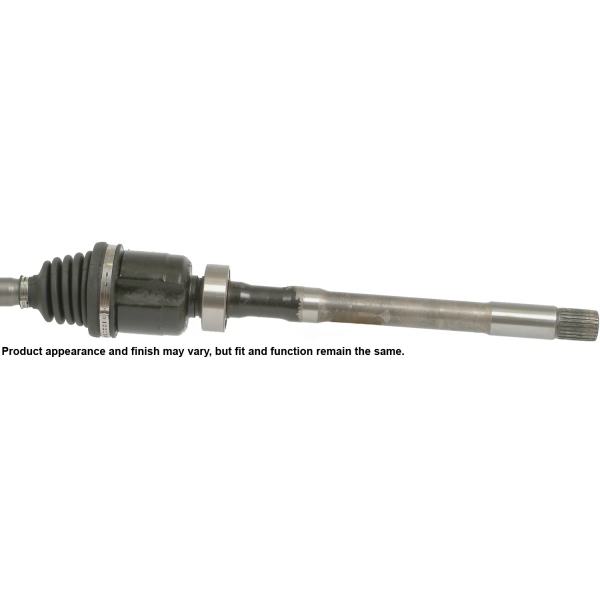

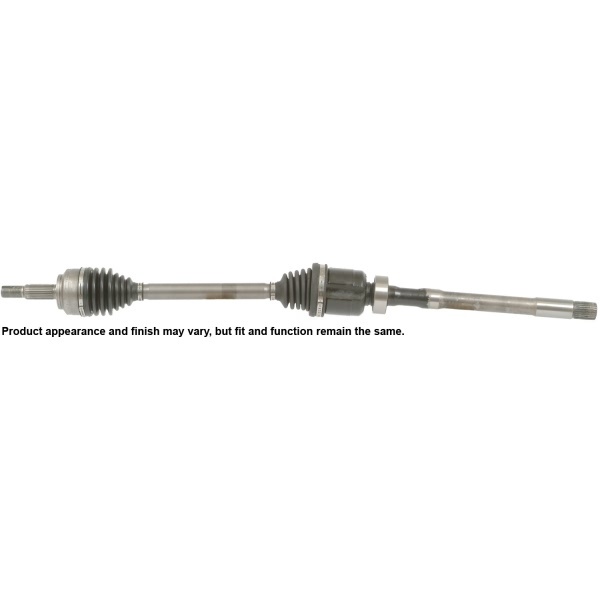

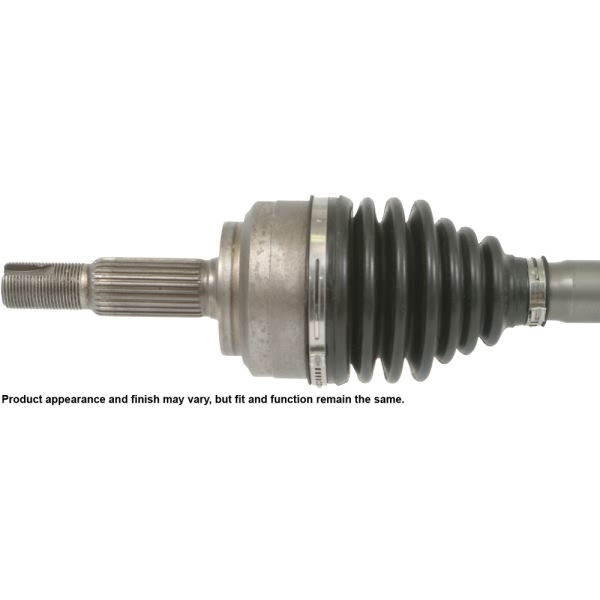

Part Description | Remanufactured CV Axle Assembly |
ABS Ring Included | No |
Axle Nut Locking Type | Stake |
Input Shaft Connection Style | Spline |
Input Shaft Spline Count | 24 |
Length | 39 1/16" |
Output Shaft Connection Style | Spline |
Output Shaft Spline Count | 26 |
Product Condition | Remanufactured |
Spindle Nut Hex Head Size | 32mm |
Spindle Nut Included | Yes |
Spindle Nut Thread Size | M22 x 1.5 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2008 Toyota RAV4 | All Trims | 4 Cyl 2.4L |
2009-2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
