Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 26-4009 |

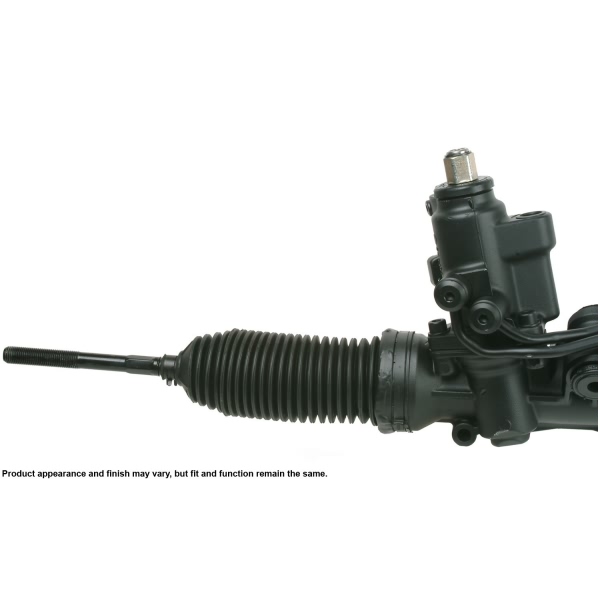

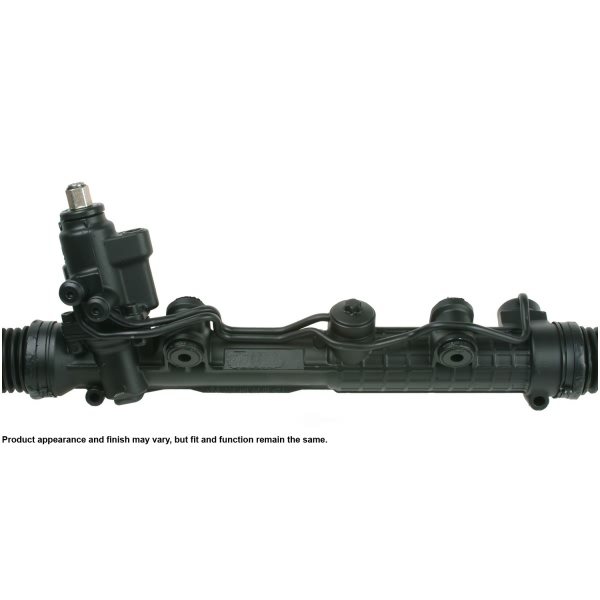

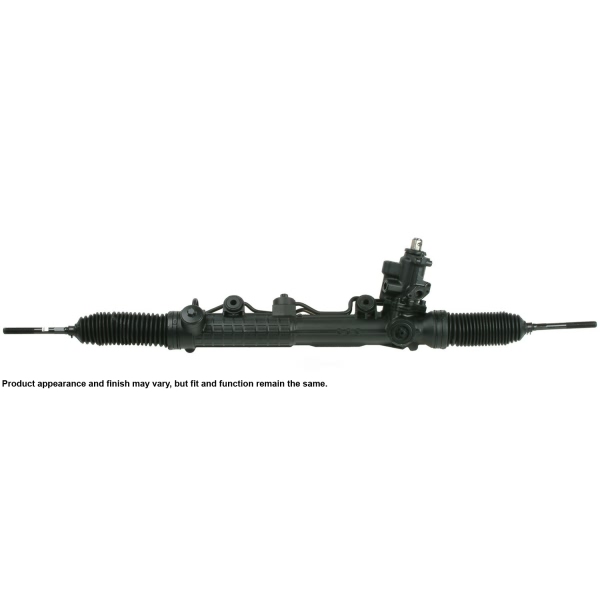

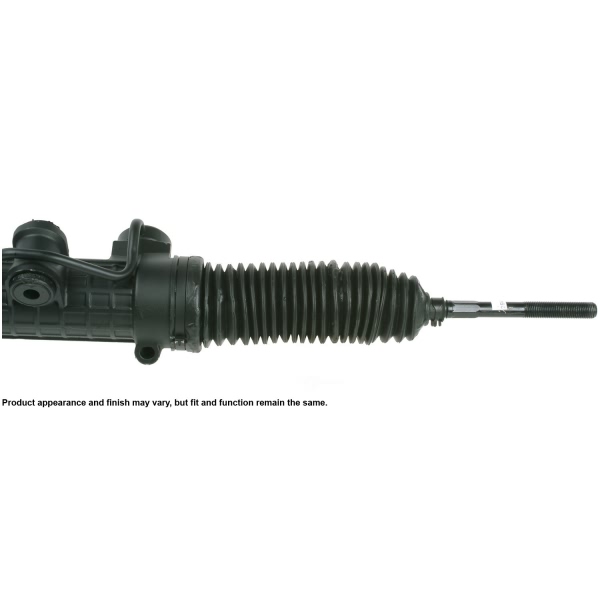

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Aluminum |
Distance Between Mounting Holes (in) | 10.000" |
Hose Port Type | O-Ring |
Import or Domestic | Import |
Input Shaft Diameter (in) | 0.786" |
Input Shaft Length (in) | 1.625" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M16 x 1.5 |
Rack Length (in) | 44.938" |
Return Port Thread Size | M18 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 2.8" |
Total Turns Lock to Lock | 2.88 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
2000-2003 Mercedes-Benz CL500 | All Trims | All Engines |
2001-2004 Mercedes-Benz CL55 AMG | All Trims | All Engines |
2001-2003 Mercedes-Benz CL600 | All Trims | All Engines |
2000-2002 Mercedes-Benz S430 | All Trims | All Engines |
2003-2005 Mercedes-Benz S430 | Base | All Engines |
2000-2002 Mercedes-Benz S500 | All Trims | All Engines |
2003-2005 Mercedes-Benz S500 | Base | All Engines |
2001-2005 Mercedes-Benz S55 AMG | All Trims | All Engines |
2001-2006 Mercedes-Benz S600 | All Trims | All Engines |
2006 Mercedes-Benz S65 AMG | All Trims | All Engines |
