Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 26-2412 |

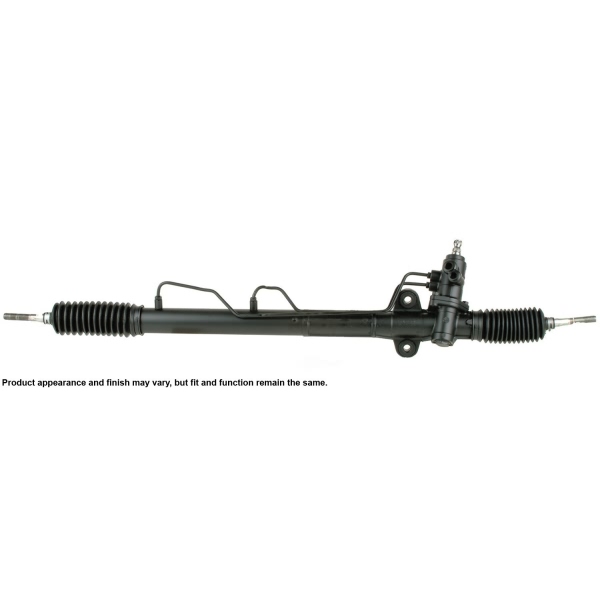

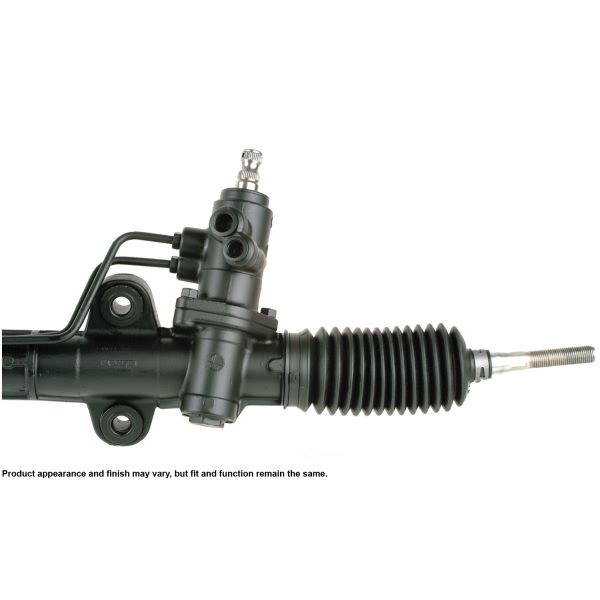

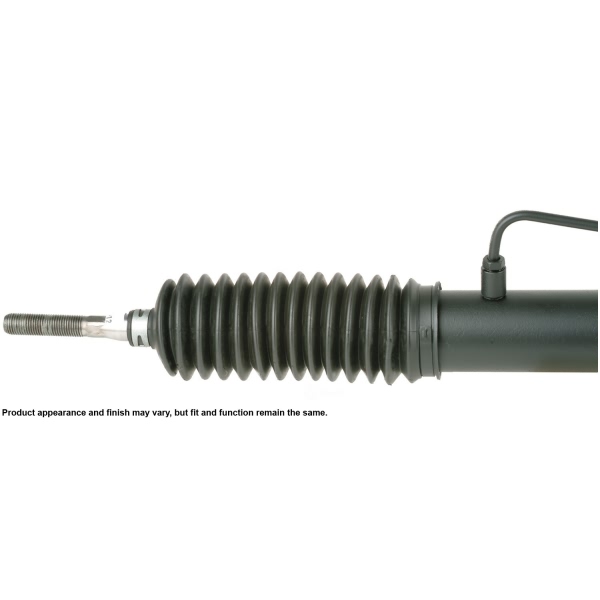

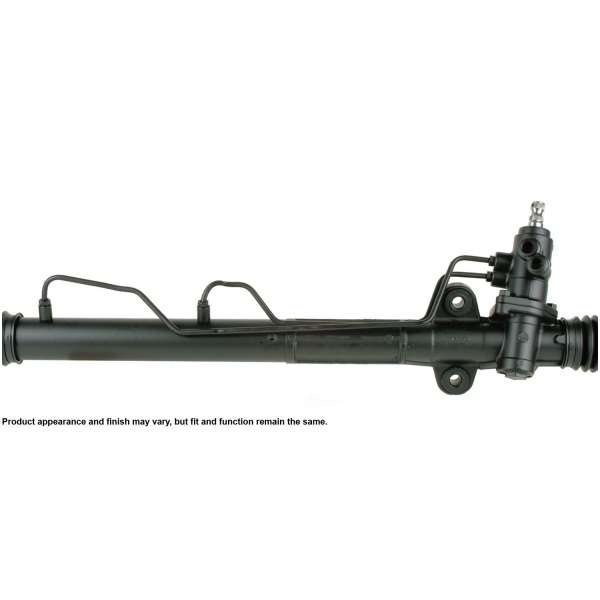

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 3.625" |
Hose Port Type | Seat |
Import or Domestic | Import |
Input Shaft Diameter (in) | 0.709" |
Input Shaft Length (in) | 3.25" |
Number of Mounting Holes | 3 |
Pressure Port Thread Size | M14 x 1.5 |
Rack Length (in) | 44.125" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 1.922" |
Total Turns Lock to Lock | 2.88 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
1999-2001 Hyundai Sonata | All Trims | All Engines |
2002-2004 Hyundai Sonata | Base | All Engines |
2002-2004 Hyundai Sonata | LX | All Engines |
2003-2005 Hyundai Sonata | GL | All Engines |
2005 Hyundai Sonata | GLX | All Engines |
2005 Hyundai Sonata | VE | All Engines |
2001 Hyundai XG300 | All Trims | All Engines |
2001-2006 Kia Magentis | All Trims | All Engines |
2001-2005 Kia Optima | All Trims | All Engines |
2006 Kia Optima | All Trims | 4 Cyl 2.4L |
