Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 26-1815 |

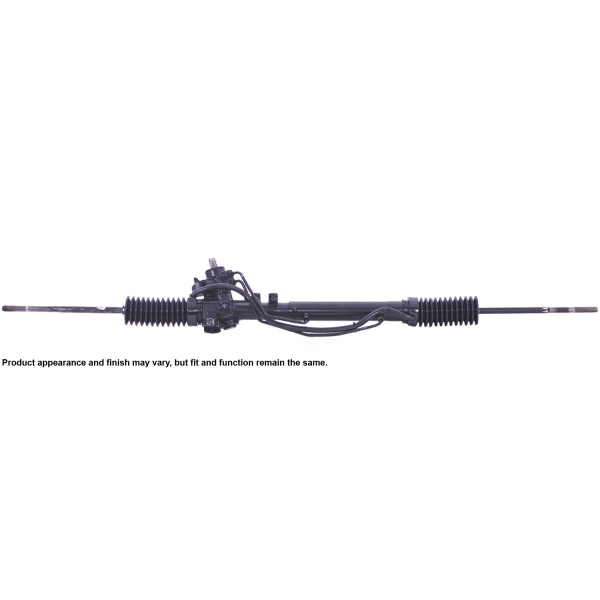

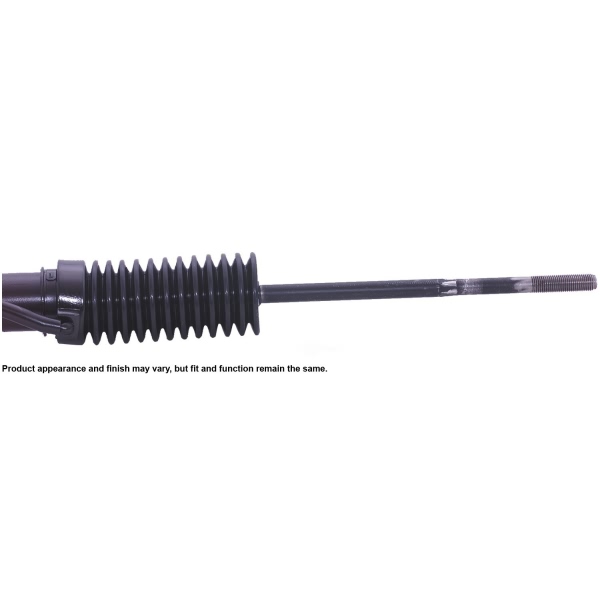

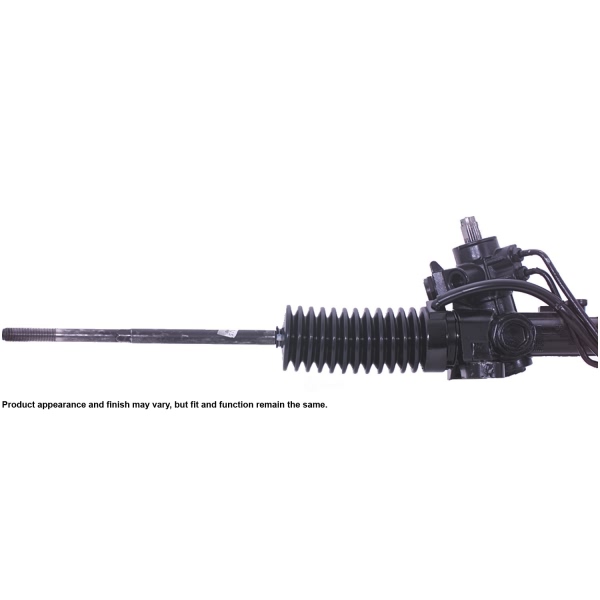

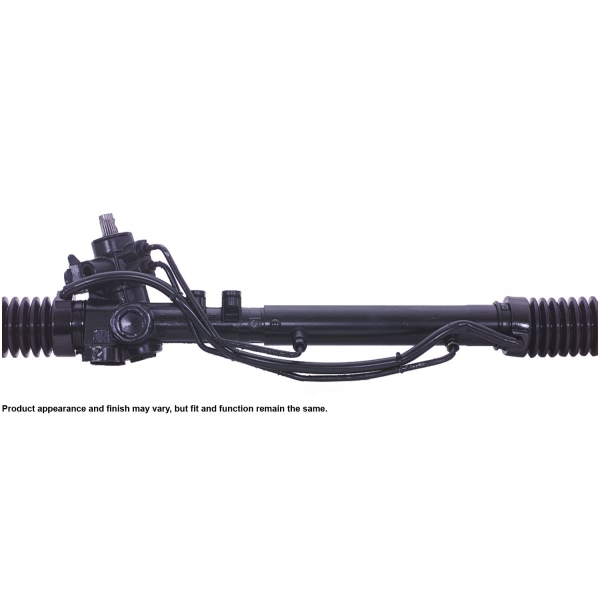

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 3.813" |
Hose Port Type | O-Ring |
Import or Domestic | Import |
Input Shaft Diameter (in) | 0.686" |
Input Shaft Length (in) | 1.125" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 50.625" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 2.000" |
Total Turns Lock to Lock | 3.19 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
1995-2002 Volkswagen Cabrio | All Trims | All Engines |
1992-1995 Volkswagen Corrado | All Trims | All Engines |
1995-1996 Volkswagen Derby | All Trims | All Engines |
1993-1998 Volkswagen Golf | All Trims | All Engines |
1999 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
1993 Volkswagen Jetta | All Trims | All Engines |
1994 Volkswagen Jetta | Limited Edition | All Engines |
1994-1995 Volkswagen Jetta | Base | All Engines |
1994-1995 Volkswagen Jetta | Carat | All Engines |
1994-1995 Volkswagen Jetta | CL | All Engines |
