Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-366 |

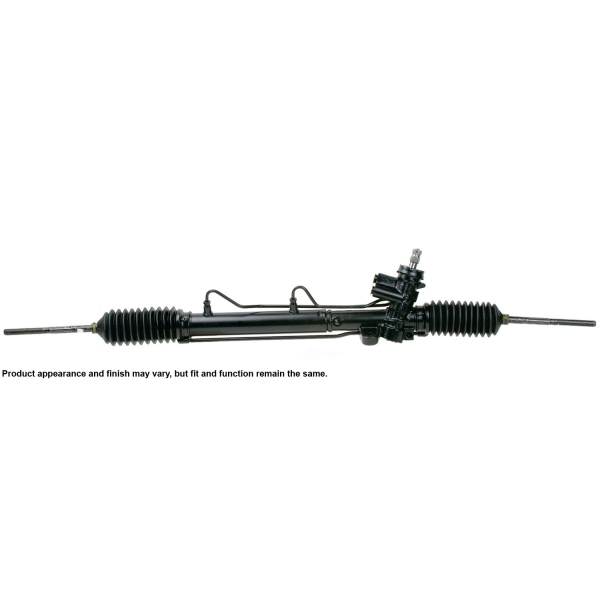

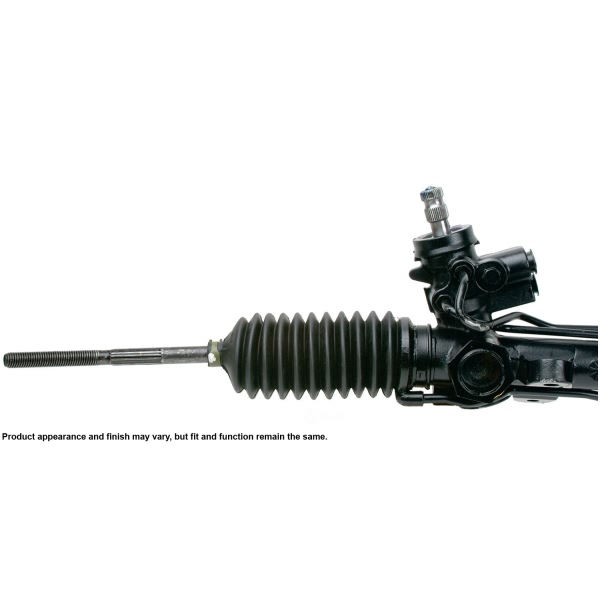

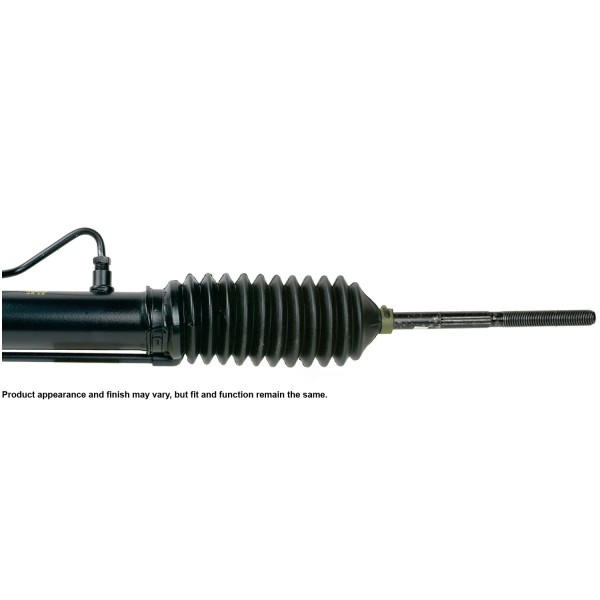

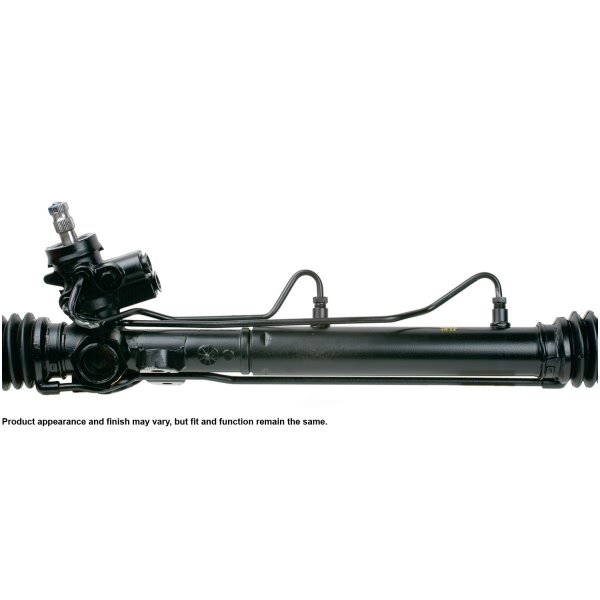

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 3.625" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.75" |
Input Shaft Length (in) | 1.5" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 46.000" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 3.123" |
Total Turns Lock to Lock | 2.5 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
2003-2009 Chrysler PT Cruiser | All Trims | All Engines |
