Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-334 |

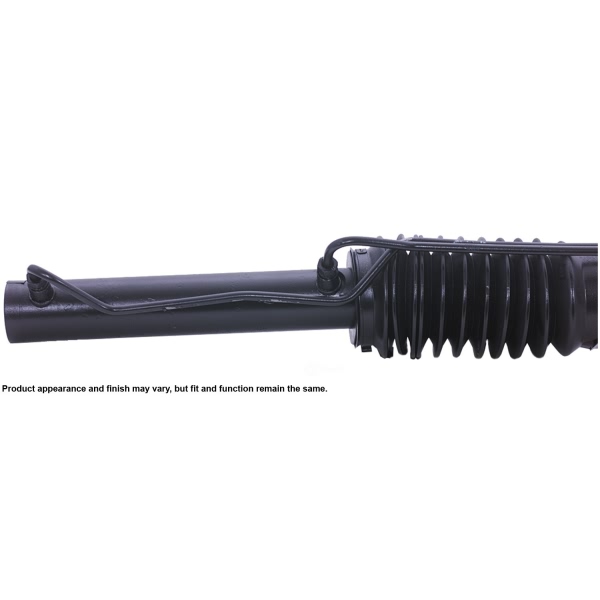

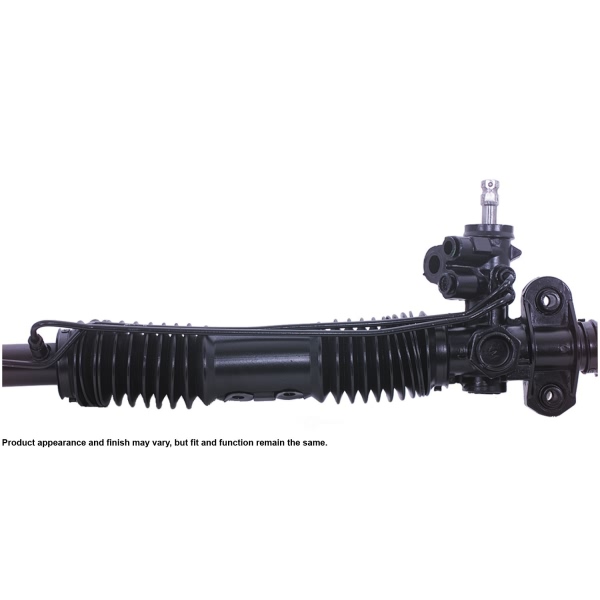

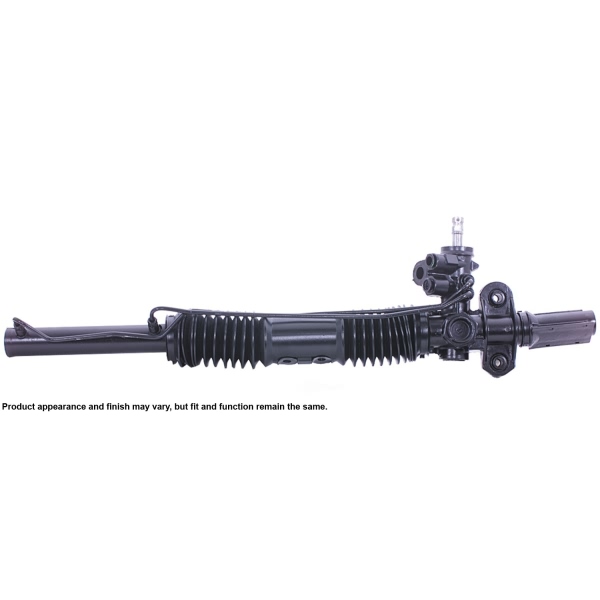

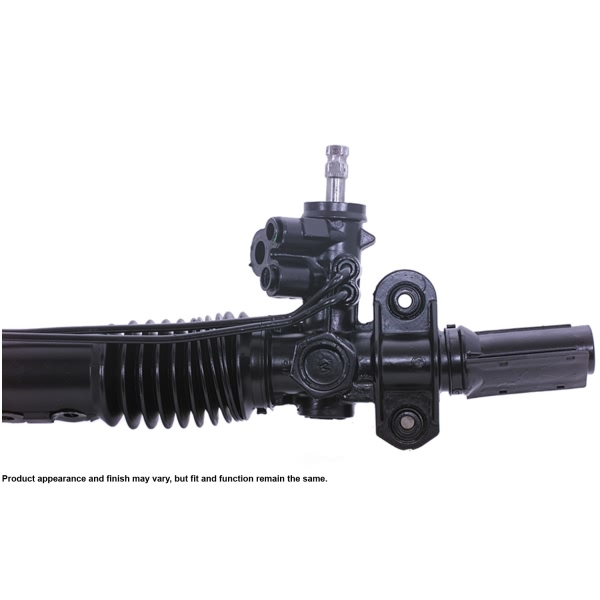

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 3.750" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.725" |
Input Shaft Length (in) | 2.125" |
Number of Mounting Holes | 3 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 34.500" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Total Turns Lock to Lock | 3.13 |
Type | Complete Unit |
Without | Tie Rod Ends |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Chrysler Concorde | All Trims | All Engines |
1996-1997 Chrysler Intrepid | All Trims | All Engines |
1996-1997 Chrysler LHS | All Trims | All Engines |
1996 Chrysler New Yorker | All Trims | All Engines |
1996-1997 Dodge Intrepid | All Trims | All Engines |
1996-1997 Eagle Vision | All Trims | All Engines |
