Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-313 |

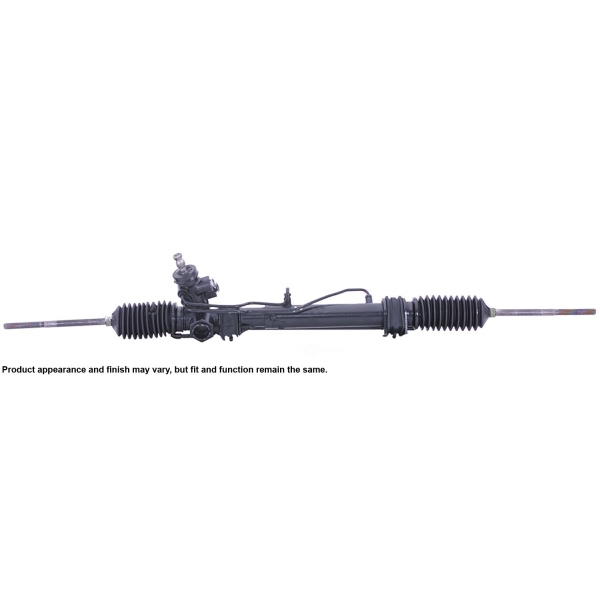

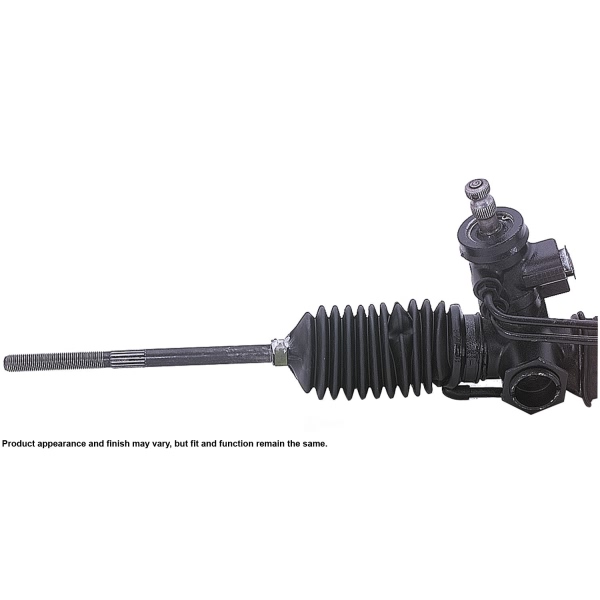

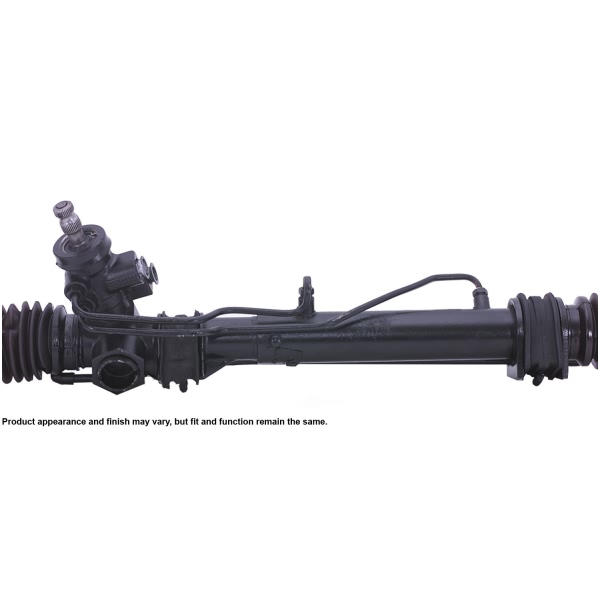

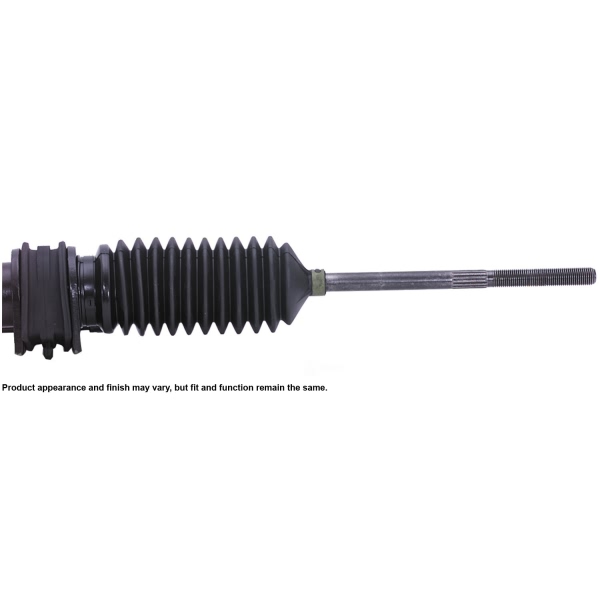

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 13.000" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.725" |
Input Shaft Length (in) | 1.75" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 46.750" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 2.750" |
Total Turns Lock to Lock | 2.63 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
1988-1993 Chrysler Dynasty | All Trims | All Engines |
1990-1993 Chrysler Imperial | All Trims | All Engines |
1989 Chrysler LeBaron | Base | All Engines |
1989 Chrysler LeBaron | GT | All Engines |
1989 Chrysler LeBaron | High Line | All Engines |
1989 Chrysler LeBaron | Premium | All Engines |
1990 Chrysler LeBaron | All Trims | All Engines |
1991 Chrysler LeBaron | Base | All Engines |
1991 Chrysler LeBaron | GTC | All Engines |
1991 Chrysler LeBaron | LX | All Engines |
