Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-3105 |

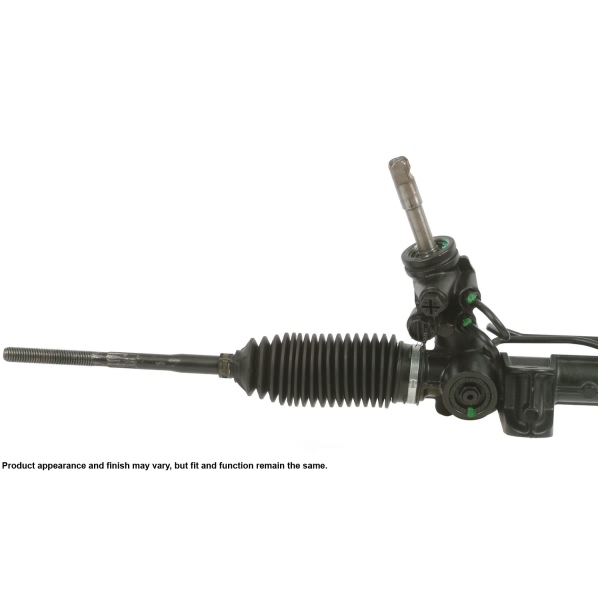

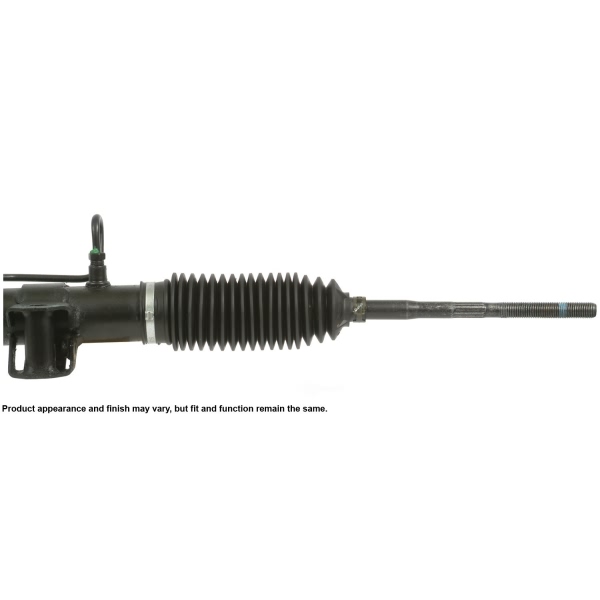

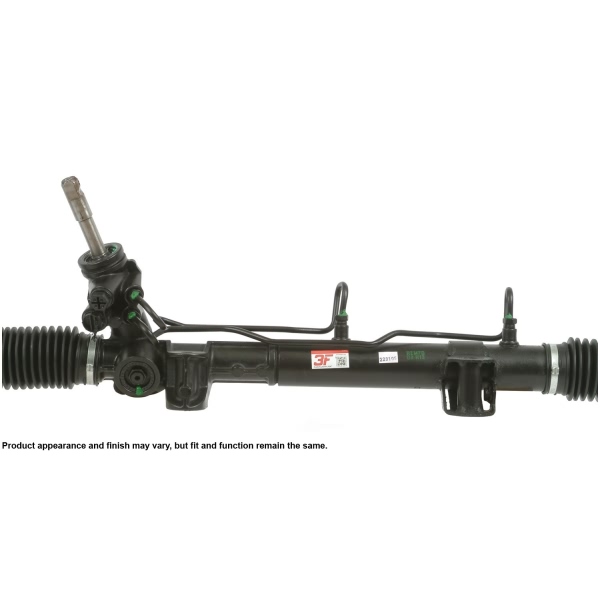

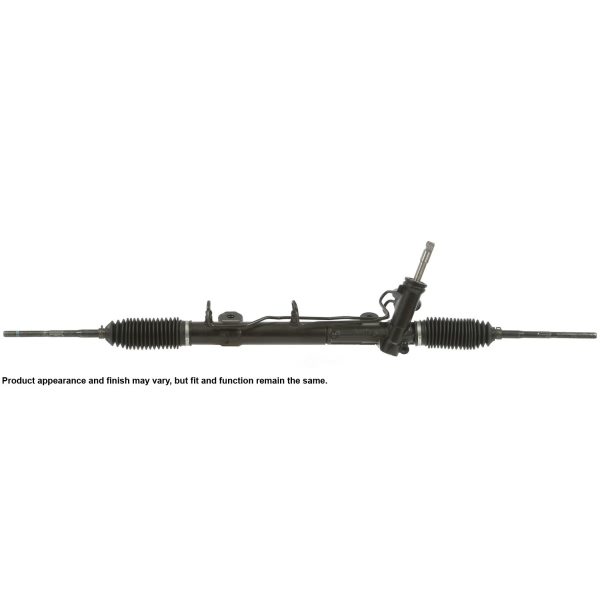

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 11.250" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.625" |
Input Shaft Length (in) | 3.3125" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 47.500" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 3.221" |
Total Turns Lock to Lock | 2.81 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
2011-2012 Dodge Caliber | All Trims | All Engines |
2011-2017 Jeep Compass | All Trims | All Engines |
2011-2017 Jeep Patriot | All Trims | All Engines |
