Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-305 |

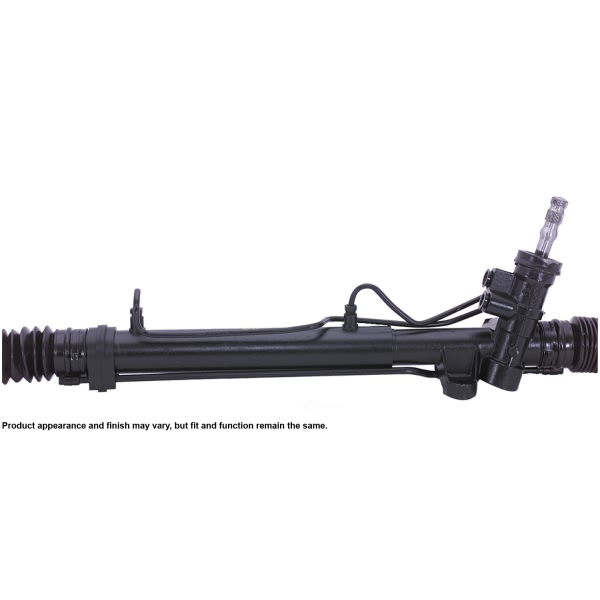

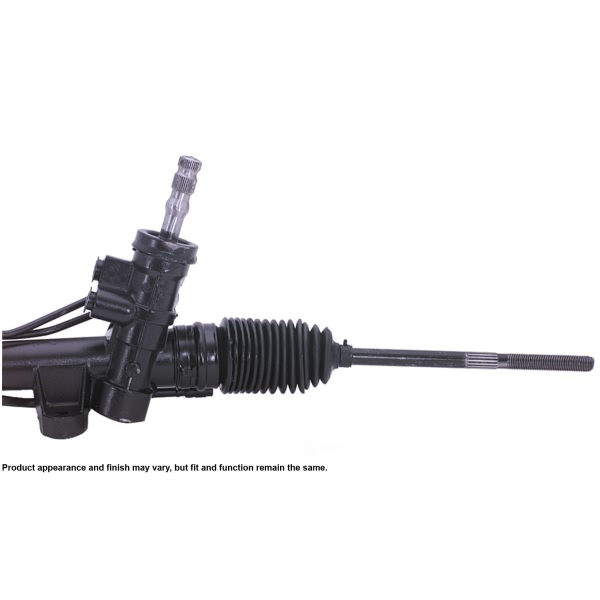

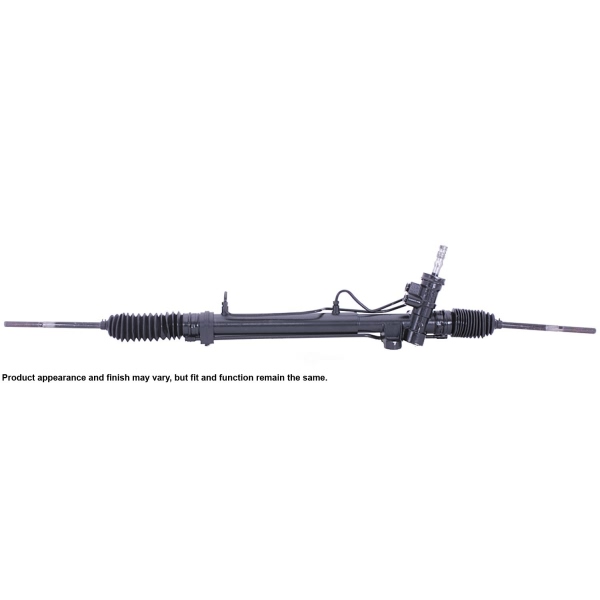

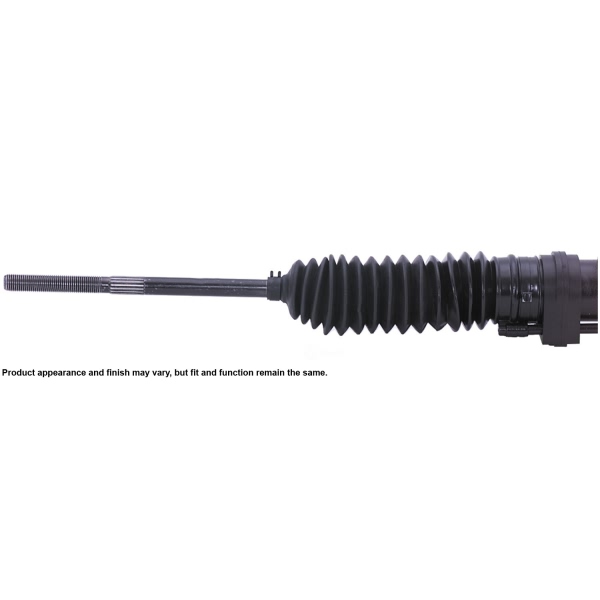

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 3.000" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.725" |
Input Shaft Length (in) | 2.875" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 49.250" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 2.25" |
Total Turns Lock to Lock | 2.94 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
1984-1988 Dodge Caravan | All Trims | All Engines |
1988 Dodge Grand Caravan | All Trims | All Engines |
1984-1988 Dodge Mini Ram | All Trims | All Engines |
1988 Plymouth Grand Voyager | All Trims | All Engines |
1984-1988 Plymouth Voyager | All Trims | All Engines |
