Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-103 |

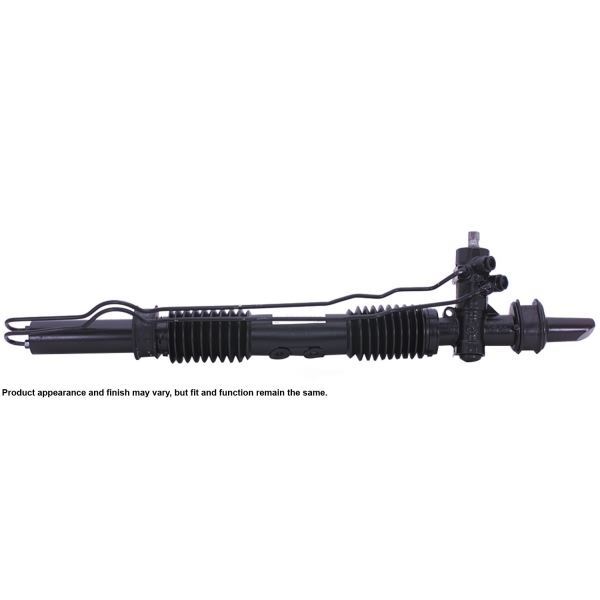

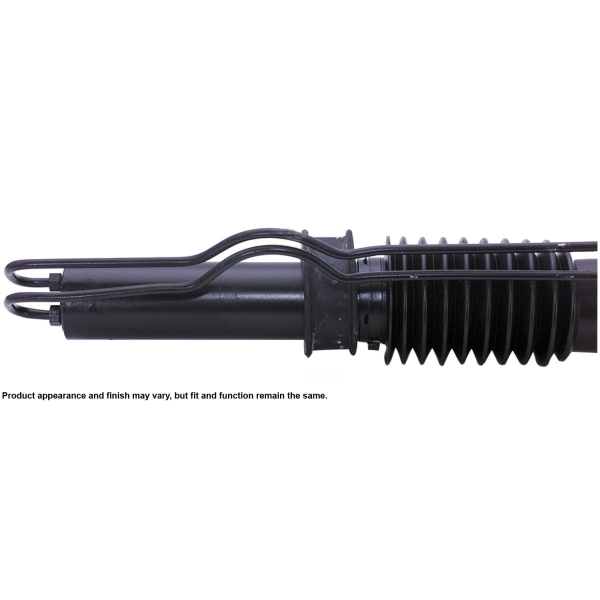

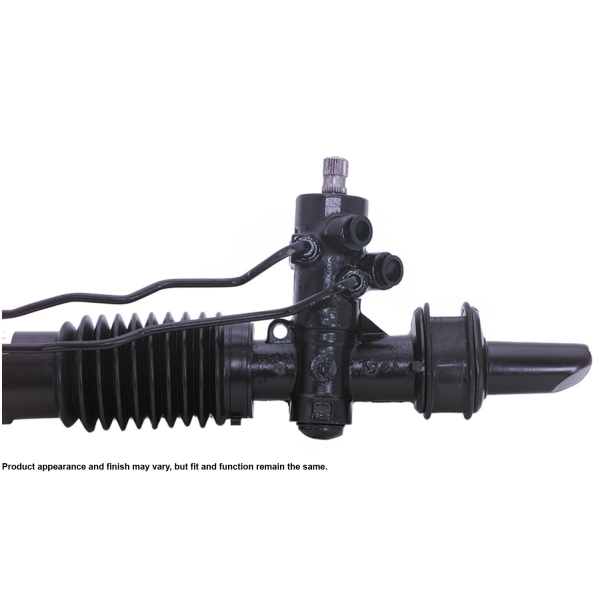

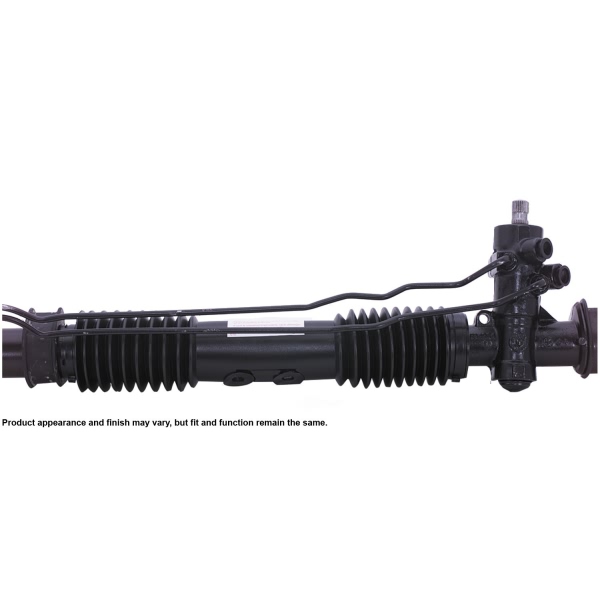

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 1.969" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.786" |
Input Shaft Length (in) | 1.25" |
Input Shaft Type | With Splined Input Shaft |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 32.750" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Total Turns Lock to Lock | 2.81 |
Type | Complete Unit |
Without | Tie Rod Ends |
Year Make Model | Trim | Engine |
---|---|---|
1982-1986 Buick Skyhawk | All Trims | All Engines |
1986 Buick Skylark | All Trims | All Engines |
1986 Buick Somerset | All Trims | All Engines |
1985 Buick Somerset Regal | All Trims | All Engines |
1982-1986 Cadillac Cimarron | All Trims | All Engines |
1982-1986 Chevrolet Cavalier | All Trims | All Engines |
1985-1986 Oldsmobile Calais | All Trims | All Engines |
1982-1984 Oldsmobile Firenza | All Trims | All Engines |
1985-1986 Oldsmobile Firenza | All Trims | 4 Cyl 1.8L |
1985-1986 Oldsmobile Firenza | All Trims | 4 Cyl 2.0L |
