Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Cardone Reman |
Part Number | 22-101 |

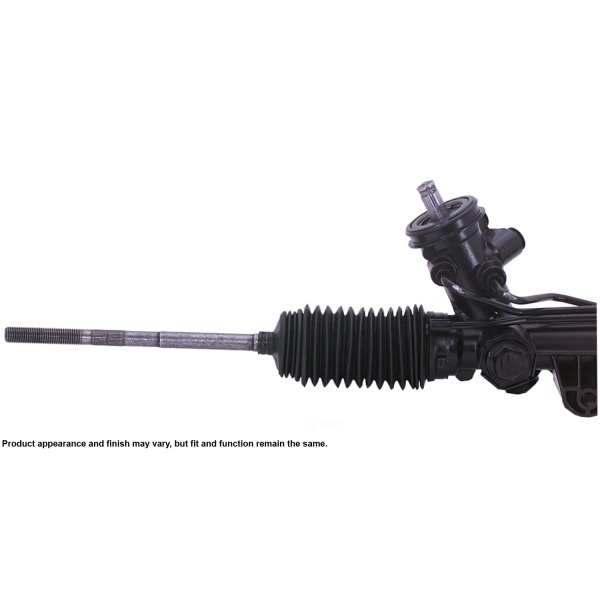

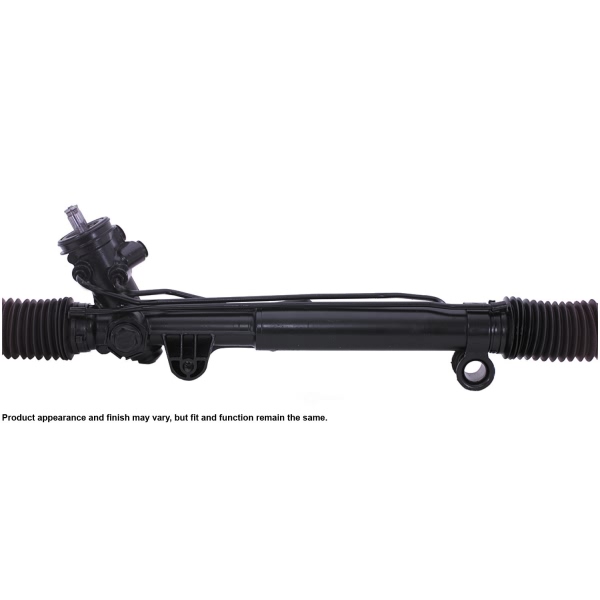

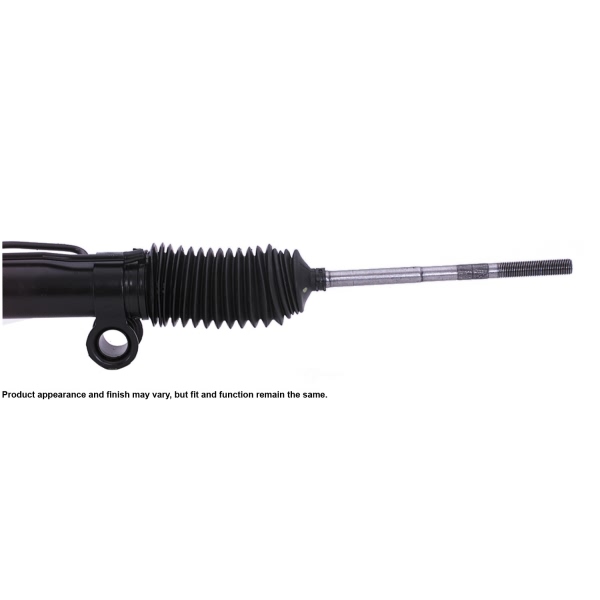

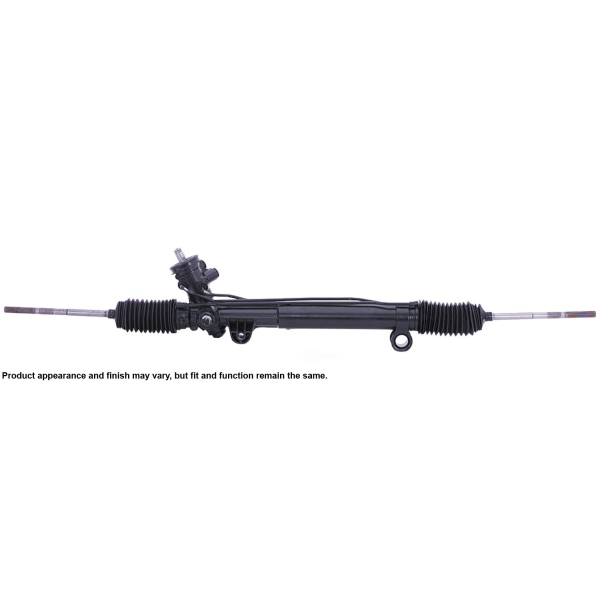

Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
Casting Material | Steel/Aluminum |
Distance Between Mounting Holes (in) | 12.250" |
Hose Port Type | O-Ring |
Import or Domestic | Domestic |
Input Shaft Diameter (in) | 0.656" |
Input Shaft Length (in) | 1.125" |
Number of Mounting Holes | 2 |
Pressure Port Thread Size | M18 x 1.5 |
Rack Length (in) | 46.500" |
Return Port Thread Size | M16 x 1.5 |
Steering Rack Finish | Black |
Thread Length (in) | 2.5" |
Total Turns Lock to Lock | 2.88 |
Type | Complete Unit |
Year Make Model | Trim | Engine |
---|---|---|
1982-1993 Buick Century | All Trims | All Engines |
1982-1985 Buick Skylark | All Trims | All Engines |
1982-1990 Chevrolet Celebrity | All Trims | All Engines |
1982-1985 Chevrolet Citation | All Trims | All Engines |
1984-1985 Chevrolet Citation II | All Trims | All Engines |
1982-1993 Oldsmobile Cutlass Ciera | All Trims | All Engines |
1987-1993 Oldsmobile Cutlass Cruiser | All Trims | All Engines |
1982-1984 Oldsmobile Omega | All Trims | All Engines |
1982 Pontiac 6000 | All Trims | All Engines |
1983-1985 Pontiac 6000 | Base | All Engines |
