Vehicle Specific
Check if it fits by entering your vehicle infoBrand | brembo |

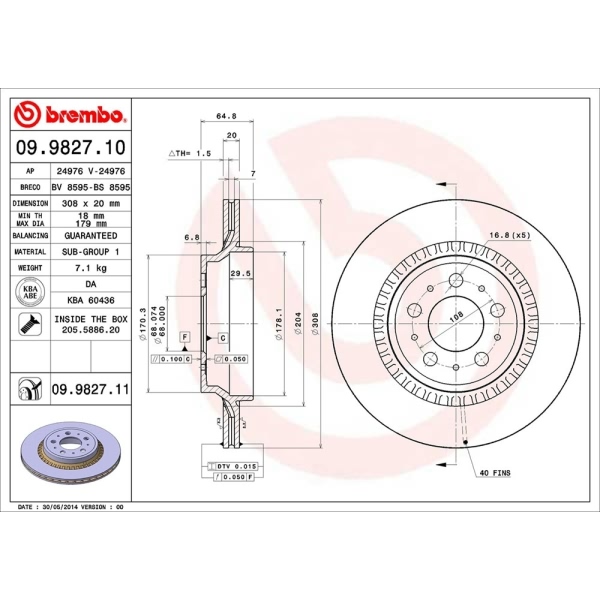

Part Number | 09.9827.11 |

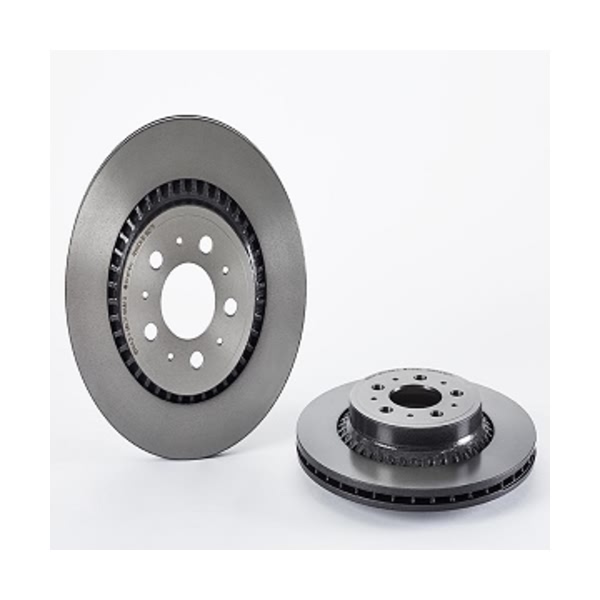

Part Description | UV Coated Series Vented Rear Brake Rotor |
Center Diameter | 68 |
Coated | UV Coated |
Diameter (mm) | 308 |
Fixing Screws | included |
Height | 64.8 |
Material | Grey Cast Iron |
Minimum Thickness (mm) | 18 |
Nominal Thickness (mm) | 20 |
Number of Holes | 5 |
OE Part Number | 86249265, 8624926-0, 314231520, 8624926, 31471824-0 |
Quantity | 5 |
Screw Material | Included |
Solid Or Vented Type Rotor | vented |
Torque Spec(NM) | 140 |
Year Make Model | Trim | Engine |
---|---|---|
2003 Volvo XC90 | Base | All Engines |
2003-2005 Volvo XC90 | T6 | All Engines |
2004-2006 Volvo XC90 | 2.5T | All Engines |
2005-2011 Volvo XC90 | V8 | All Engines |
2006 Volvo XC90 | V8 Ocean Race | All Engines |
2007-2008 Volvo XC90 | V8 Sport | All Engines |
2007-2014 Volvo XC90 | 3.2 | All Engines |
2008 Volvo XC90 | 3.2 Sport | All Engines |
2010 Volvo XC90 | R-Design | All Engines |
2013-2014 Volvo XC90 | 3.2 R-Design | All Engines |
