Vehicle Specific
Check if it fits by entering your vehicle infoBrand | brembo |

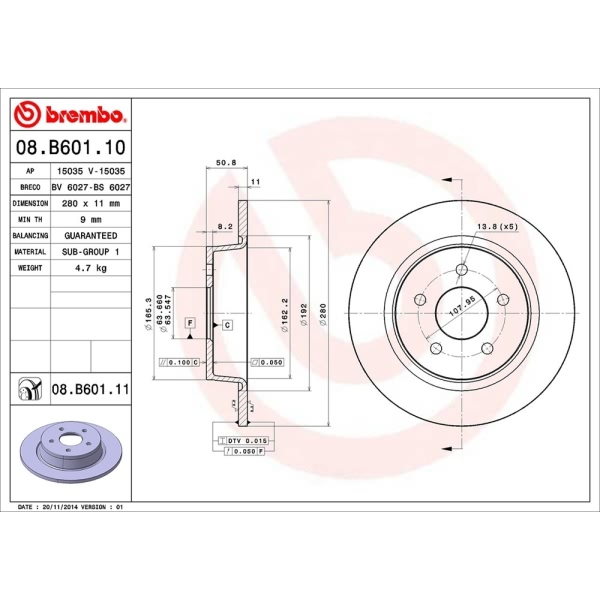

Part Number | 08.B601.11 |

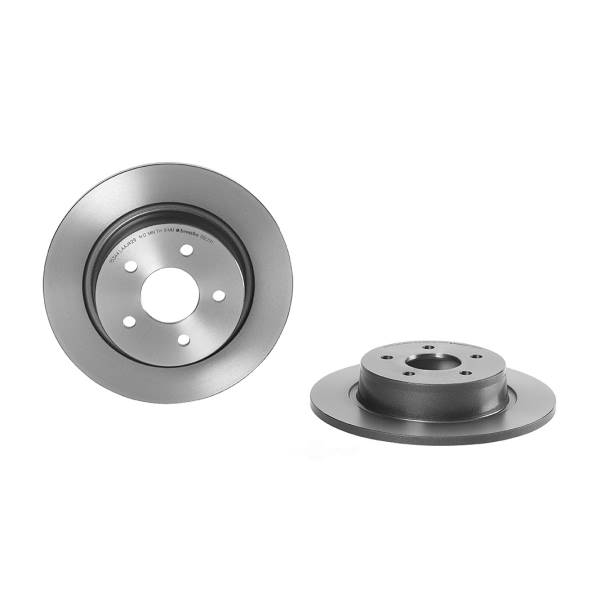

Part Description | UV Coated Series Solid Rear Brake Rotor |
Center Diameter | 63.5 |
Coated | UV Coated |
Diameter (mm) | 280 |
Height | 50.8 |
Material | Grey Cast Iron |
Minimum Thickness (mm) | 9 |
Nominal Thickness (mm) | 11 |
Number of Holes | 5 |
OE Part Number | CV6Z2C026B, CV6Z2C026C, AV612A315BA, AV612A315AA, 1683383, 1683384 |
Quantity | 5 |
Solid Or Vented Type Rotor | solid |
Torque Spec(NM) | 90 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Ford C-Max | Energi SEL | All Engines |
2013-2016 Ford C-Max | Hybrid SEL | All Engines |
2013-2018 Ford C-Max | Hybrid SE | All Engines |
2017 Ford C-Max | Energi SE | All Engines |
2017 Ford C-Max | Energi Titanium | All Engines |
2017-2018 Ford C-Max | Hybrid Titanium | All Engines |
2013 Ford Escape | SEL | All Engines |
2013-2016 Ford Escape | S | All Engines |
2013-2016 Ford Escape | SE | All Engines |
2013-2016 Ford Escape | Titanium | All Engines |
