Vehicle Specific
Check if it fits by entering your vehicle infoBrand | brembo |

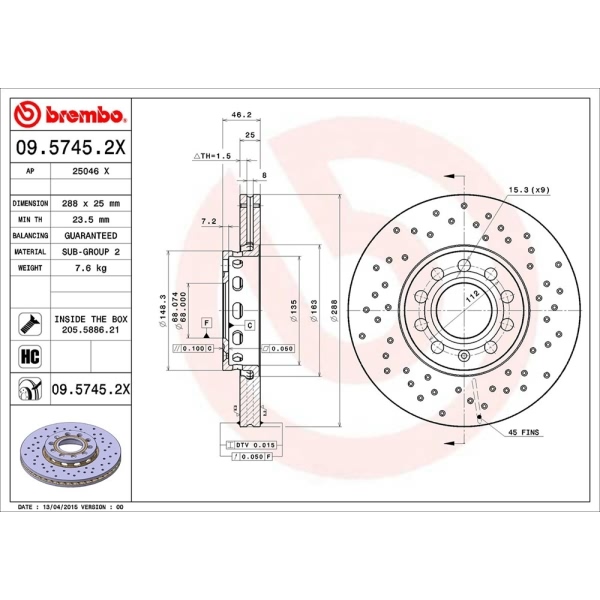

Part Number | 09.5745.2X |

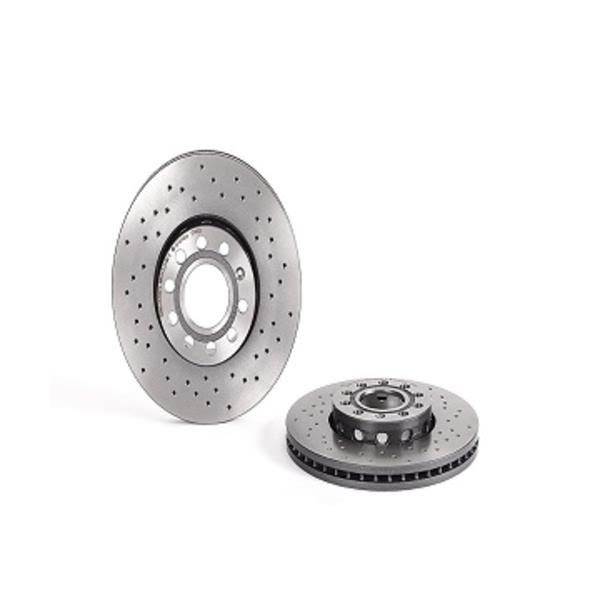

Part Description | Premium Xtra Cross Drilled UV Coated 1-Piece Front Brake Rotors |
Brake Surface Finish | Drilled |
Center Diameter | 68 |
Coated | UV Coated |
Diameter (mm) | 288 |
Fixing Screws | included |
Height | 46.2 |
Material | High Carbon |
Minimum Thickness (mm) | 23.5 |
Nominal Thickness (mm) | 25 |
Number of Holes | 5 |
Quantity | 5 |
Screw Material | Included |
Solid Or Vented Type Rotor | vented |
Torque Spec(NM) | 120 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Audi 100 | Base | All Engines |
1992-1994 Audi 100 | CS | All Engines |
1992-1994 Audi 100 | S | All Engines |
1992-1994 Audi 100 Quattro | CS | All Engines |
1996-2005 Audi A4 | Base | All Engines |
1998-2000 Audi A4 | Avant | All Engines |
2003-2005 Audi A4 | Cabriolet | All Engines |
1996-2005 Audi A4 Quattro | Base | All Engines |
1998-2005 Audi A4 Quattro | Avant | All Engines |
2004-2005 Audi A4 Quattro | Cabriolet | All Engines |
