Dorman Leaf Spring at AutoPartsPrime

Select your vehicle for the best product fit

Select Vehicle by Model
Select Vehicle by VIN

Select Year

Select Make

Select Model

or

Enter the VIN of Your Vehicle

Home>Dorman>Leaf Spring

Dorman Leaf Spring

< Back to View All

Prices
- $49.99 and under
- $50 to $99.99
- $100 to $199.99
- $200 to $299.99
- $300 and over

39 Products found

Show Item:

30
60
90

Sort by:

Recommended

Filter

Sort

View by

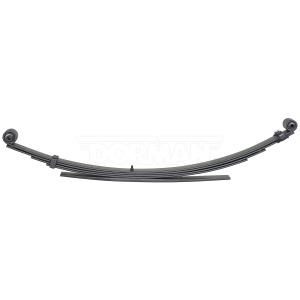

Dorman® Rear Passenger Side Leaf Spring
PartNumber: 929-406
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 5
Length A: 31.38"
Length B: 32"
Load Rate: 1900 lbs
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 482100C100, 482100C140, 482100C280, 482100C300, 482100C340
Pack Thickness: 2.13"
Spring Arc Length: 63.38"
SRI#: 90-363
Suspension Grade Type: Standard
UPC: 889245159205
Width: 2.36"
Part Description: Rear Passenger Side Leaf Spring
More Info
$248.03

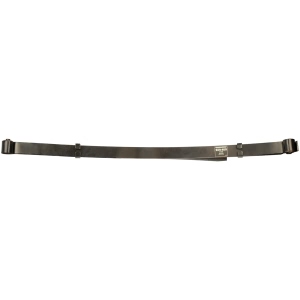

Dorman® Rear Passenger Side Leaf Spring
PartNumber: 929-404
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Up Turned Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 4 (3/1)
Length A: 29.33"
Length B: 26.38"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 4821004360
Pack Thickness: 1.41"
Spring Arc Length: 4.76"
SRI#: 90-275
Suspension Grade Type: Standard
UPC: 885484791947
Width: 2.36"
Part Description: Rear Passenger Side Leaf Spring
More Info
$285.75

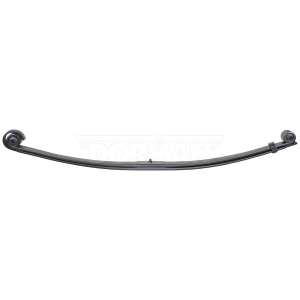

Dorman® Rear Leaf Spring
PartNumber: 929-146
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 5 (4/1)
Length A: 33.25"
Length B: 33.25"
Load Rate: 3300 lbs
Material: Steel
Mounting Hardware: Without
OE Part Number: 7C3Z5560FD
Pack Thickness: 2.5"
Spring Arc Length: 6.25"
SRI#: 43-1681
Suspension Grade Type: Standard
UPC: 885484735088
Width: 3"
Part Description: Rear Leaf Spring
More Info
$364.91

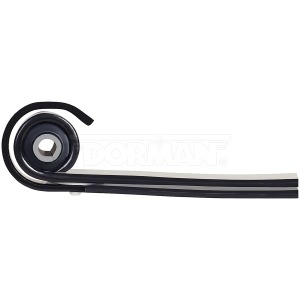

Dorman® Rear Leaf Spring
PartNumber: 929-600
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Leaf Quantity: 3.5
Length A: 29.33"
Length B: 29.29"
Load Rate: 1750 lbs
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 5118621AA
Pack Thickness: 2.19"
Packaging: Bulk
Spring Arc Length: 8"
SRI#: 46-1343
Suspension Grade Type: Standard
UPC: 019495389323
Width: 2.8"
Part Description: Rear Leaf Spring
More Info
$353.24
Dorman® Rear Leaf Spring
PartNumber: 929-129
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 6 (5/1)
Length A: 32"
Length B: 32"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 15063185
Pack Thickness: 2.89"
Spring Arc Length: 7.25"
SRI#: 22-1289
Suspension Grade Type: Standard
UPC: 885484360860
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$325.63
Dorman® Rear Driver Side Leaf Spring
PartNumber: 929-113
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Down Turned Eye
End 2 Type: Down Turned Eye
Helper Spring: No
Leaf Quantity: 3
Length A: 26.77"
Length B: 27.16"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 48220-04190, 48220-04191, 48220-35040
Packaging: Card
Spring Arc Length: 6.5"
SRI#: 90-479, 90-299
Suspension Grade Type: Standard
UPC: 019495740049
Width: 2.36"
Part Description: Rear Driver Side Leaf Spring
More Info
$388.74
Dorman® Rear Leaf Spring
PartNumber: 929-234
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Up Turned Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 9
Length A: 23.88"
Length B: 31"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 4C2Z 5560-VA, 5C2Z 5560-VA, F3UA5560MA, F3UZ 5560-A, F5UZ 5560-VA
Pack Thickness: 3.38"
Spring Arc Length: 1.88"
SRI#: 43-1085
Suspension Grade Type: Standard
UPC: 885484368903
Width: 3"
Part Description: Rear Leaf Spring
More Info
$291.27
Dorman® Rear Leaf Spring
PartNumber: 929-228
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 3 (2/1)
Length A: 25.63"
Length B: 31.38"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 6L345560RD, 6L3Z5560RB, 6L3Z5560RD
Pack Thickness: 1.43"
Spring Arc Length: 7.25"
SRI#: 43-1679
Suspension Grade Type: Standard
UPC: 885484368187
Width: 3"
Part Description: Rear Leaf Spring
More Info
$208.60
Dorman® Rear Leaf Spring
PartNumber: 929-128
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 3 (2/1)
Length A: 32"
Length B: 32"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 15895991, 20840011, 20870051, 22787764, 25823546, 25841516, 25976356
Pack Thickness: 1.85"
Spring Arc Length: 7.5"
SRI#: 22-1567
Suspension Grade Type: Standard
UPC: 885484369023
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$212.45
Dorman® Rear Leaf Spring
PartNumber: 929-107
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 5
Length A: 32"
Length B: 32"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 15659739
Pack Thickness: 2.4"
Packaging: Bulk
Spring Arc Length: 7.56"
SRI#: 22-795
Suspension Grade Type: Standard
UPC: 019495153146
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$241.75
Dorman® Rear Leaf Spring
PartNumber: 929-233
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Leaf Quantity: 4 (3/1)
Length A: 25.63"
Length B: 31.38"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 4L345560PK, 4L3Z 5560-PC
Pack Thickness: 1.75"
Spring Arc Length: 7.63"
SRI#: 43-1555
Suspension Grade Type: Standard
UPC: 885484368859
Width: 3"
Part Description: Rear Leaf Spring
More Info
$241.30
Dorman® Rear Leaf Spring
PartNumber: 929-115
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 3
Length A: 32"
Length B: 32"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 15246971
Pack Thickness: 1.5"
Packaging: Card
Spring Arc Length: 7.5"
SRI#: 22-1503
Suspension Grade Type: Standard
UPC: 037495169837
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$168.26
Dorman® Rear Passenger Side Leaf Spring
PartNumber: 929-126
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 5 (4/1)
Length A: 32"
Length B: 32"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 15711753, 20870047
Pack Thickness: 2.51"
Spring Arc Length: 6.63"
SRI#: 22-1269
Suspension Grade Type: Standard
UPC: 885484367951
Width: 2.5"
Part Description: Rear Passenger Side Leaf Spring
More Info
$302.97
Dorman® Rear Leaf Spring
PartNumber: 929-224
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 5 (4/1)
Length A: 25"
Length B: 33.25"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: F81A5560CD, F81Z 5560-CA, YC3Z 5560-DA
Pack Thickness: 2.23"
Spring Arc Length: 7.75"
SRI#: 43-1263
Suspension Grade Type: Standard
UPC: 885484362277
Width: 3"
Part Description: Rear Leaf Spring
More Info
$242.90
Dorman® Front Passenger Side Leaf Spring
PartNumber: 929-230
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 2/PD
Length A: 23.88"
Length B: 28.38"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: E3TA5310ABA, E3TZ 5310-R
Pack Thickness: 2.05"
Spring Arc Length: 1.75"
SRI#: 43-498
Suspension Grade Type: Standard
UPC: 885484368583
Width: 3"
Part Description: Front Passenger Side Leaf Spring
More Info
$219.88
Dorman® Front Leaf Spring
PartNumber: 929-225
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Up Turned Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 2
Length A: 27.5"
Length B: 28.13"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 1C3Z 5310-AF, 2C3Z5310AF, F81Z 5310-AG, YC3Z 5310-AN
Pack Thickness: 1.39"
Spring Arc Length: 5"
SRI#: 43-818
Suspension Grade Type: Standard
UPC: 885484367630
Width: 3"
Part Description: Front Leaf Spring
More Info
$182.02
Dorman® Rear Leaf Spring
PartNumber: 929-205
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 4
Length A: 25"
Length B: 32.5"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: E9TA5560KA, E9TZ5560J
Pack Thickness: 1.5"
Packaging: Bulk
Spring Arc Length: 9.13"
SRI#: 43-965
Suspension Grade Type: Standard
UPC: 019495153252
Width: 3"
Part Description: Rear Leaf Spring
More Info
$156.13
Dorman® Rear Leaf Spring
PartNumber: 929-302
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Up Turned Eye
End 2 Type: Down Turned Eye
Helper Spring: No
Leaf Quantity: 3
Length A: 27.88"
Length B: 31.13"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 52039325, 52106290
Pack Thickness: 2"
Packaging: Card
Spring Arc Length: 6.94"
SRI#: 34-1337
Suspension Grade Type: Standard
UPC: 885484540774
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$227.91
Dorman® Rear Direct Replacement Passenger Side Leaf Spring
PartNumber: 929-400
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 4
Length A: 22.52"
Length B: 28.62"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 48210-04051, 48210-04052, 48210-04053, 48210-04080, 48210-04081, 48220-04020, 48220-04021, 48220-04022, 48220-04030, 48220-04031
Packaging: Bulk
Spring Arc Length: 5.63"
SRI#: 90-173
Suspension Grade Type: Standard
UPC: 019495153184
Width: 2.36"
Part Description: Rear Direct Replacement Passenger Side Leaf Spring
More Info
$219.46
Dorman® Rear Leaf Spring
PartNumber: 929-502
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 3/1
Length A: 24.80"
Length B: 28.27"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 55020EA20A
Pack Thickness: 1.57"
Spring Arc Length: 7.28"
SRI#: 69-293
Suspension Grade Type: Standard
UPC: 885484640238
Width: 2.36"
Part Description: Rear Leaf Spring
More Info
$181.02
Dorman® Rear Leaf Spring
PartNumber: 929-501
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Up Turned Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 3 (2/1)
Length A: 25.75"
Length B: 27.52"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 550208Z900
Pack Thickness: 1.34"
Spring Arc Length: 8.50"
SRI#: 69-275
Suspension Grade Type: Standard
UPC: 885484640214
Width: 2.36"
Part Description: Rear Leaf Spring
More Info
$182.82
Dorman® Rear Leaf Spring
PartNumber: 929-140
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 4 (3/1)
Length A: 31.25"
Length B: 32"
Load Rate: 1715 lbs.
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 52113141AI
Pack Thickness: 1.9"
Spring Arc Length: 7.56"
SRI#: 34-1451
Suspension Grade Type: Standard
UPC: 885484731141
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$191.09
Dorman® Rear Leaf Spring
PartNumber: 929-105
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 4
Length A: 26"
Length B: 28"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 14060056
Pack Thickness: 1.5"
Packaging: Bulk
Spring Arc Length: 7.5"
SRI#: 22-687
Suspension Grade Type: Standard
UPC: 019495153122
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$131.89
Dorman® Rear Direct Replacement Leaf Spring
PartNumber: 929-301
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Down Turned Eye
End 2 Type: Down Turned Eye
Helper Spring: No
Leaf Quantity: 4
Length A: 23"
Length B: 28.63"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 4886185AB, 4886187AB, 52000545AB
Packaging: Bulk
Spring Arc Length: 5.5"
SRI#: 97-539
Suspension Grade Type: Standard
UPC: 019495153177
Width: 2.5"
Part Description: Rear Direct Replacement Leaf Spring
More Info
$147.60
Dorman® Rear Leaf Spring
PartNumber: 929-229
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 3 (2/1)
Length A: 25.69"
Length B: 30.94"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: F37A5560BB, F37Z 5560-A
Pack Thickness: 1.37"
Spring Arc Length: 6.56"
SRI#: 43-1069
Suspension Grade Type: Standard
UPC: 885484368347
Width: 2.5"
Part Description: Rear Leaf Spring
More Info
$132.92
Dorman® Rear Leaf Spring
PartNumber: 929-148
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 4 (1/2/1)
Length A: 33.2"
Length B: 33.2"
Load Rate: 3200 lbs
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: BC3Z5560E
Pack Thickness: 4.1"
Spring Arc Length: 7"
SRI#: 43-1853
Suspension Grade Type: Standard
UPC: 885484736344
Width: 3"
Part Description: Rear Leaf Spring
More Info
$437.36
Dorman® Rear Leaf Spring
PartNumber: 929-601
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 1
Length A: 29.33"
Length B: 29.22"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 68013784AA
Pack Thickness: 1"
Packaging: Bulk
Spring Arc Length: 4.06"
Suspension Grade Type: Standard
UPC: 019495389330
Width: 2.75"
Part Description: Rear Leaf Spring
More Info
$277.01
Dorman® Rear Leaf Spring
PartNumber: 929-143
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 4 (3/1)
Length A: 30.5"
Length B: 30.5"
Load Rate: 3300 lbs
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 04670950AA
Pack Thickness: 3.5"
Spring Arc Length: 6.56"
SRI#: 34-1633
Suspension Grade Type: Standard
UPC: 885484733060
Width: 3"
Part Description: Rear Leaf Spring
More Info
Dorman® Rear Passenger Side Leaf Spring
PartNumber: 929-403
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Up Turned Eye
End 2 Type: Up Turned Eye
Helper Spring: No
Leaf Quantity: 3
Length A: 28.15"
Length B: 31.69"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 448335090
Pack Thickness: 1.65"
Packaging: Bulk
Spring Arc Length: 8.66"
SRI#: 90-221
Suspension Grade Type: Standard
UPC: 885484640177
Width: 2.40"
Part Description: Rear Passenger Side Leaf Spring
More Info
Dorman® Rear Leaf Spring
PartNumber: 929-108
Product Specifications
Axle Modification Needed: No
Bushing: Without
Color: Black
End 1 Type: Berlin Eye
End 2 Type: Berlin Eye
Helper Spring: No
Leaf Quantity: 6
Length A: 32"
Length B: 32"
Material: Steel
Maximum Drop: 0
Maximum Lift Height: 0
Mounting Hardware: Without
OE Part Number: 15529528, 15529565, 15604165, 15620358, 15659740, 15976726
Pack Thickness: 2.82"
Packaging: Bulk
Spring Arc Length: 6.44"
SRI#: 22-979
Suspension Grade Type: Standard
UPC: 019495153153
Width: 2.5"
Part Description: Rear Leaf Spring
More Info

1-30 of 39 Results

< Previous

12

Next >

Information

About Us
Help Center
VIN Lookup
Warranty

Customer Service

My Account
Track Order
Shipping Policy
Return Policy

Contact Us

Email Us
Live Chat
1-888-220-8330

© 2006-2024, AutoPartsPrime.com by AutoPartsPrime.com, Inc.

Terms of Use | Privacy Policy | Site Map
