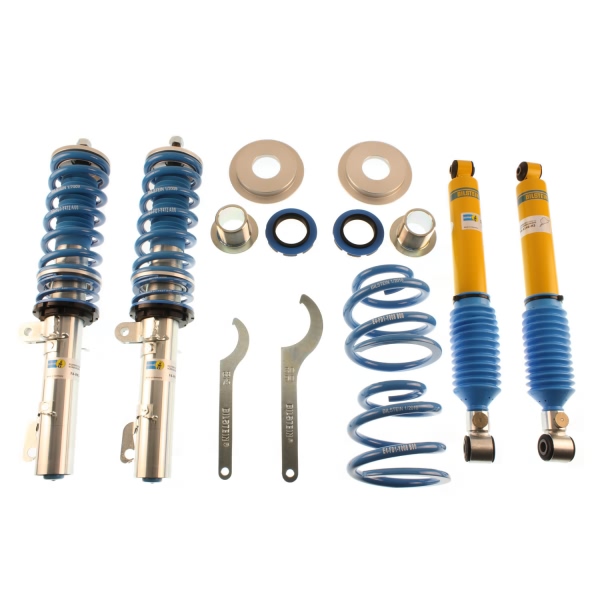

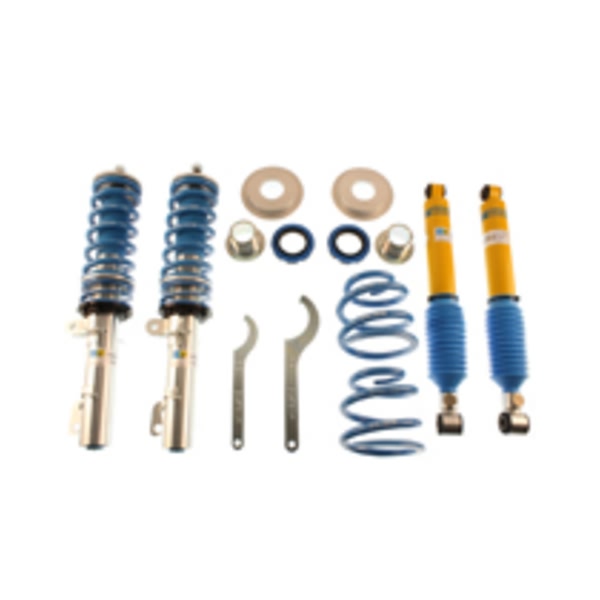

Bilstein® Pss9 Front And Rear Lowering Coilover Kit 48-080422

Bilstein Pss9 Front And Rear Lowering Coilover Kit 48-080422

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Includes
  • Features
  • Installation
  • Warranty
  • Vehicle Fitment
  • Specifications

    BrandBilstein
    Part Number48-080422
    Part DescriptionPss9 Front And Rear Lowering Coilover Kit
    Coil Spring FinishBlue
    Front Axle Load up to1110 kg (2448 lbs)
    Front Drop Height1.2"-2.0"
    Front Shock Absorber Damping Force AdjustmentYes
    Front Shock Absorber Height Adjustment TypeThreaded Spacer
    Rear Axle Load up to920 kg (2029 lbs)
    Rear Drop Height1.2"-2.0"
    Rear Shock Absorber Damping Force AdjustmentYes
    Rear Shock Absorber Height Adjustment TypeThreaded Spacer
    Shock Absorber Adjustment TypeDouble Adjustment
    Shock Absorber Damping TypeInverted
    Shock Absorber FinishZinc Plated (Front), Yellow (Rear)
    Shock Absorber Internal DesignMonotube
    Shock Absorber Levels of Damping9 Levels
    Shock Absorber ReservoirWithout External Reservoir
    Shock Absorber TypeGas Charged
    UPC651860662428
    Warning: California’s Proposition 65

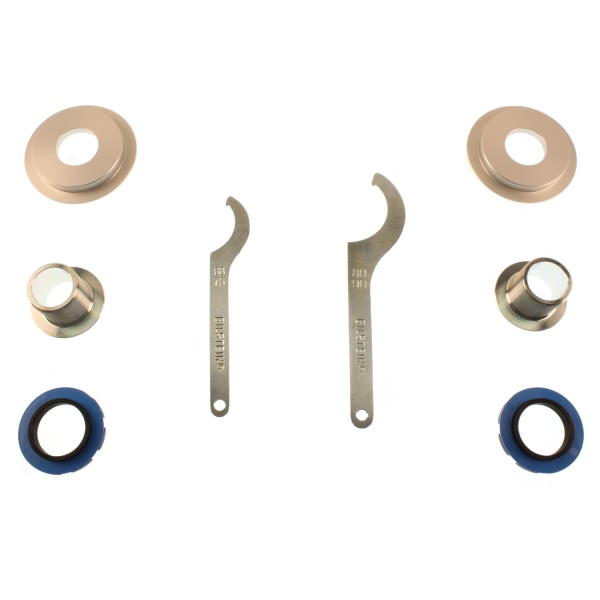

  • Includes

    • (2) Front Coilovers

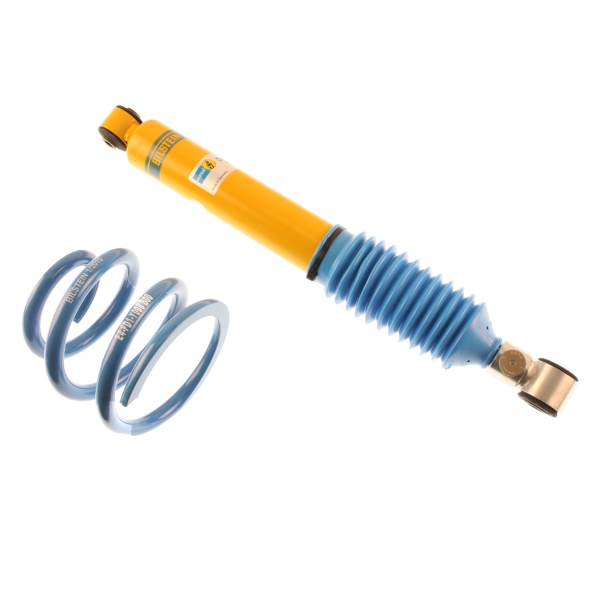

    • (2) Rear Shock Absorbers
    • (2) Rear Coil Springs
    • (2) Rear Height Adjusters
    • Harwdare Kit
  • Features

    Bilstein B16 Series Pss9 Coilover Kit are featured as follows:
    • Design of the inner part in monotube.
    • Installed while the threaded body provides an adjustable range of 20 mm on both axles.
    • Road tested and tuned by BILSTEIN under the rigors of motorsports.
    • These spring plates and lock nuts are made from a unique type of aluminum alloy.
    • An anti-corrosion coating using Triple-C-Technology.
    • Round threads for ease of adjustment.
    • Quality sport springs manufactured from highly durable material.
    • BILSTEIN gas pressure technology.
    • Gas Pressure Technology that prevents oil from foaming under extreme stress.
    • The optimal installation location or position is Mono-tube Upside-Down Technology.
    • High-quality and durable corrosion protection (Triple-C-Technology).
    • Tested on various roads by Bilstein to ensure balanced driving characteristics.
    • Change the ride height with custom-made kits.
    The Bilstein B16 Series Pss9 Coilover Kit 48-080422 is a high-performance suspension system, which features advanced technologies as Monotube internal design, BILSTEIN gas pressure technology, and BILSTEIN mono-tube/Upside-Down technology. This kit has a 20 mm range of adjustment on both axles, sports quality springs made of very long-lasting materials while spring plates and lock nuts are made of special aluminum alloy. The surface coat is for Triple-C-Technology that helps to withstand corrosion and it has been road tested under motorsport conditions for optimized performance. Besides the kit also allows ride height adjustments so as to provide an ideal match for the car. Furthermore all these features come with German TÜV approval mark signifying their quality and safety standards.
    Bilstein, a subsidiary of ThyssenKrupp Technologies AG, has been a top name for suspension design and driving comfort since 1954. The brand is famed to have lightweight and innovative dampers that tackle the challenges of traditional telescopic shock absorbers. Bilstein's dedication to innovation and excellence in technology has entrenched its place as industry leader.
  • Installation

  • Warranty

    Lifetime
  • Vehicle Fitment

    Year Make Model Trim Engine
    2000-2006 Audi TT QuattroBaseAll Engines
    2002 Audi TT QuattroALMS EditionAll Engines
    2006 Audi TT QuattroSpecial EditionAll Engines
    2004 Volkswagen GolfAll TrimsAll Engines
