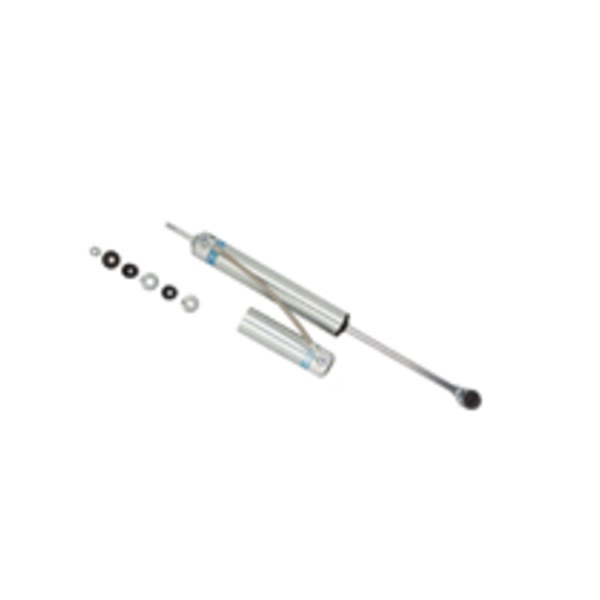

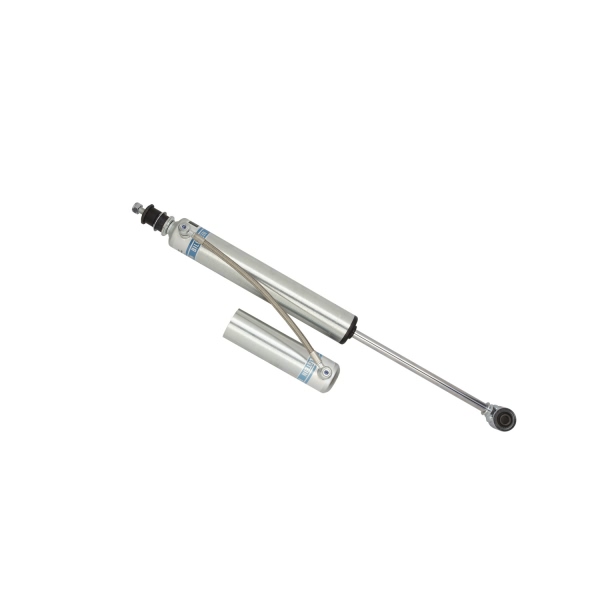

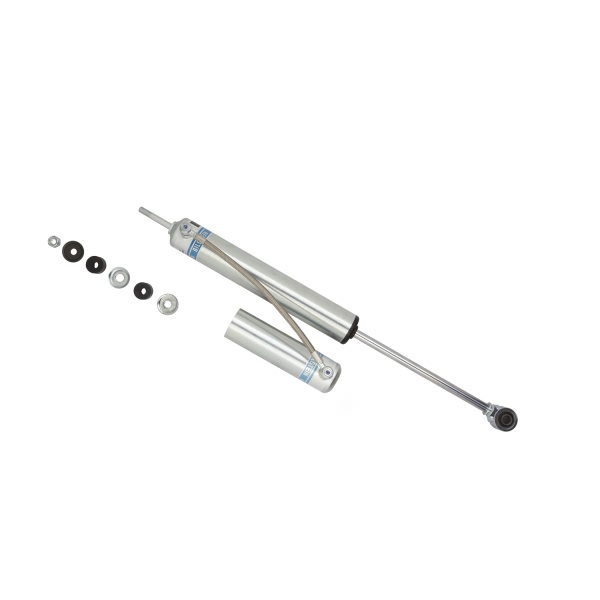

Bilstein® Rear Driver Or Passenger Side Monotube Smooth Body Shock Absorber 25-261332

Bilstein Rear Driver Or Passenger Side Monotube Smooth Body Shock Absorber 25-261332

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandBilstein
    Part Number25-261332
    Part DescriptionRear Driver Or Passenger Side Monotube Smooth Body Shock Absorber
    BootNo
    Compressed Length13.84" (351.5 mm)
    Diameter1.81" (46 mm)
    Extended Length23.23" (590.0 mm)
    FinishZinc Plated
    Lower MountingEye 0.47" (12.0 mm)
    ReservoirYes
    UPC651860781099
    Upper MountingStem
    Warning: California’s Proposition 65
  • Features

    Bilstein B8 5160 Series Shock Absorber are featured as follows:
    • Bilstein's industry-leading monotube design.
    • Zinc coating bilstein masterpiece that is not known for its usual nature. It is a finish that is unique and it has many layers of zinc that provide extreme protection for this shock absorber.
    • The reservoir system increases the size of the shock absorber with remote oil to a value greater than 90% thereby enhancing the dissipation of heat.
    • Special swivel banjo fittings allow for 360° of rotation.
    • Vehicle-specific reservoir mount kit included.
    • When loading and weather conditions are increasing, the gas pressure technique prevents oil from foaming, thus having complete damping forces.
    • Mono-tube Upside-Down Technology gives engineers the freedom to choose the perfect installation location or position.
    The Bilstein B8 5160 Series Shock Absorber 25-261332 is designed to be a high performance product that achieves superior vehicle control and comfort. It is constructed with the best industry-leading monotube design by Bilstein, a zinc finish with multi-layer coating to provide extreme protection and has an extra reservoir that enhances shock oil capacity for better heat dissipation and damping sensitivity. A 360° rotation option is available thanks to special swivel banjo fittings in this shock absorber as well as a specific kit for vehicle-specific reservoir mounts. For optimum performance, it has been road tested by Bilstein and also comes with gas pressure technology that will keep the oil from foaming at very extreme stress periods. This shock absorber comes in various series including 4600,5100,6100,7100,9100 and 9300 all of which are designed specifically for different uses.
    Bilstein, a subsidiary of ThyssenKrupp Technologies AG, has been a top name for suspension design and driving comfort since 1954. The brand is famed to have lightweight and innovative dampers that tackle the challenges of traditional telescopic shock absorbers. Bilstein's dedication to innovation and excellence in technology has entrenched its place as industry leader.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2000-2006 Toyota TundraLimitedAll Engines
    2000-2006 Toyota TundraSR5All Engines
    2005-2006 Toyota TundraBaseAll Engines
