Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4420 |

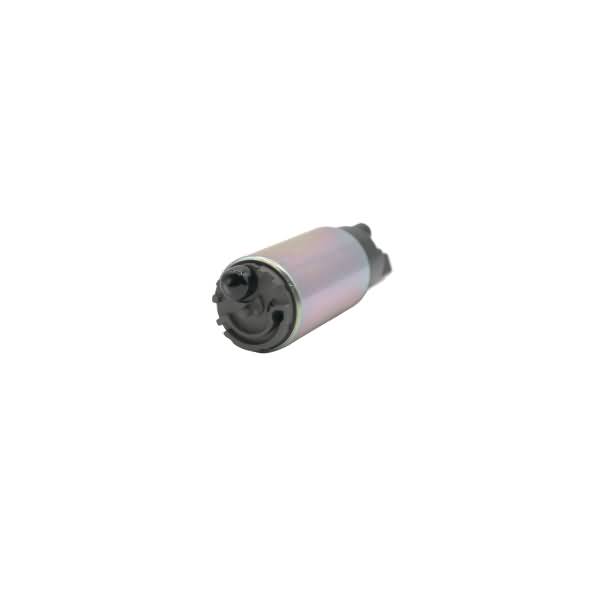

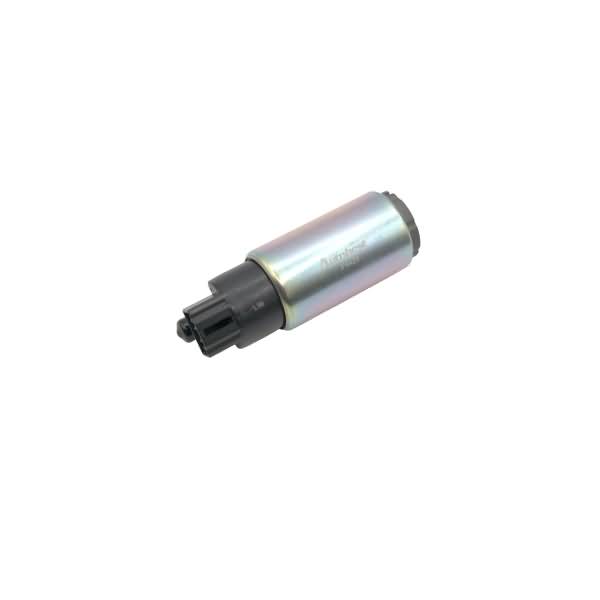

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 5.8 |
Average Flow Rating(GPH) | 90 |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 50 |
Maximum Pump Pressure (PSI) | 123.25 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 79.8 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.346 |
Outlet Type | Hose |
Product Height (in) | 1.5 |
Product Length (in) | 4.57 |
Product Width (in) | 1.5 |
Pump Type | Turbine |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Chip |
UPC | 00072845144201 |
Voltage | 12V |
Weight (lbs) | 0.73 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2001 Toyota Camry | All Trims | 4 Cyl 2.2L |
2001 Toyota Camry | All Trims | 6 Cyl 3.0L |
1993-1995 Toyota Corolla | LE | 4 Cyl 1.8L |
1996 Toyota Corolla | DX | 4 Cyl 1.8L |
1997 Toyota Corolla | Base | 4 Cyl 1.6L |
1997 Toyota Corolla | CE | 4 Cyl 1.6L |
1997 Toyota Corolla | All Trims | 4 Cyl 1.8L |
2000-2005 Toyota MR2 Spyder | All Trims | 4 Cyl 1.8L |
2001-2003 Toyota RAV4 | All Trims | 4 Cyl 2.0L |
2004-2005 Toyota RAV4 | All Trims | 4 Cyl 2.4L |
