Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3029 |

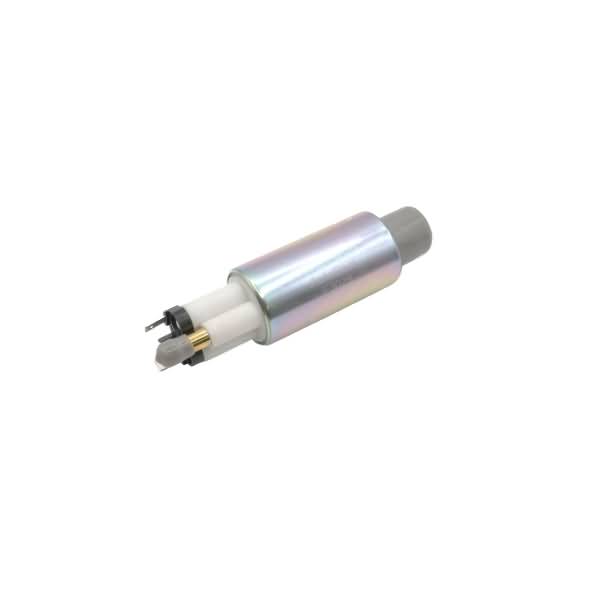

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 125 |
Connector Gender | Male |
Connector Quantity | 2 |
Connector Shape | PIN |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.866 |
Inlet Type | filter |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 123.25 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 79.8 |
Outlet Quantity | 1 |
Outlet Size | 0.37 |
Outlet Type | Barb |
Product Height (in) | 1.46 |
Product Length (in) | 5.39 |
Product Width (in) | 1.46 |
Pump Type | Turbine |
Regulator Included | No |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845130297 |
Voltage | 12V |
Weight (lbs) | 0.74 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1990 Dodge B150 | All Trims | 6 Cyl 3.9L |
1988-1990 Dodge B150 | All Trims | 8 Cyl 5.2L |
1988-1990 Dodge B250 | All Trims | 6 Cyl 3.9L |
1988-1990 Dodge B250 | All Trims | 8 Cyl 5.2L |
1989-1990 Dodge B350 | All Trims | 8 Cyl 5.9L |
1988-1989 Dodge D100 | All Trims | 6 Cyl 3.9L |
1988-1989 Dodge D100 | All Trims | 8 Cyl 5.2L |
1988-1989 Dodge D150 | All Trims | 6 Cyl 3.9L |
1988-1989 Dodge D150 | All Trims | 8 Cyl 5.2L |
1989-1990 Dodge D150 | All Trims | 8 Cyl 5.9L |
