Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3017 |

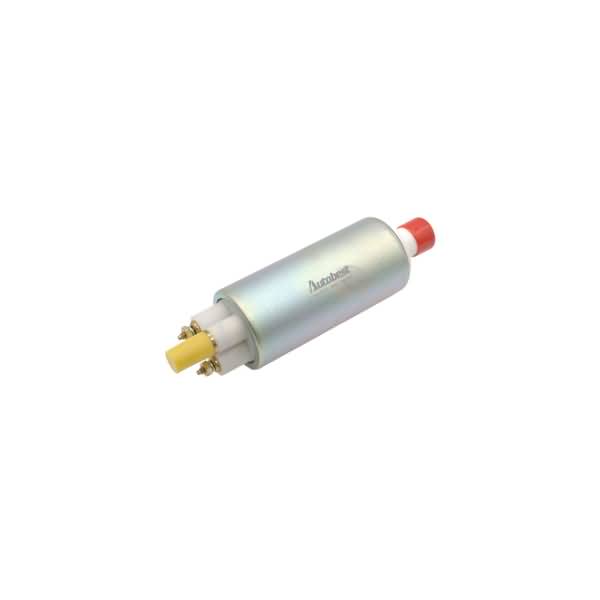

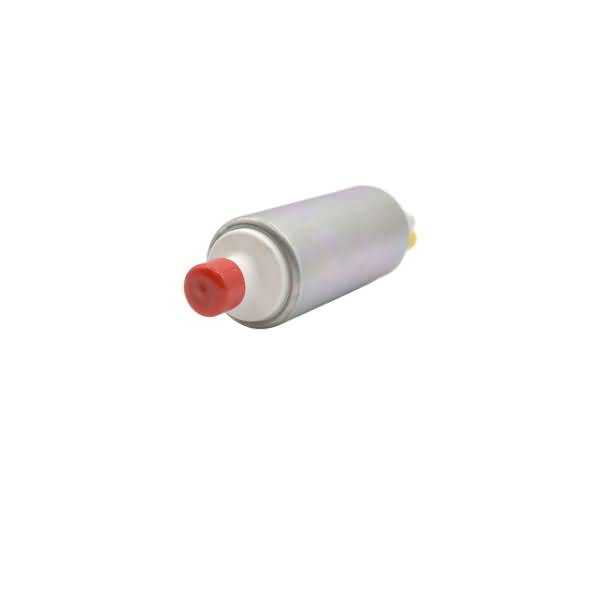

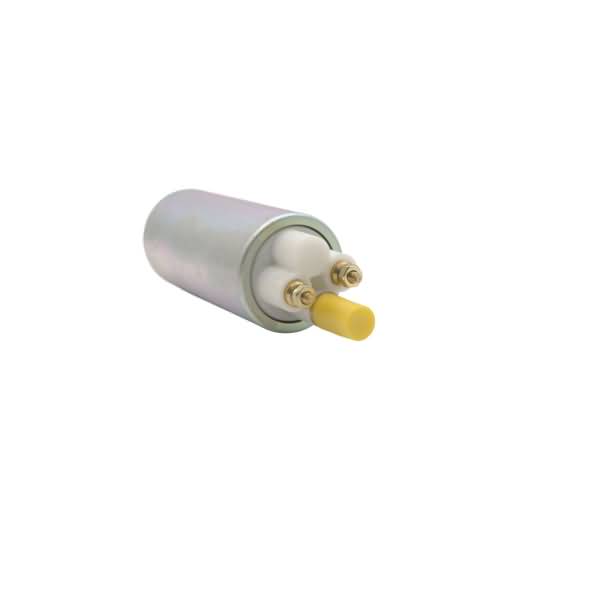

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 6.5 |
Average Flow Rating(GPH) | 150 |
Country of Orign | China |

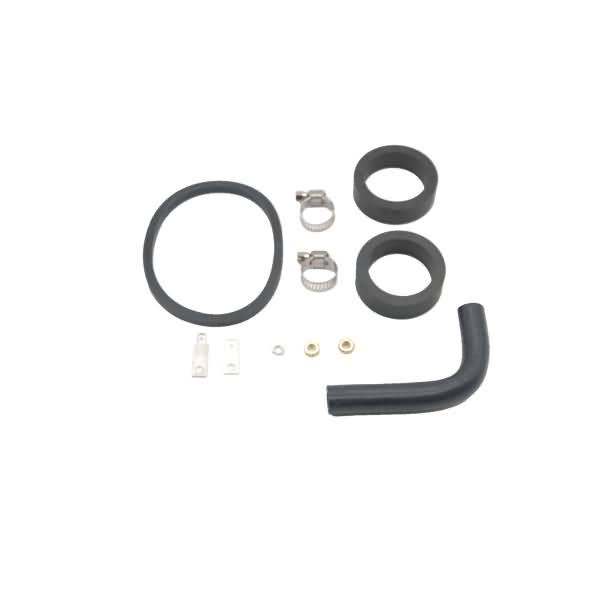

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
In Tank or External | In Tank |
Inlet Size | 0.72 |
Inlet Type | Strainer |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 145 |
Minimum Pump Pressure (PSI) | 101.5 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.322 |
Outlet Type | Hose |
Product Height (in) | 1.83 |
Product Length (in) | 6.61 |
Product Width (in) | 1.83 |
Pump Type | Rollervane |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Thread |
UPC | 00072845130174 |
Voltage | 13.5V |
Weight (lbs) | 1.35 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1987-1990 Jeep Cherokee | All Trims | 6 Cyl 4.0L |
1991-1993 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
1987-1992 Jeep Comanche | All Trims | 6 Cyl 4.0L |
1991-1992 Jeep Comanche | All Trims | 4 Cyl 2.5L |
1987-1990 Jeep Wagoneer | All Trims | 6 Cyl 4.0L |
1991-1993 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
1991-1993 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
