Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2223 |

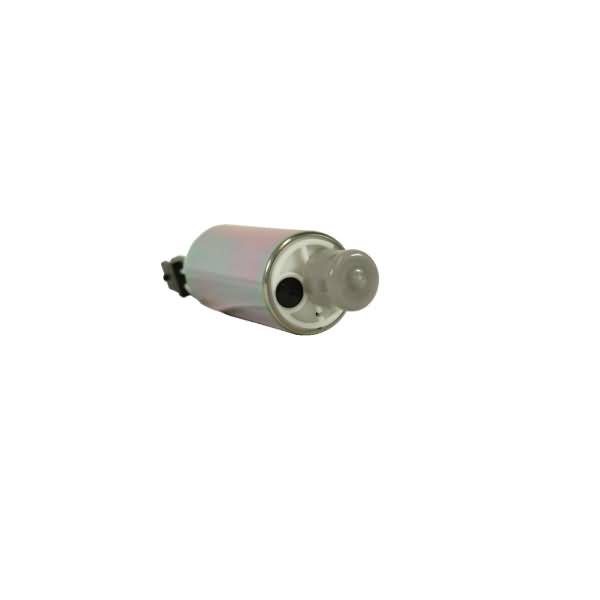

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 4 |
Average Flow Rating(GPH) | 125 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | filter |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 123.25 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 79.8 |
Outlet Quantity | 1 |
Outlet Size | 0.31 |
Outlet Type | Male Quick Connect |
Product Height (in) | 1.46 |
Product Length (in) | 5.39 |
Product Width (in) | 1.57 |
Pump Type | Turbine |
Regulator Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845122230 |
Voltage | 12V |
Weight (lbs) | 0.75 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1992 Buick Century | All Trims | 4 Cyl 2.5L |
1987-1989 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
1988-1991 Buick Skylark | All Trims | 4 Cyl 2.5L |
1986-1987 Cadillac Commercial Chassis | All Trims | 8 Cyl 4.1L |
1988-1989 Cadillac Commercial Chassis | All Trims | 8 Cyl 4.5L |
1985-1987 Cadillac DeVille | All Trims | 8 Cyl 4.1L |
1988-1989 Cadillac DeVille | All Trims | 8 Cyl 4.5L |
1986-1987 Cadillac Eldorado | All Trims | 8 Cyl 4.1L |
1988-1989 Cadillac Eldorado | All Trims | 8 Cyl 4.5L |
1985-1987 Cadillac Fleetwood | All Trims | 8 Cyl 4.1L |
