Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1193 |

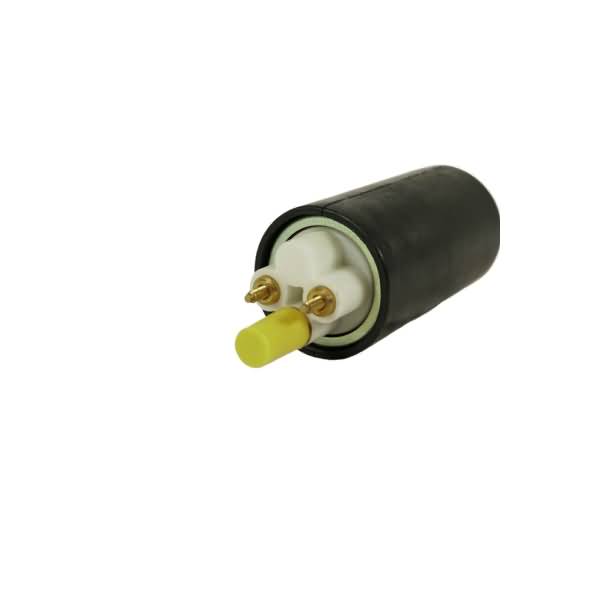

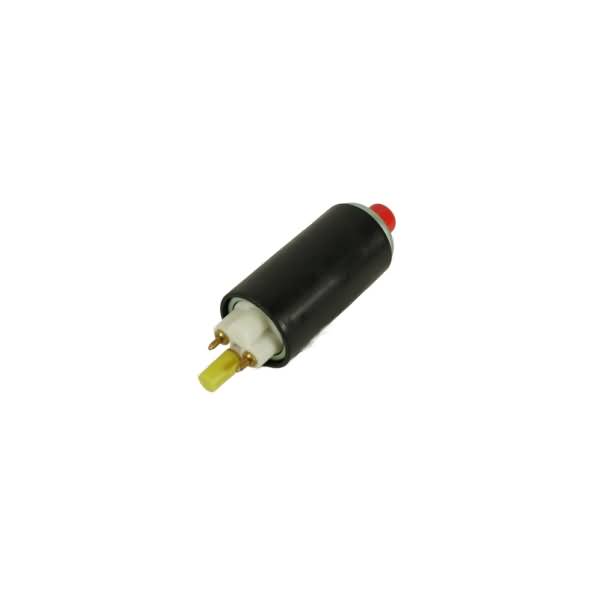

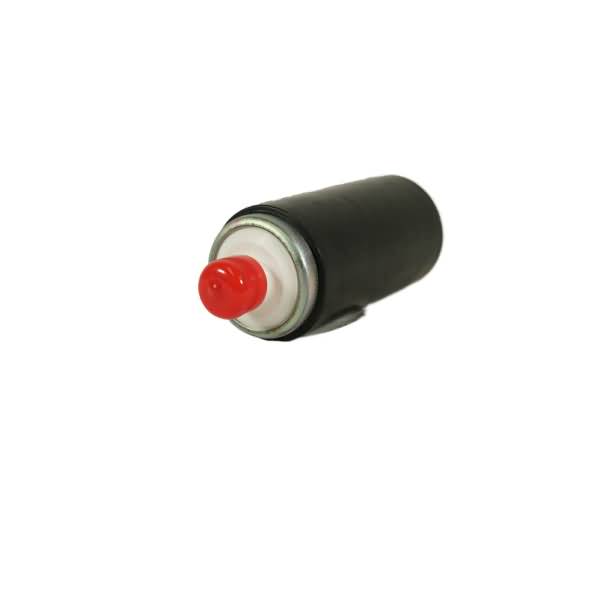

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 4.5 |
Average Flow Rating(GPH) | 90 |
Country of Orign | China |
Fuel Type | Rollervane |

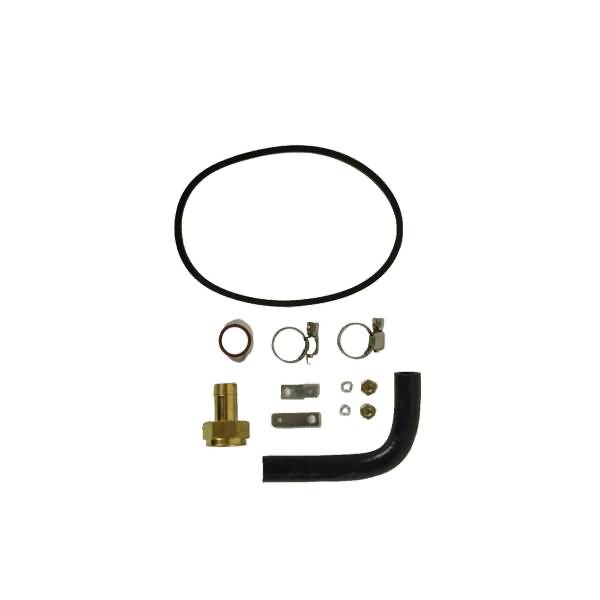

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
In Tank or External | External |
Inlet Size | 3/4-16 UNF-2A |
Inlet Type | Threaded Male |
Installation Warnings | No |
Internal or External | External |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 44.8 |
Maximum Pump Pressure (PSI) | 116 |
Minimum Free Flow (GPH) | 37 |
Minimum Pump Pressure (PSI) | 72.5 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.322 |
Outlet Type | Hose |
Product Height (in) | 1.83 |
Product Length (in) | 6.24 |
Product Width (in) | 1.83 |
Pump Type | Rollervane |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Thread |
UPC | 00072845111937 |
Voltage | 12V |
Weight (lbs) | 1.35 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1981-1983 Fiat 124 | All Trims | 4 Cyl 2.0L |
1981 Fiat Brava | All Trims | 4 Cyl 2.0L |
1981-1983 Fiat X-1/9 | All Trims | 4 Cyl 1.5L |
1987-1991 Ford Country Squire | All Trims | 8 Cyl 5.0L |
1983-1986 Ford LTD | Country Squire | 8 Cyl 5.0L |
1983-1986 Ford LTD | Crown Victoria | 8 Cyl 5.0L |
1987-1991 Ford LTD Crown Victoria | All Trims | 8 Cyl 5.0L |
1980 Lincoln Continental | All Trims | 8 Cyl 5.0L |
1980-1983 Lincoln Mark VI | All Trims | 8 Cyl 5.0L |
1981-1989 Lincoln Town Car | All Trims | 8 Cyl 5.0L |
