Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1122 |

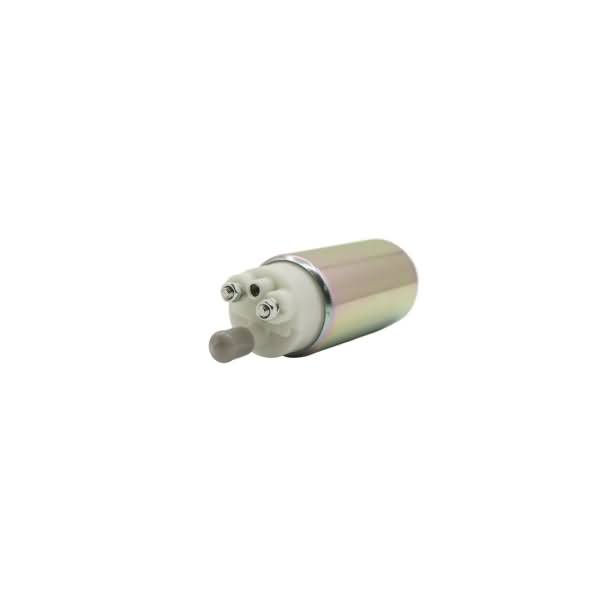

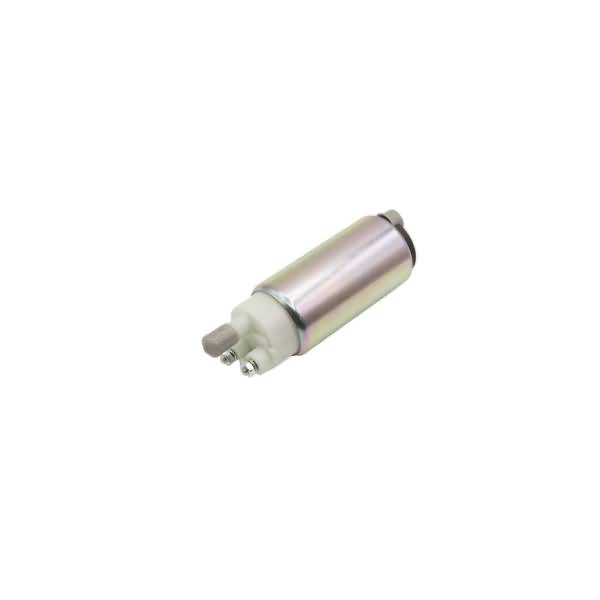

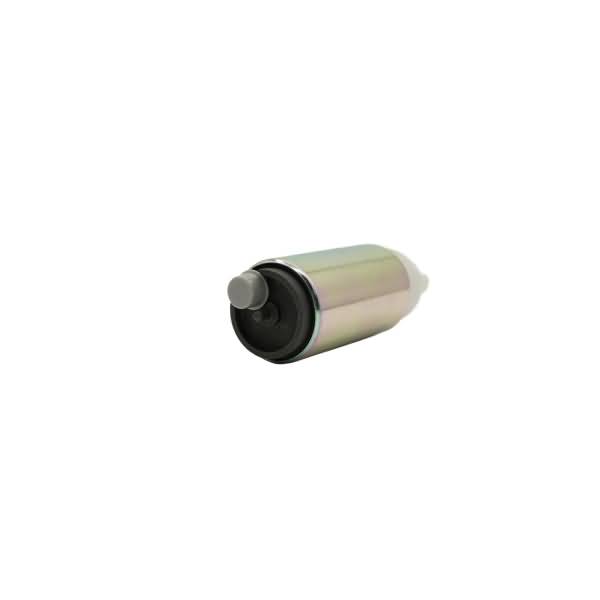

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 5 |
Average Flow Rating(GPH) | 120 |
Connector Gender | Male |
Connector Quantity | 2 |
Connector Shape | Wire |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Filter |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External |
Maximum Free Flow (GPH) | 47.5 |
Maximum Pump Pressure (PSI) | 123 |
Minimum Free Flow (GPH) | 39.6 |
Minimum Pump Pressure (PSI) | 80 |
Outlet Quantity | 1 |
Outlet Size | 0.36 |
Outlet Type | Male tube / 1 barb |
Product Height (in) | 1.44 |
Product Length (in) | 5.04 |
Product Width (in) | 1.44 |
Pump Type | Turbine |
Regulator Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845111227 |
Voltage | 12V |
Weight (lbs) | 0.72 |

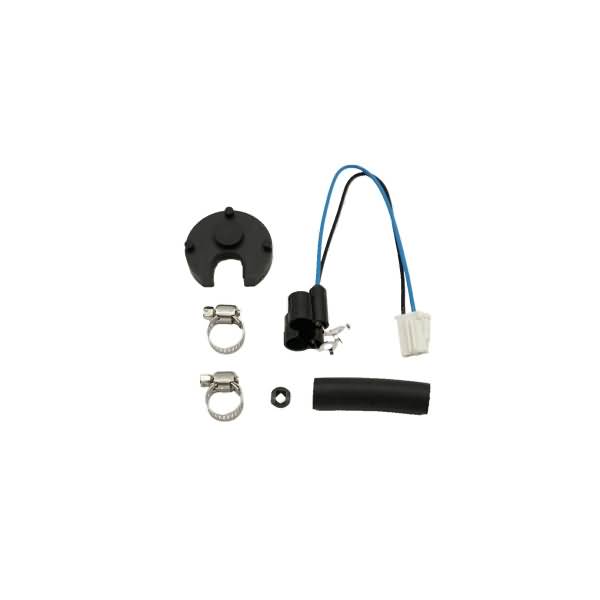

Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1994-1997 Ford Aspire | All Trims | 4 Cyl 1.3L |
1989-1991 GMC Tracker | All Trims | 4 Cyl 1.6L |
1989-1995 Geo Tracker | All Trims | 4 Cyl 1.6L |
1999-2005 Mazda Miata | All Trims | 4 Cyl 1.8L |
1990-1995 Suzuki Samurai | All Trims | 4 Cyl 1.3L |
1991-1995 Suzuki Sidekick | All Trims | 4 Cyl 1.6L |
