Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1013 |

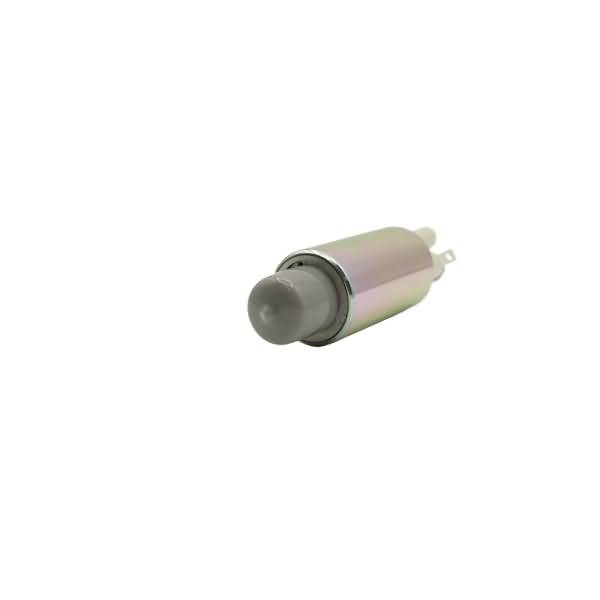

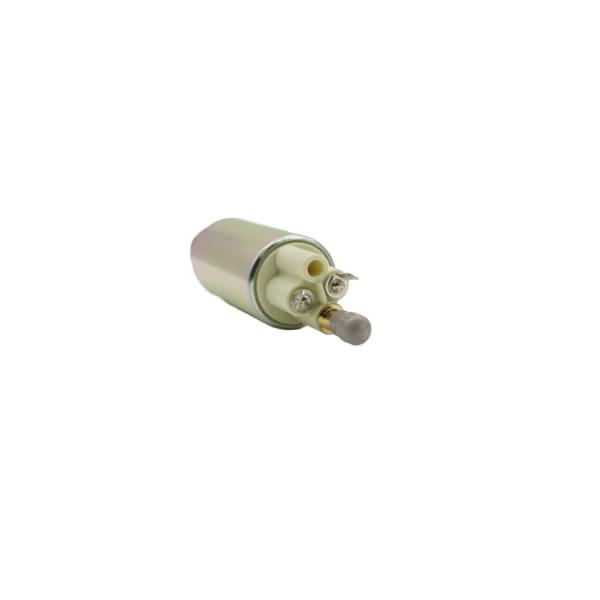

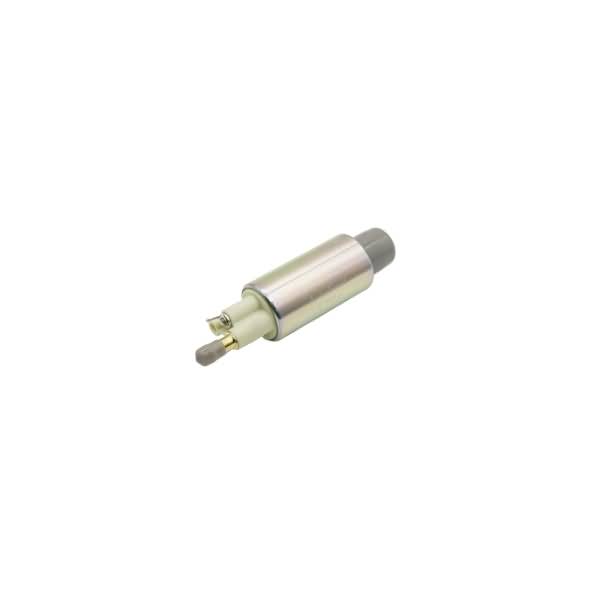

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 6 |
Average Flow Rating(GPH) | 110 |
Connector Gender | Male |
Connector Quantity | 2 |
Connector Shape | PIN |
Country of Orign | China |
Fuel Type | Gerotor |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.89 |
Inlet Type | Filter |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Maximum Free Flow (GPH) | 40 |
Maximum Pump Pressure (PSI) | 123.25 |
Minimum Free Flow (GPH) | 30 |
Minimum Pump Pressure (PSI) | 79.8 |
Outlet Quantity | 1 |
Outlet Size | 0.36 |
Outlet Type | Male tube / 1 barb |
Product Height (in) | 1.44 |
Product Length (in) | 5.04 |
Product Width (in) | 1.44 |
Pump Type | Gerotor |
Regulator Included | No |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845110138 |
Voltage | 12V |
Weight (lbs) | 0.77 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1987 Ford Aerostar | All Trims | 4 Cyl 2.3L |
1986-1989 Ford Aerostar | All Trims | 6 Cyl 3.0L |
1987 Ford EXP | Sport | 4 Cyl 1.9L |
1987 Ford Escort | GT | 4 Cyl 1.9L |
1988-1990 Ford Escort | All Trims | 4 Cyl 1.9L |
1989 Ford Ranger | All Trims | 6 Cyl 2.9L |
1989-1997 Ford Ranger | All Trims | 4 Cyl 2.3L |
1991-1992 Ford Ranger | All Trims | 6 Cyl 2.9L |
1991-1997 Ford Ranger | All Trims | 6 Cyl 3.0L |
1991-1997 Ford Ranger | All Trims | 6 Cyl 4.0L |
