Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1449A |

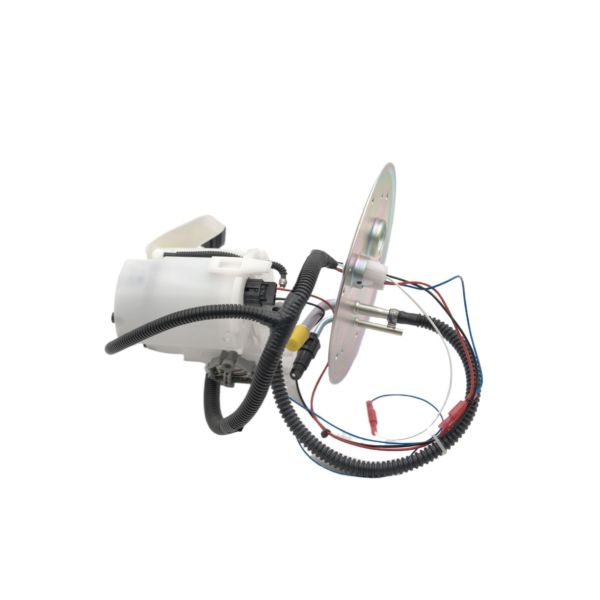

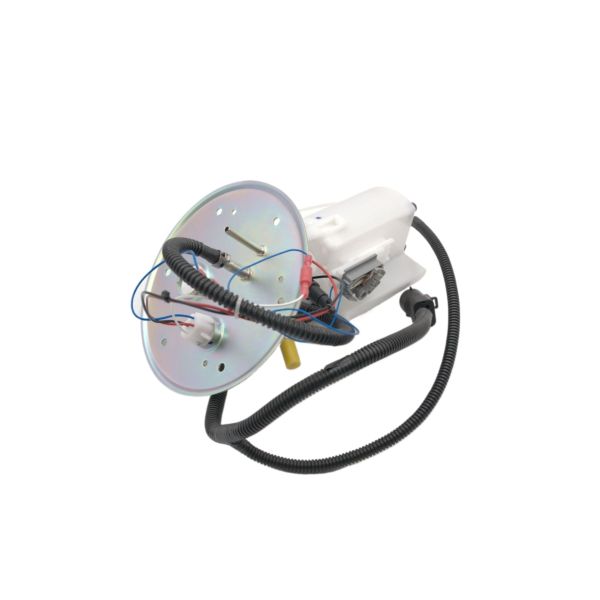

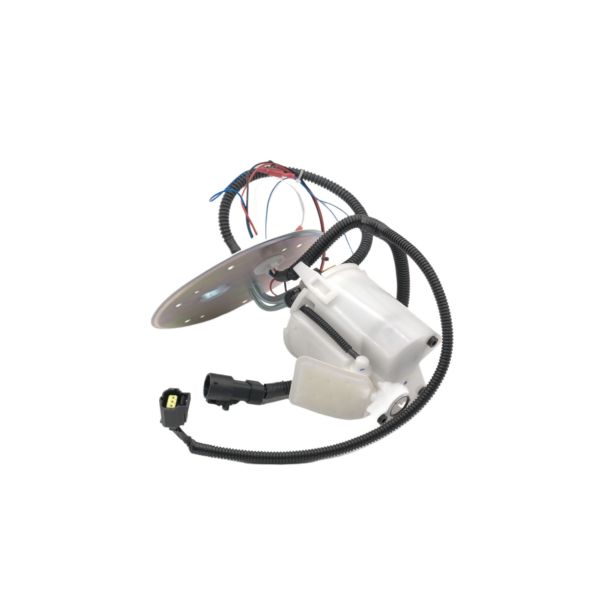

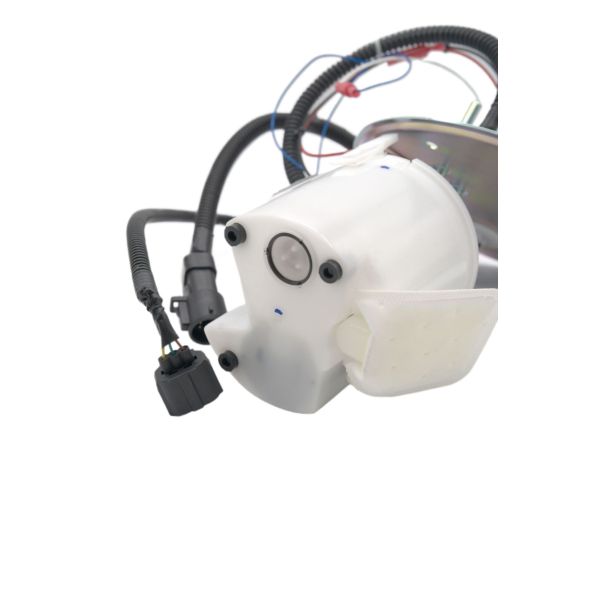

Part Description | Fuel Pump |
Average Current Draw(A) | 7.5 |
Average Flow Rating(GPH) | 40 |

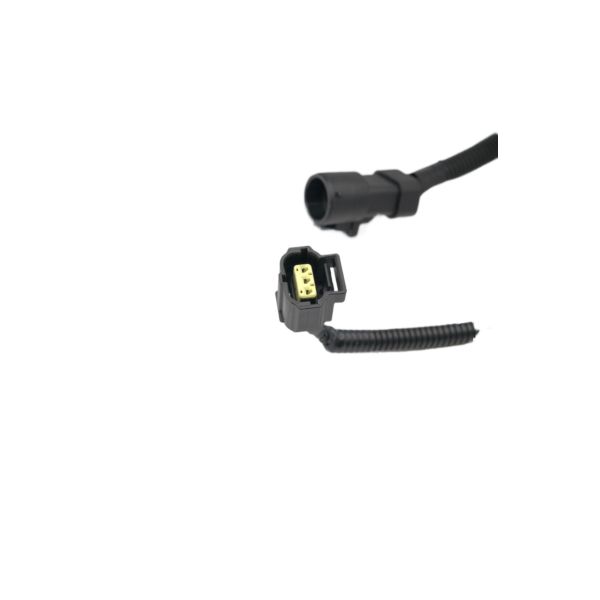

Connector Gender | MaleFemale |
Connector Quantity | 2 |
Connector Shape | Rectangle+Round |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | External and Internal |
Length (in.) | 11 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 95 |
Minimum Pump Pressure (PSI) | 85 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump |
Product Height (in) | 7.48 |
Product Length (in) | 20.08 |
Product Width (in) | 10.63 |
Regulator Included | No |
Resistance Ohms Empty | 15 |
Resistance Ohms Full | 160 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | MaleFemale |
Terminal Quantity | 10 |
Terminal Type | PIN |
UPC | 00072845114495 |
Voltage | 12V |
Weight (lbs) | 2.73 |
Weight (lbs.) | 3.15 |
Width (in.) | 9 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
2005-2007 Ford F-350 Super Duty | All Trims | 8 Cyl 5.4L |
