Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2531A |

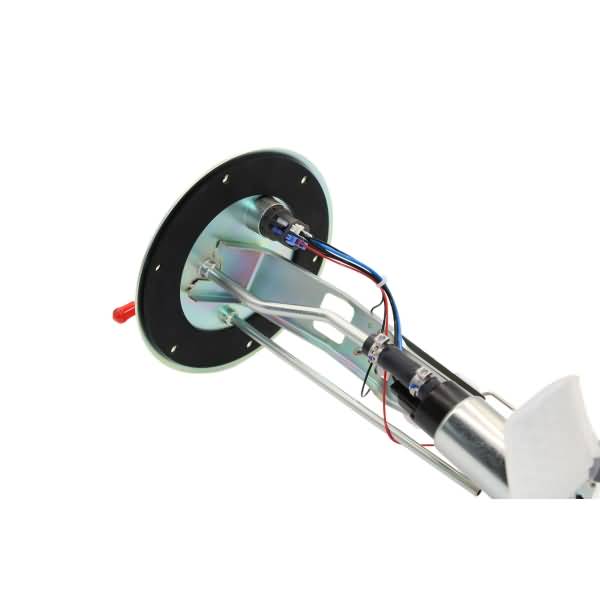

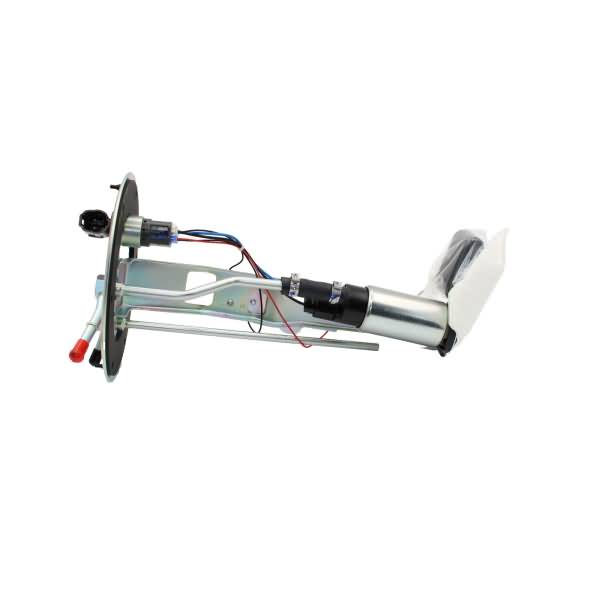

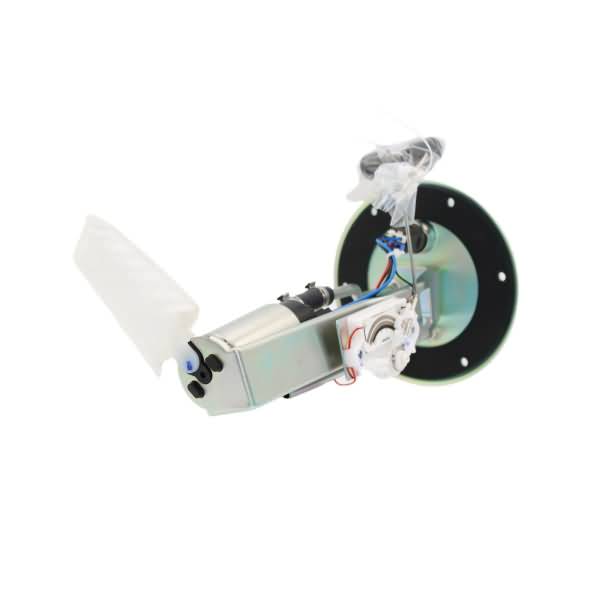

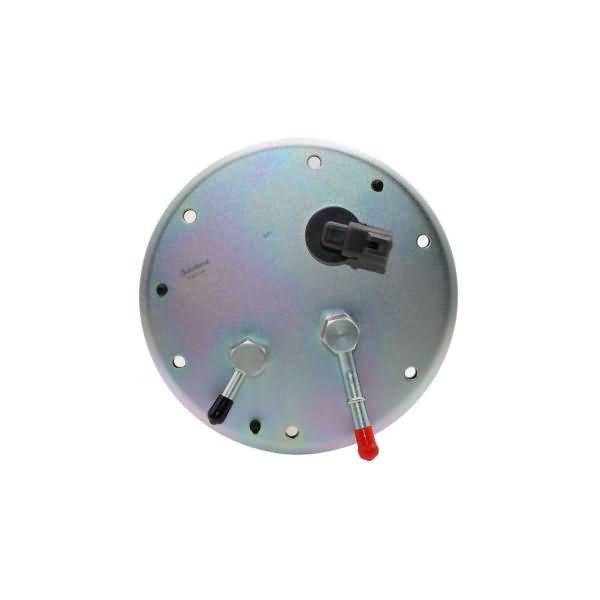

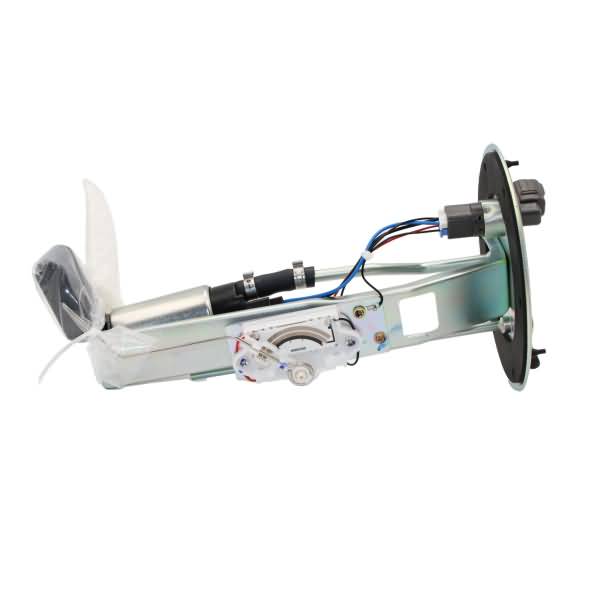

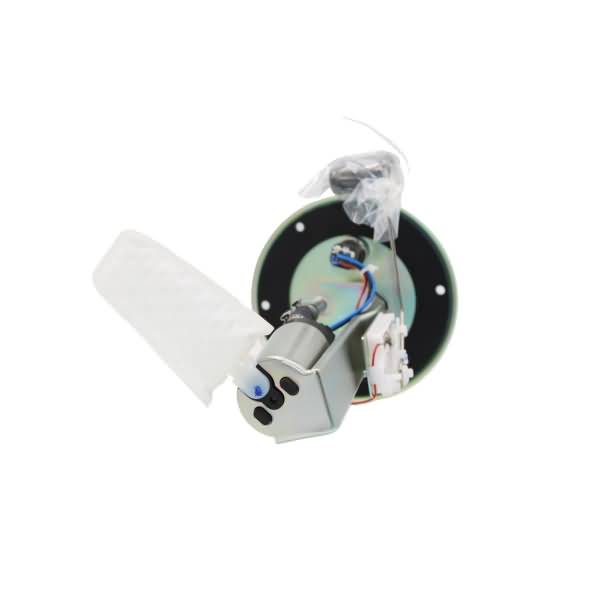

Part Description | Fuel Pump Sender Assembly |
Average Current Draw(A) | 6 |
Average Flow Rating(GPH) | 26.4 |

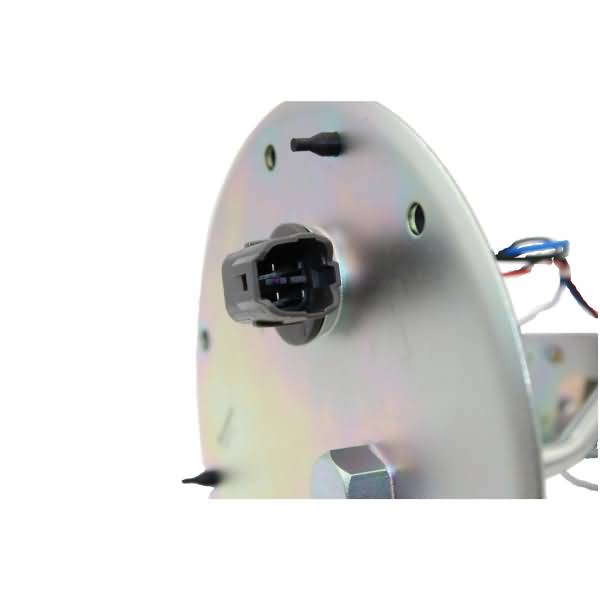

Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

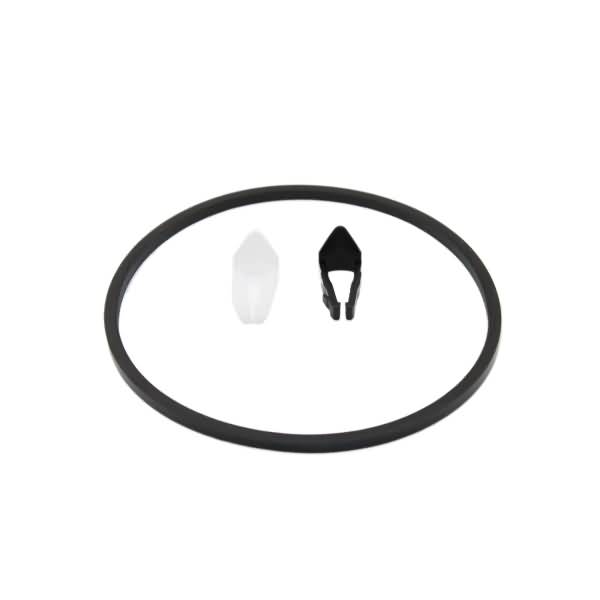

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 90 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.37 |
Outlet Type | Hose Barb |
Product Height (in) | 6.3 |
Product Length (in) | 12.01 |
Product Width (in) | 7.48 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 120 |
Resistance Ohms Full | 3 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845125316 |
Voltage | 12V |
Weight (lbs) | 2.39 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1999-2000 Chevrolet Tracker | All Trims | 4 Cyl 1.6L |
1999-2003 Chevrolet Tracker | All Trims | 4 Cyl 2.0L |
2001-2004 Chevrolet Tracker | All Trims | 6 Cyl 2.5L |
1999-2005 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L |
1999-2002 Suzuki Vitara | All Trims | 4 Cyl 1.6L |
1999-2003 Suzuki Vitara | All Trims | 4 Cyl 2.0L |
2004 Suzuki Vitara | All Trims | 6 Cyl 2.5L |
