Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1646A |

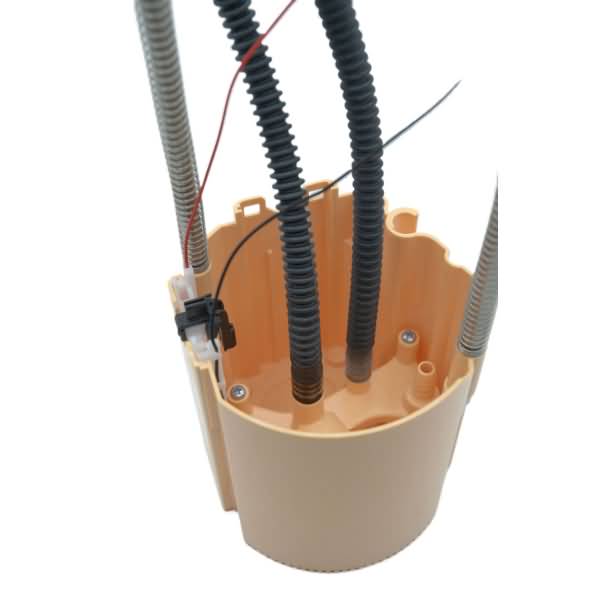

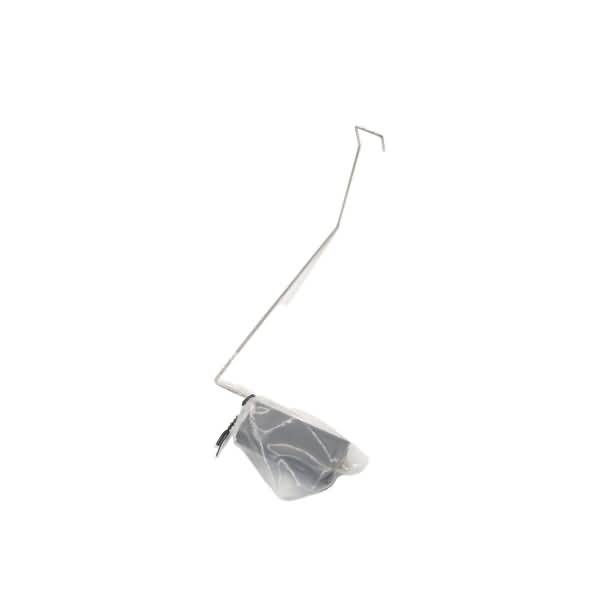

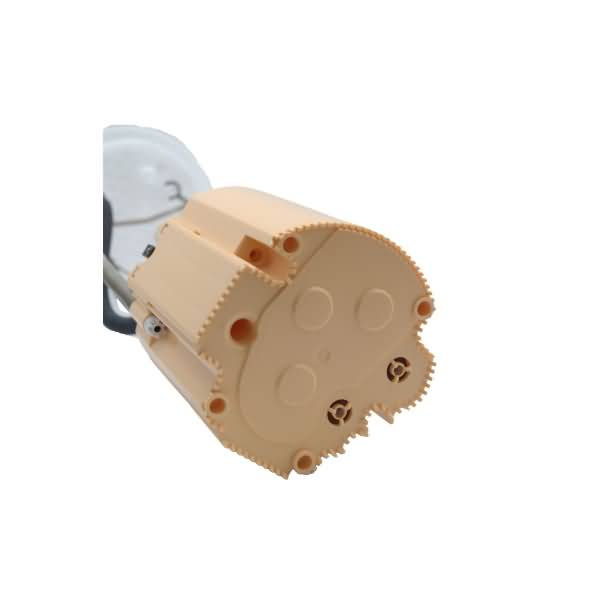

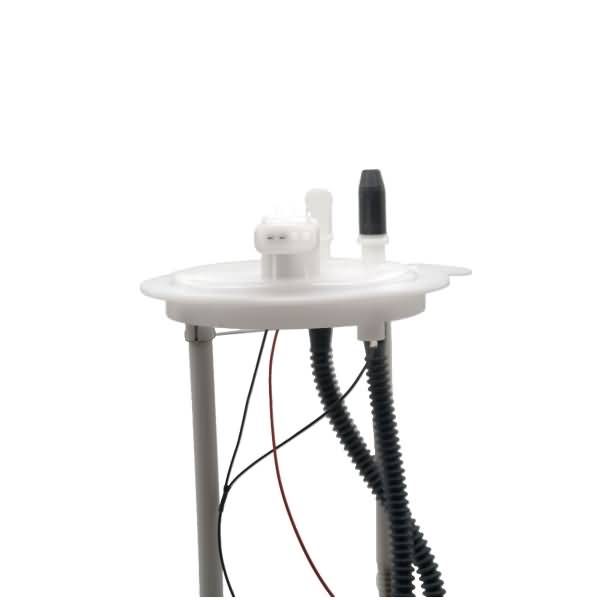

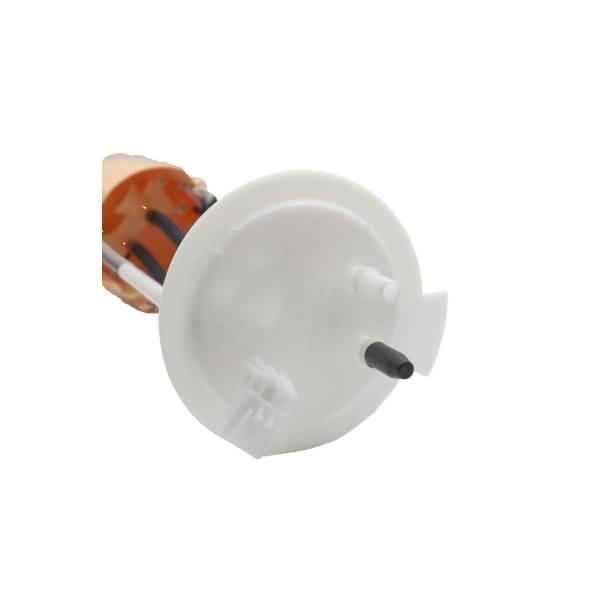

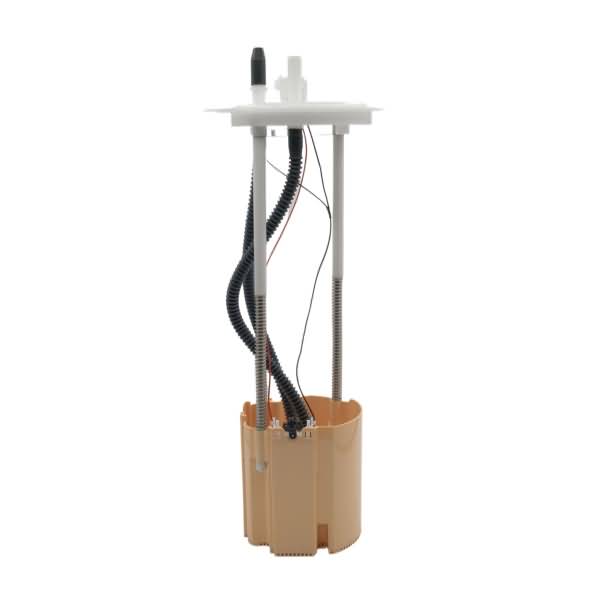

Part Description | Fuel Pump Reservoir and Sender |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | No |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | Yes |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 0.5 |
Outlet Type | Quick Connect |
Product Height (in) | 6.04 |
Product Length (in) | 17.95 |
Product Width (in) | 11.26 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 10 |
Resistance Ohms Full | 180 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845116468 |
Weight (lbs) | 2.03 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.7L |
2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.7L |
