Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | HP2958A |

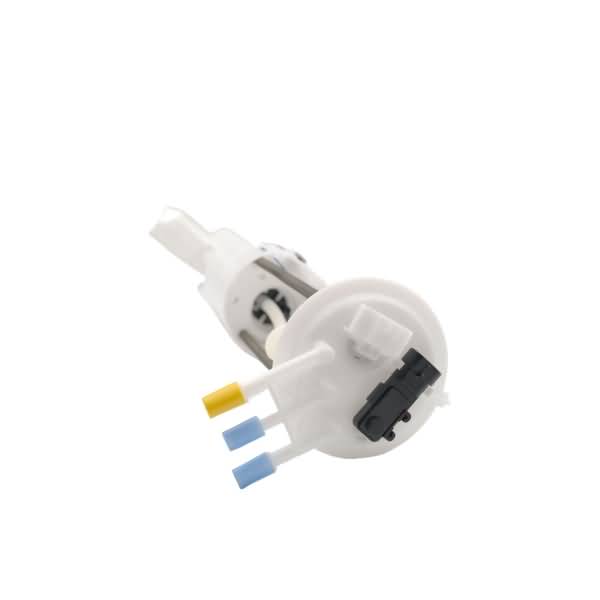

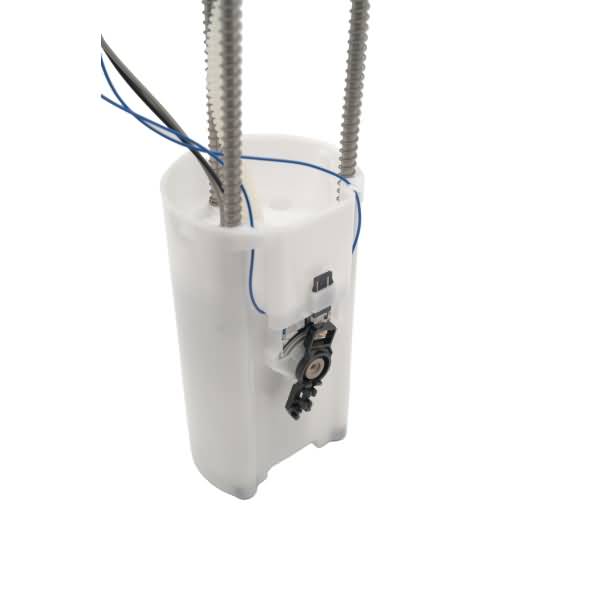

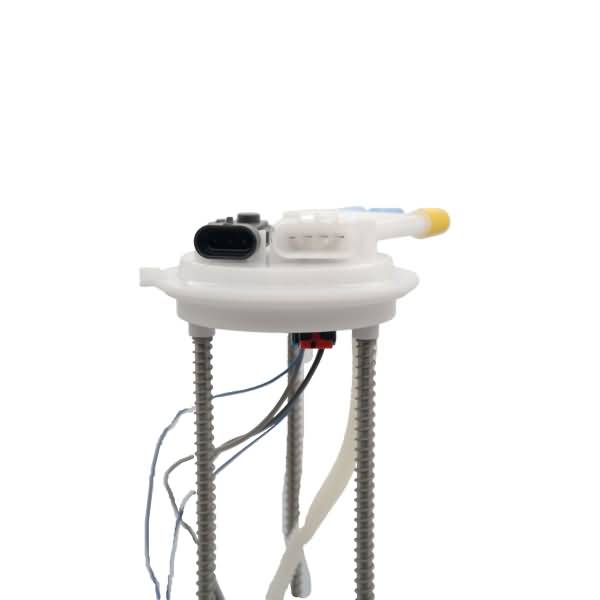

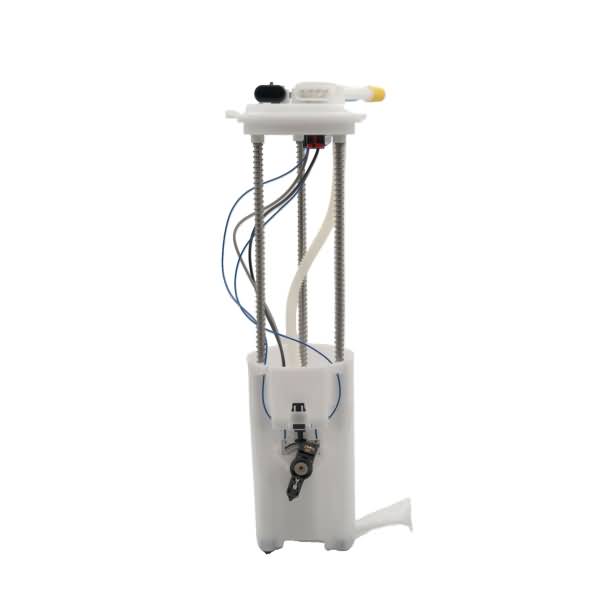

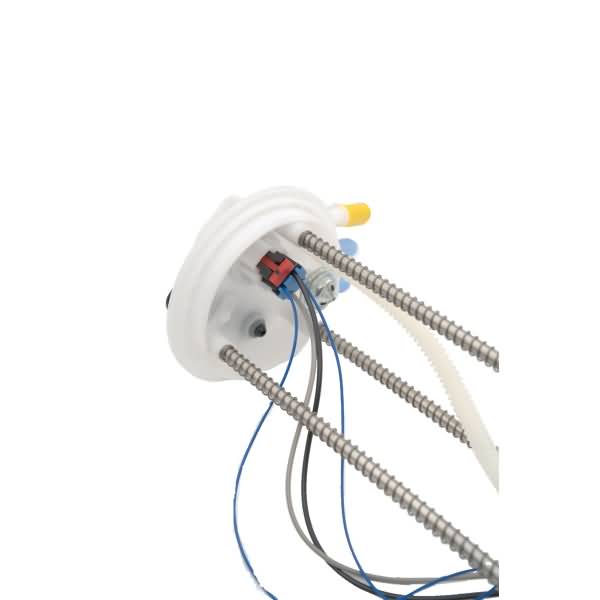

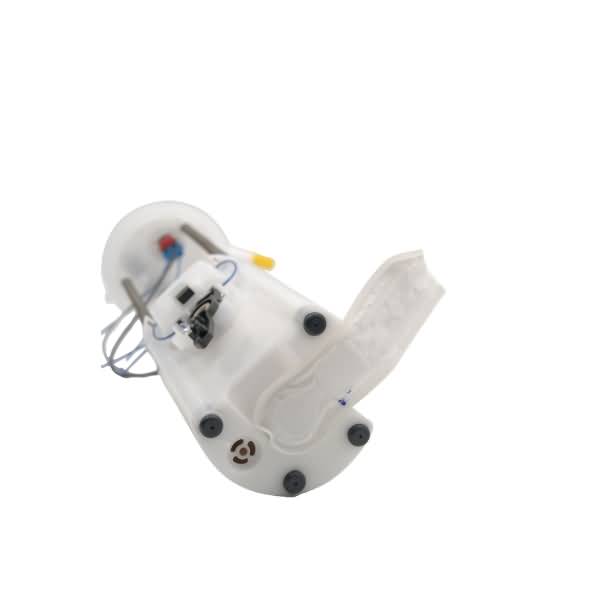

Part Description | High Performance Fuel Pump Module Assembly |
Average Current Draw(A) | 9 |
Average Flow Rating(GPH) | 41 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Height (in.) | 10.4 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.362 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Length (in.) | 17.2 |
Life Cycle Status Code | Superseded |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 73.025 |
Maximum Pump Pressure (PSI) | 145 |
Minimum Free Flow (GPH) | 60.72 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.374 |
Outlet Type | Quick Connect |
Package Contents | Pump & Module |
Product Height (in) | 6.9 |
Product Length (in) | 17.2 |
Product Width (in) | 10.4 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 40 |
Resistance Ohms Full | 250 |
Short Description | High Performance Fuel Pump |
Strainer Included | Yes |
Superseded To | F2958A |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845169587 |
Voltage | 12V |
Weight (lbs) | 4 |
Weight (lbs.) | 4 |
Width (in.) | 6.9 |

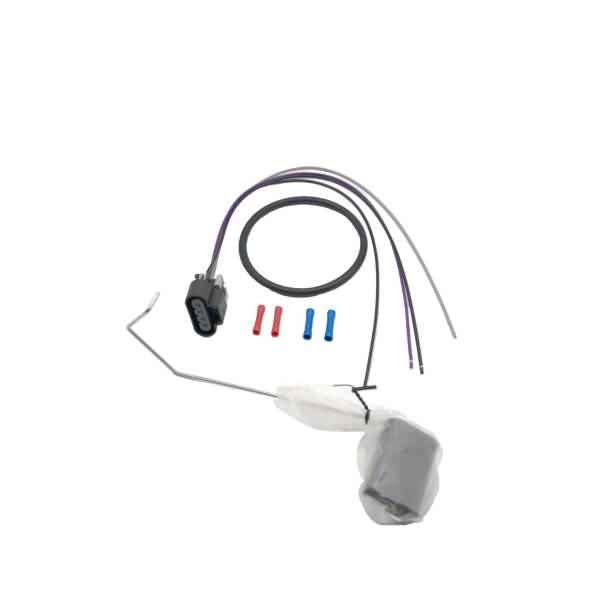

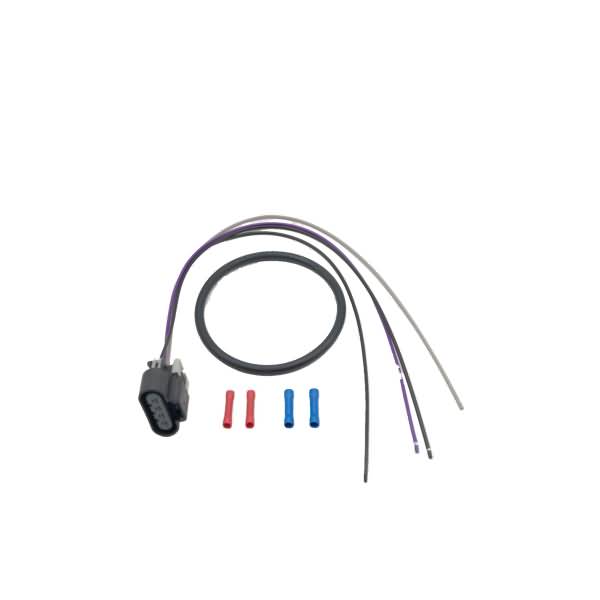

Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1997-1998 Chevrolet C1500 | All Trims | 6 Cyl 4.3L |
1998-1999 Chevrolet C1500 | All Trims | 8 Cyl 5.0L |
1998-1999 Chevrolet C1500 | All Trims | 8 Cyl 5.7L |
1998-2000 Chevrolet C2500 | All Trims | 8 Cyl 5.7L |
1998-2000 Chevrolet C2500 | All Trims | 8 Cyl 7.4L |
1998-2000 Chevrolet C3500 | All Trims | 8 Cyl 5.7L |
1998-2000 Chevrolet C3500 | All Trims | 8 Cyl 7.4L |
1997-1998 Chevrolet K1500 | All Trims | 6 Cyl 4.3L |
1998-1999 Chevrolet K1500 | All Trims | 8 Cyl 5.0L |
1998-1999 Chevrolet K1500 | All Trims | 8 Cyl 5.7L |
