Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F6224A |

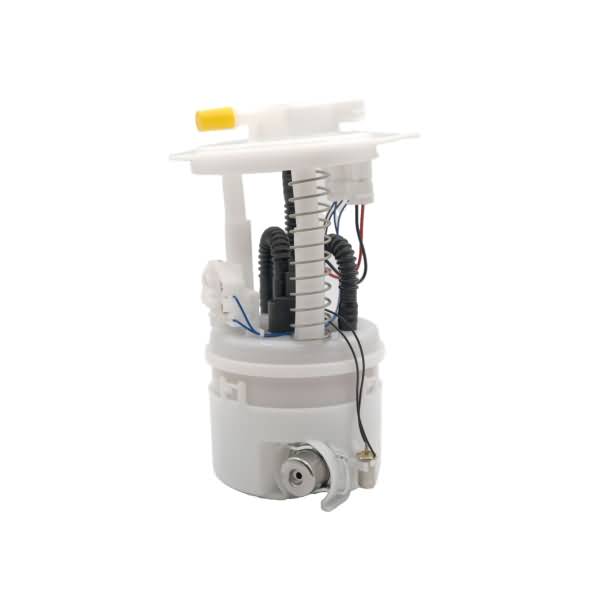

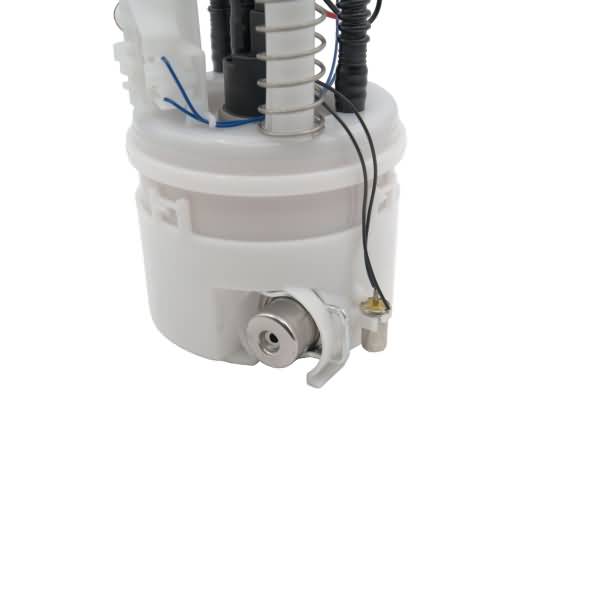

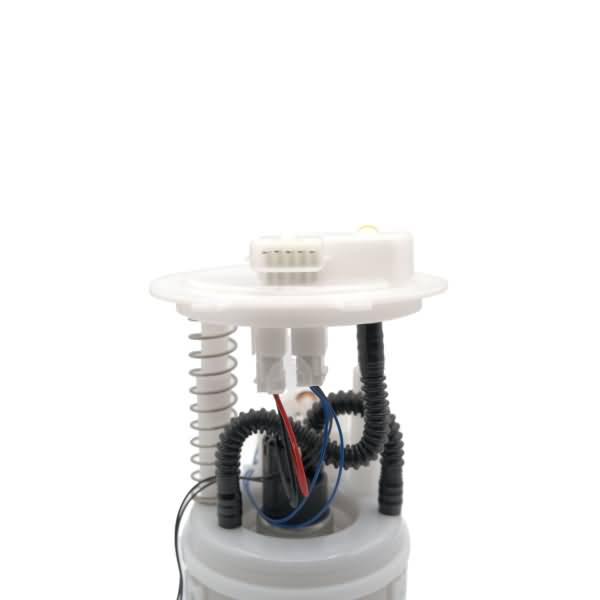

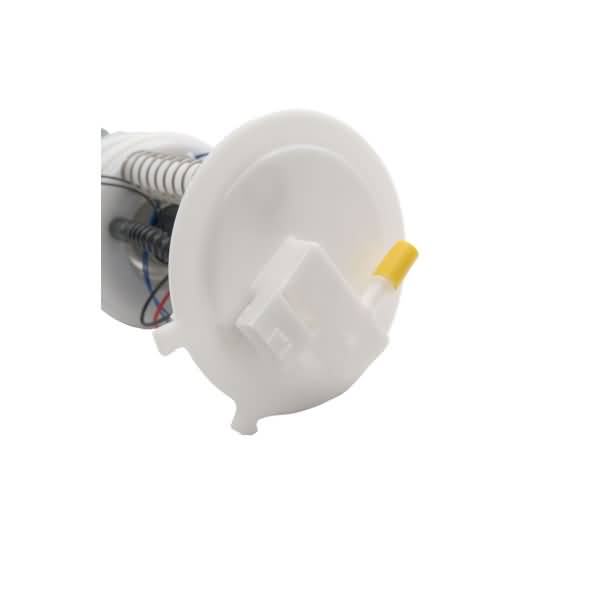

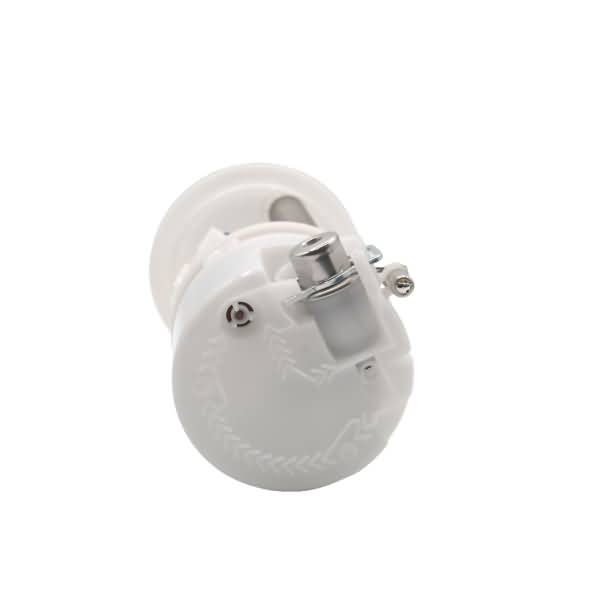

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 5.3 |
Average Flow Rating(GPH) | 19.8 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
Height (in.) | 6.75 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 16 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 40 |
Maximum Pump Pressure (PSI) | 55 |
Minimum Free Flow (GPH) | 30 |
Minimum Pump Pressure (PSI) | 45 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump & Kit |
Product Height (in) | 6.65 |
Product Length (in) | 8.98 |
Product Width (in) | 7.17 |
Regulator Included | Yes |
Resistance Ohms Empty | 282 |
Resistance Ohms Full | 51 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | PIN |
UPC | 00072845162243 |
Voltage | 12V |
Weight (lbs) | 2.18 |
Weight (lbs.) | 2.55 |
Width (in.) | 10 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2013-2019 Nissan Sentra | All Trims | 4 Cyl 1.8L |
