Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F6062A |

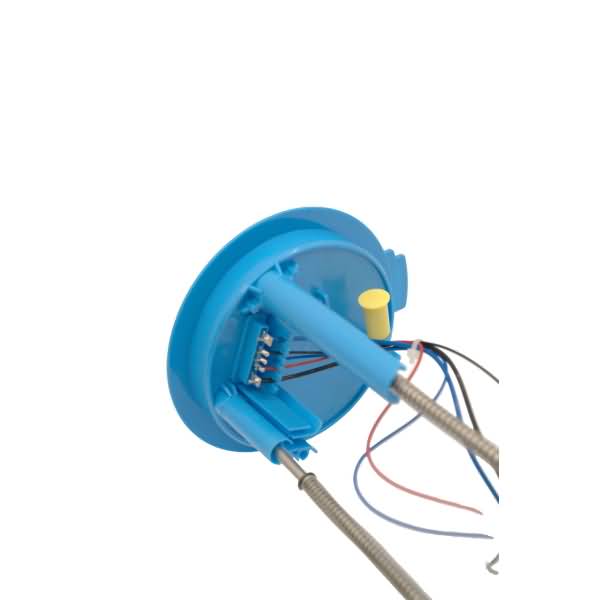

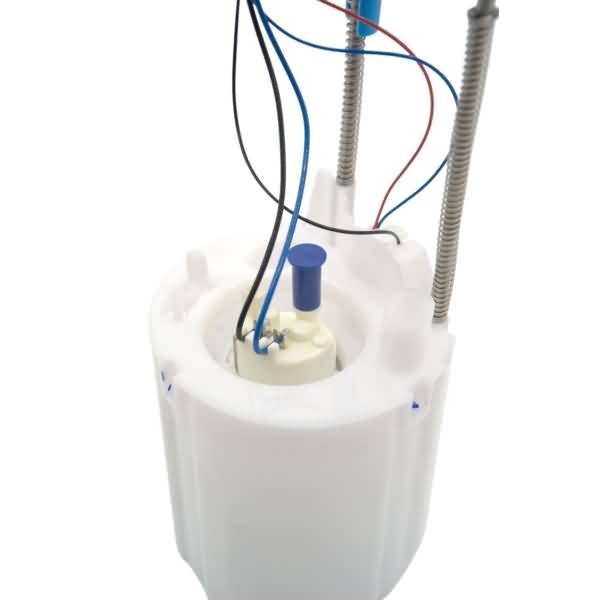

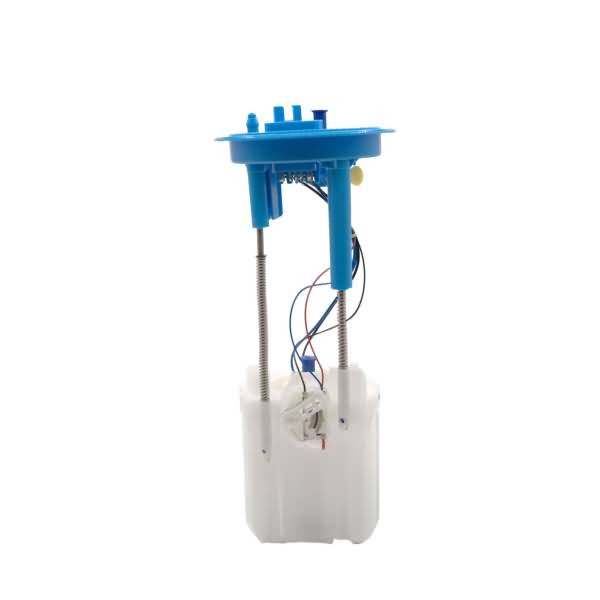

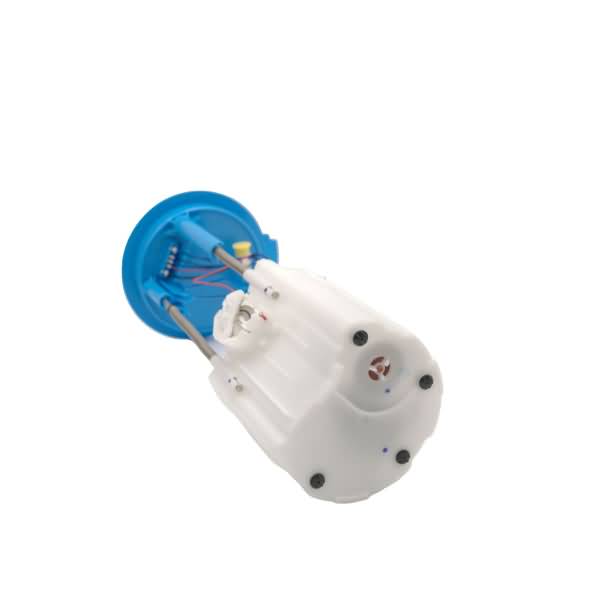

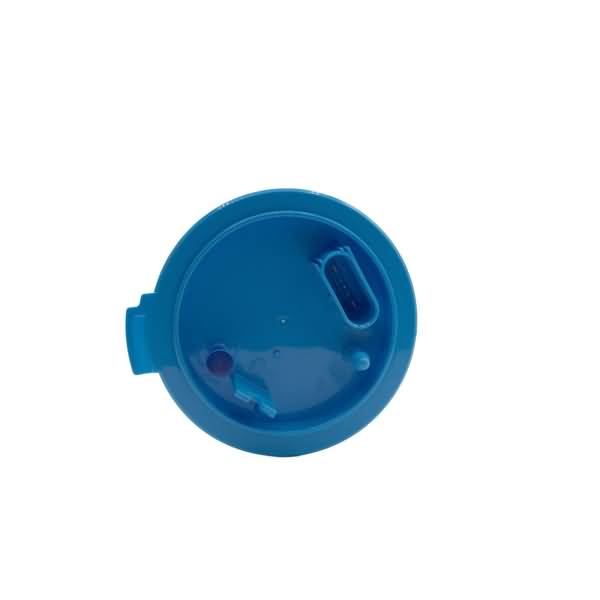

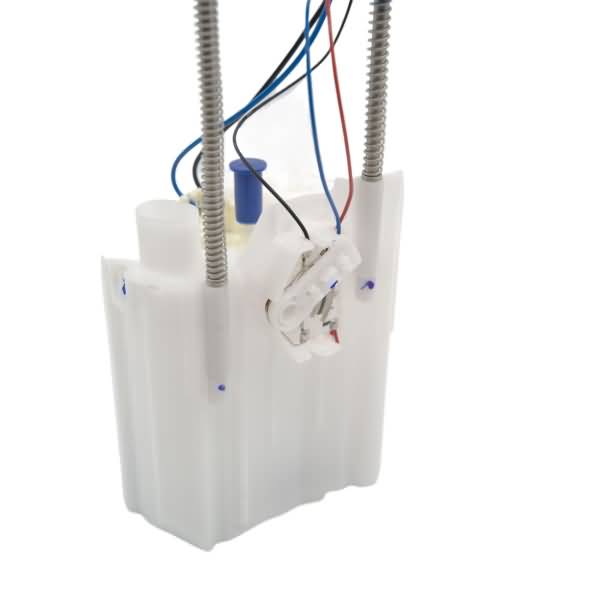

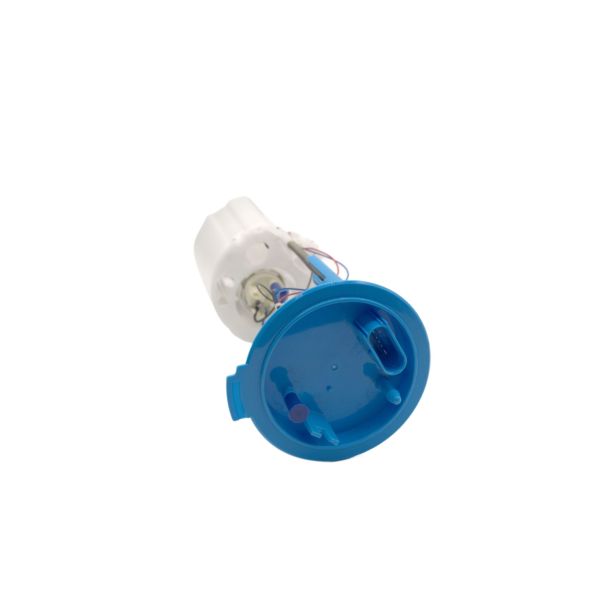

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 11.7 |
Average Flow Rating(GPH) | 56.8 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.335 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 14 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 95 |
Maximum Pump Pressure (PSI) | 140 |
Minimum Free Flow (GPH) | 85 |
Minimum Pump Pressure (PSI) | 130 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 0.311 |
Outlet Type | Quick Connect |

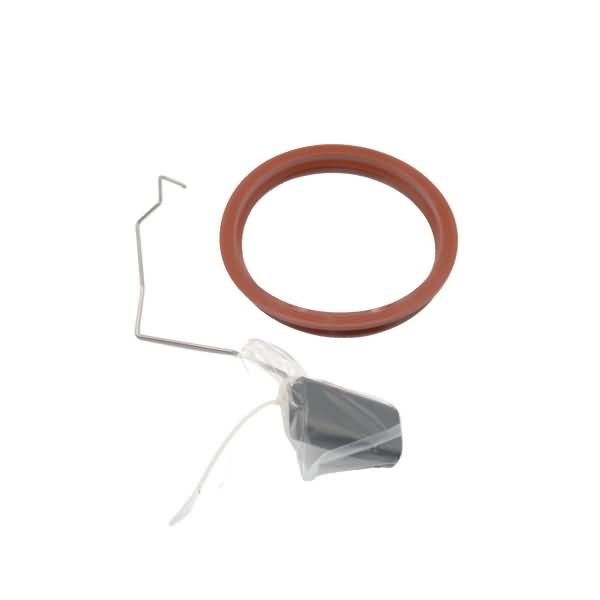

Package Contents | Pump & Kit |
Product Height (in) | 5.51 |
Product Length (in) | 13.27 |
Product Width (in) | 8.86 |
Regulator Included | No |
Resistance Ohms Empty | 52 |
Resistance Ohms Full | 266 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845160621 |
Voltage | 12V |
Weight (lbs) | 2.51 |
Weight (lbs.) | 2.753 |
Width (in.) | 7 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2015 Audi Q3 | All Trims | 4 Cyl 2.0L |
2015 Audi Q3 Quattro | All Trims | 4 Cyl 2.0L |
2009-2017 Volkswagen Tiguan | All Trims | 4 Cyl 2.0L |
2018 Volkswagen Tiguan Limited | All Trims | 4 Cyl 2.0L |
