Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F5041A |

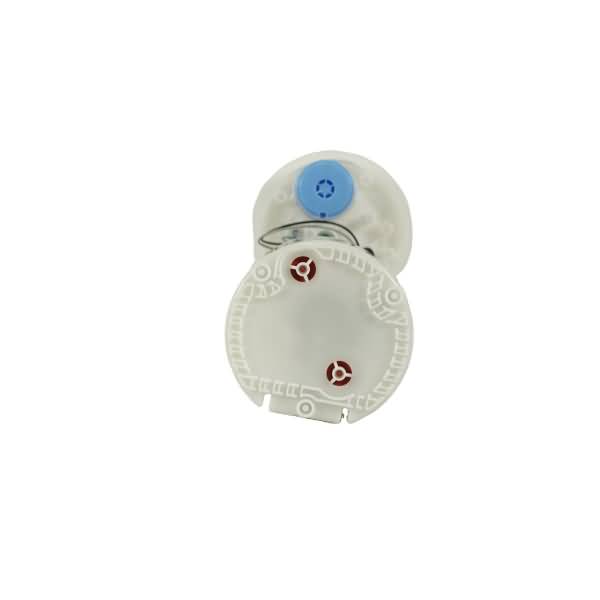

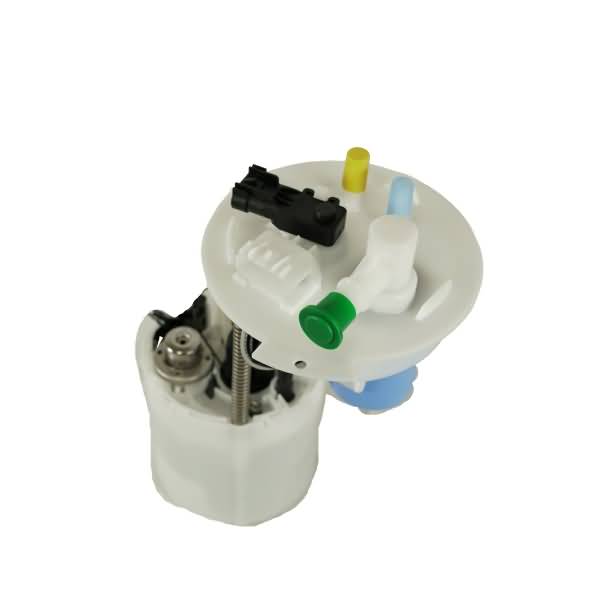

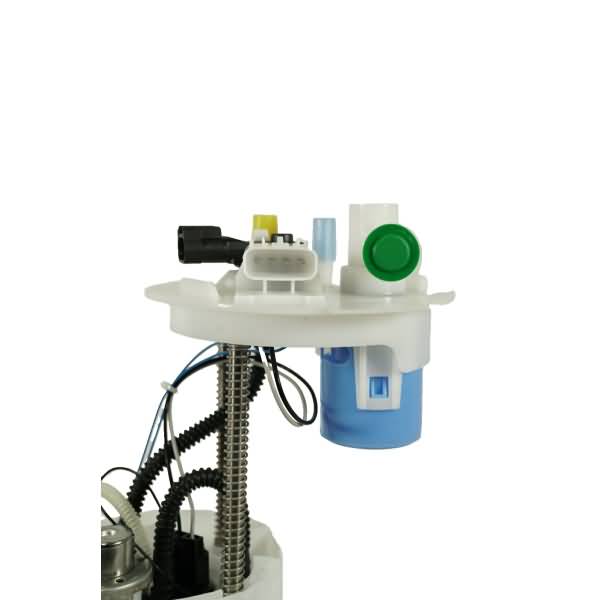

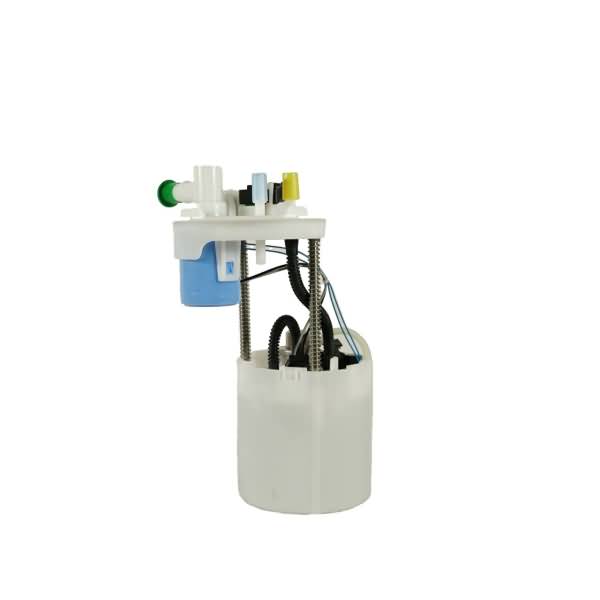

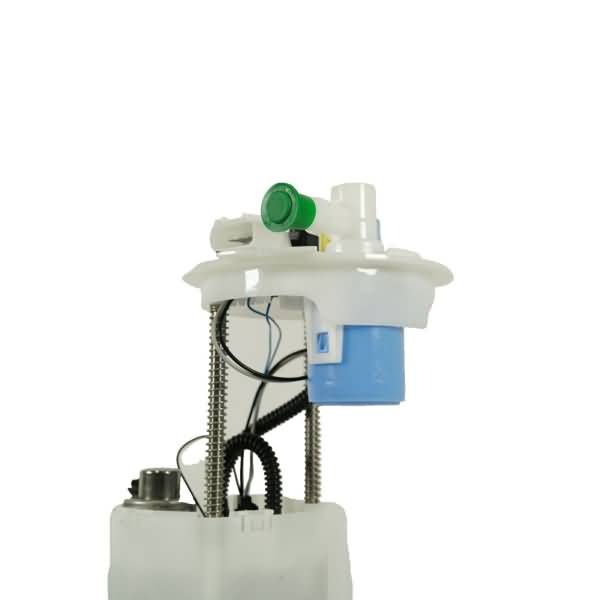

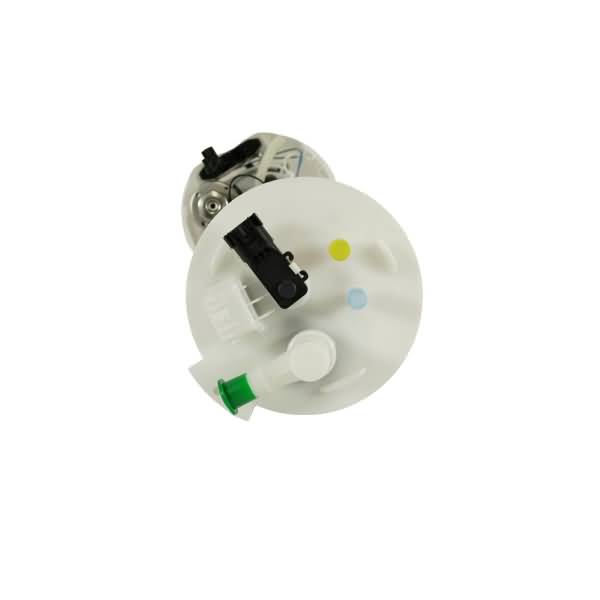

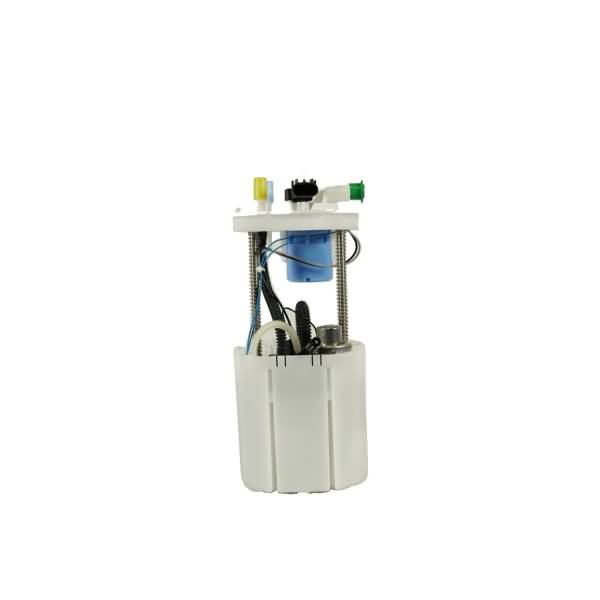

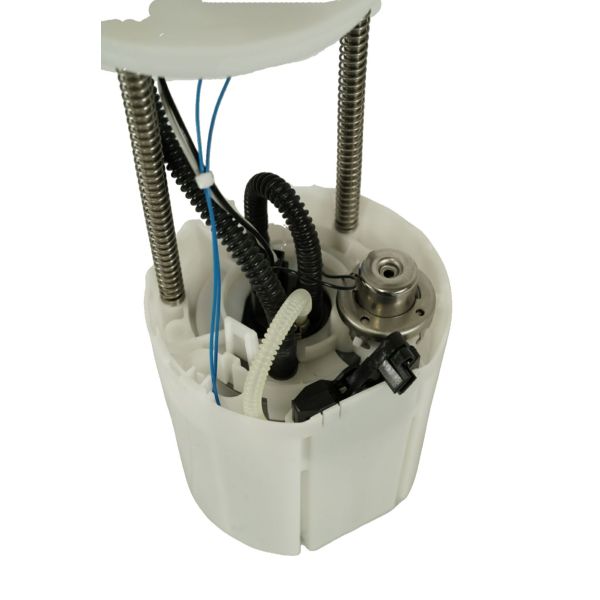

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 14.5 |
Average Flow Rating(GPH) | 35.66 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 8.5 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 14 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 80 |
Maximum Pump Pressure (PSI) | 90 |
Minimum Free Flow (GPH) | 70 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |

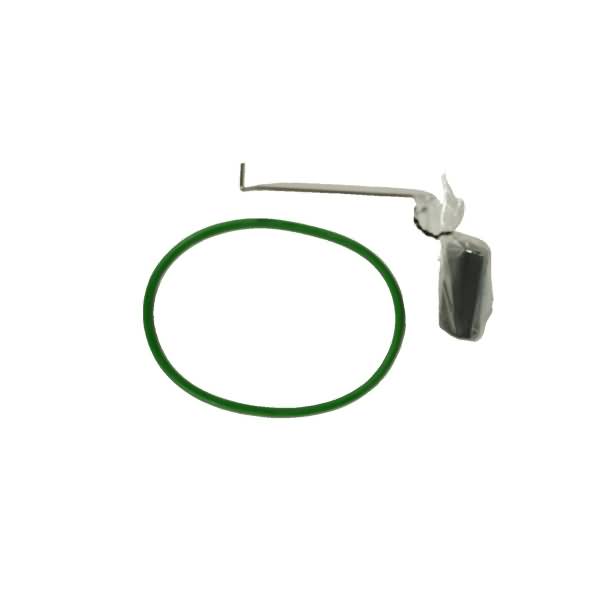

Package Contents | Pump & Kit |
Product Height (in) | 6.54 |
Product Length (in) | 11.65 |
Product Width (in) | 11.54 |
Regulator Included | Yes |
Resistance Ohms Empty | 250 |
Resistance Ohms Full | 40 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845150417 |
Voltage | 12V |
Weight (lbs) | 3.09 |
Weight (lbs.) | 3.8 |
Width (in.) | 7 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2012-2016 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
2012 Buick Regal | All Trims | 4 Cyl 2.4L |
2012-2013 Buick Regal | All Trims | 4 Cyl 2.0L |
2013 Cadillac XTS | All Trims | 6 Cyl 3.6L |
2013 Chevrolet Malibu | All Trims | 4 Cyl 2.0L |
2013 Chevrolet Malibu | All Trims | 4 Cyl 2.5L |
