Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4935A |

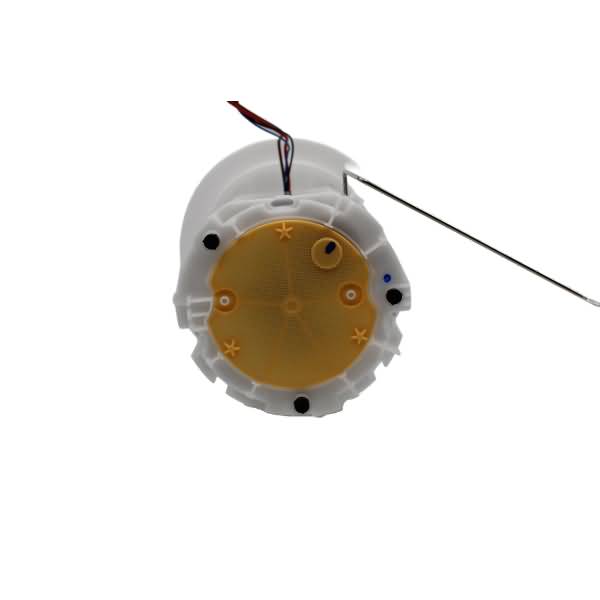

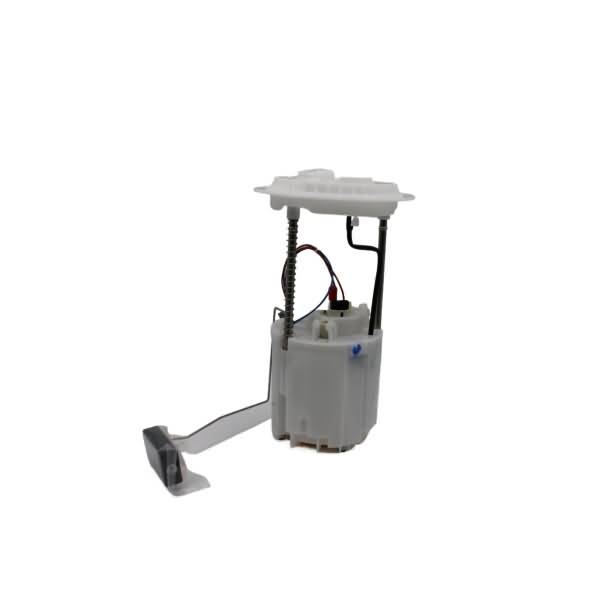

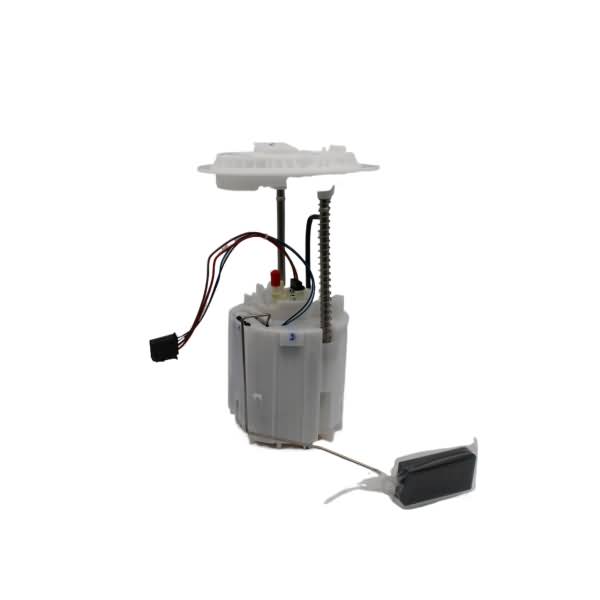

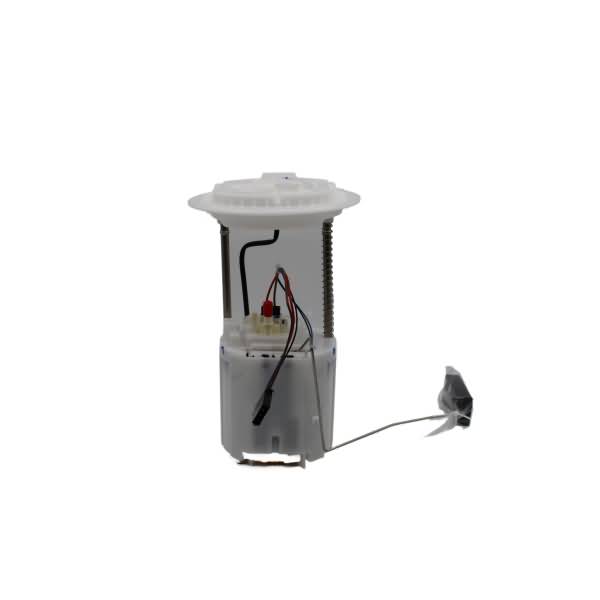

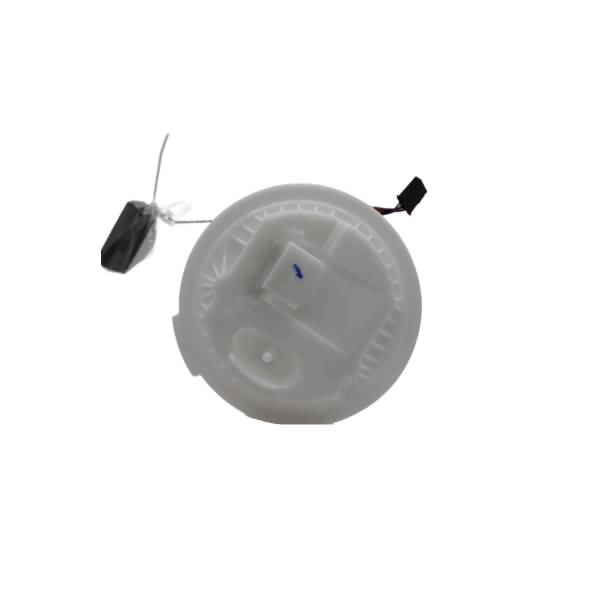

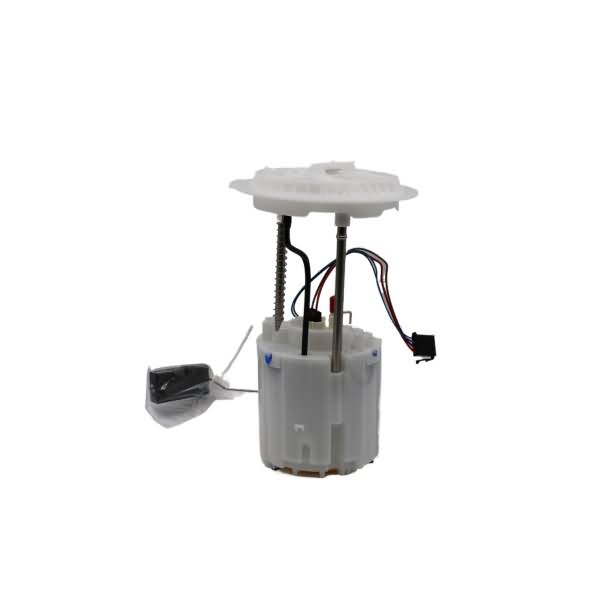

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 10 |
Average Flow Rating(GPH) | 48.87 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

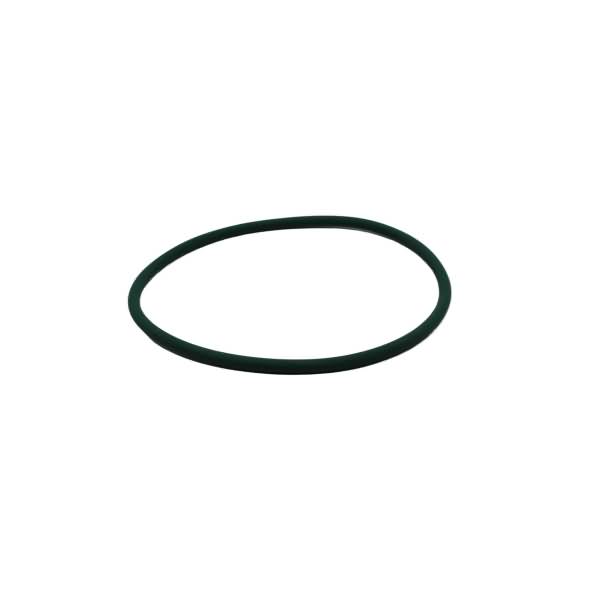

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.295 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 145 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Product Height (in) | 6.3 |
Product Length (in) | 10.83 |
Product Width (in) | 10.79 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 990 |
Resistance Ohms Full | 230 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845149350 |
Voltage | 12V |
Weight (lbs) | 2.73 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 Mercedes-Benz GL450 | All Trims | 8 Cyl 4.7L |
2008-2010 Mercedes-Benz GL550 | All Trims | 8 Cyl 5.5L |
2006-2011 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L |
2008-2010 Mercedes-Benz ML550 | All Trims | 8 Cyl 5.5L |
